FATHOM BSW225

2-1/8” wide LED luminaire with flush lens, outdoor locations, remote driver

CutsheetExplore Fathom

Downloads

Features

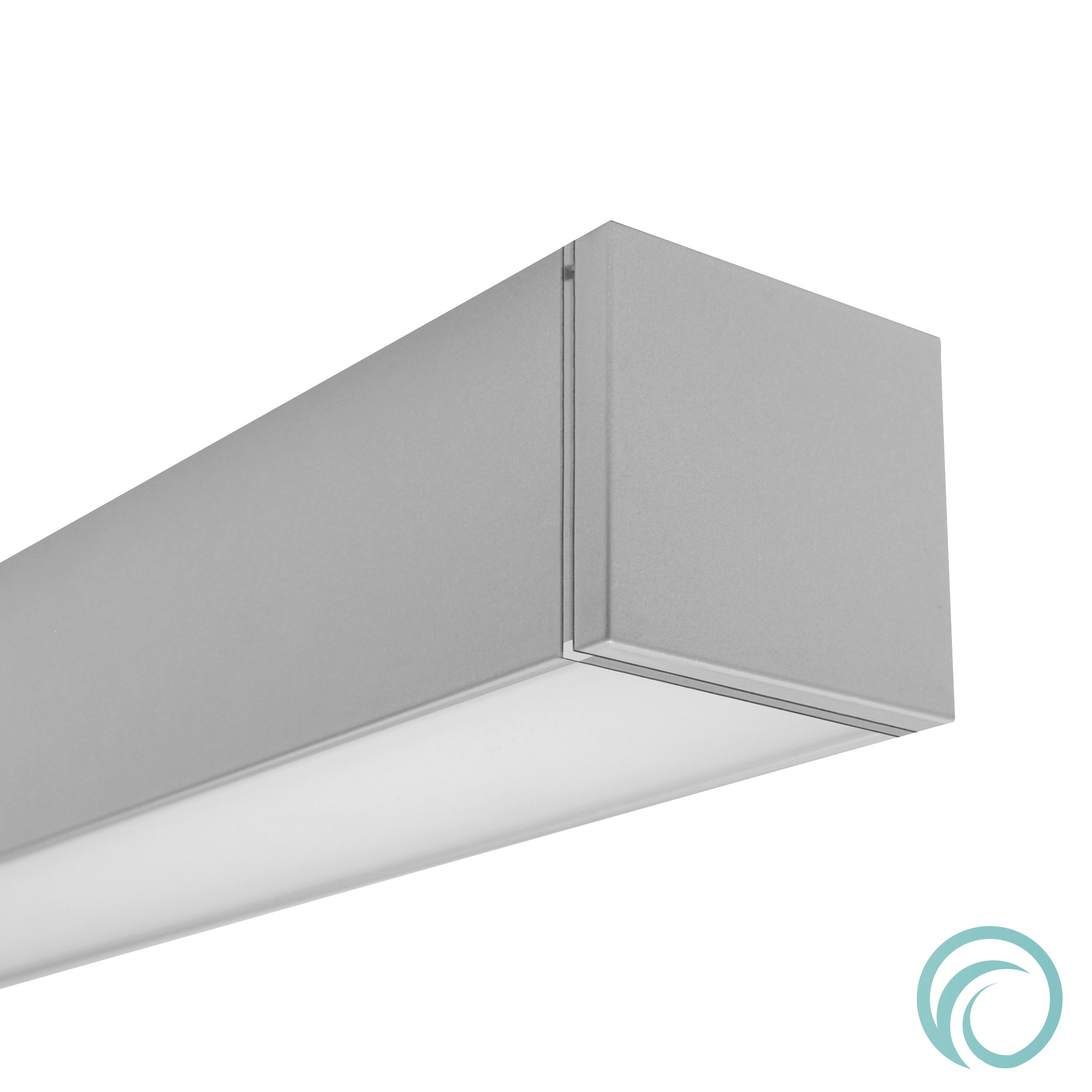

The BSW225 is a linear LED luminaire for outdoor applications.  The surface or wall mount 2-1/8” wide by 2” tall extrusion is fitted with a flush, frosted lens and machined aluminum end caps.  Each fixture is paired with a remote mounted, wet location driver and housing.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 340 | R: 680 | H: 895
  • Watts/ft.: L: 4.0 | R: 8.0 | H: 10.5
  • Luminaire Lumens: L: 1362 | R: 2723 | H: 3574
  • Efficacy: L: 85 | R: 85 | H: 85

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available for surface or wall mounting in nominal lengths of 2’-8’ single fixtures and continuous runs

Fixtures wired with 10’ low voltage leads and provided with a Ø7/8 hole for back feeding

Included remote 120-277V wet location driver offered with 0-10V dimming or non-dim and surface mount aluminum enclosure

Standard outputs are 340, 680 and 895 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 24-5/8”
  • 3: 36-5/8”
  • 4: 48-5/8”
  • 5: 60-5/8”
  • 6: 72-5/8”
  • 7: 84-5/8”
  • 8: 96-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K - 80+ CRI
  • 30: 3000K - 80+ CRI
  • 35: 3500K - 80+ CRI
  • 40: 4000K - 80+ CRI

Driver

[remote]

  • RN: non-dimming
  • RD: 0-10V dimming, 5%

Each fixture includes a remote driver matched for fixture length and light output

Mounting

  • SM: surface mount
  • WD: wall mount - direct

Light Output

(lumens per foot)

  • L: low – 340
  • R: regular – 680
  • H: high – 895

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Mounting Options

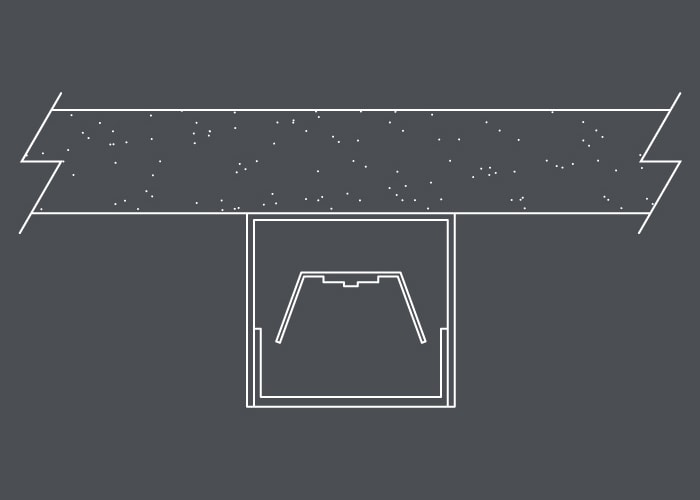

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing
  • 10’ low voltage leads exit out the rear at an end

Ordering Code: SM

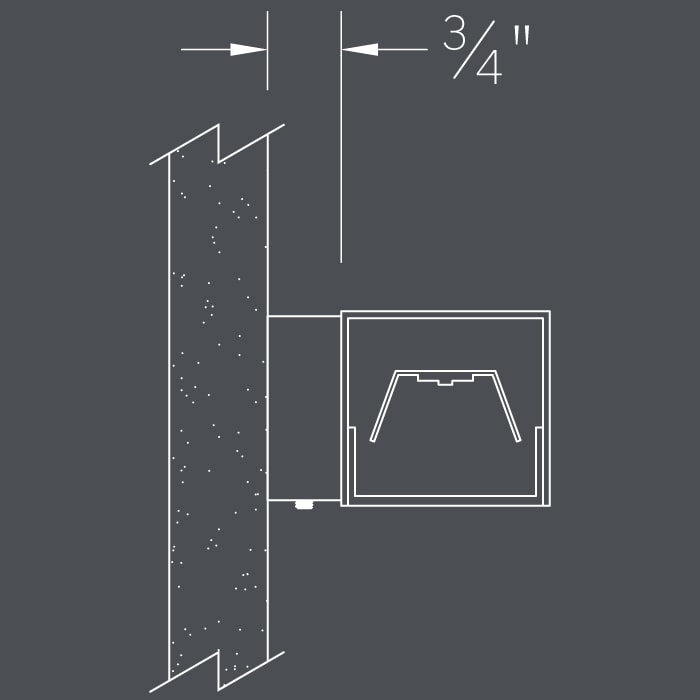

Wall Mount - Direct Orientation
  • 1-7/8” H x 4-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface
  • 10’ low voltage leads exit out the side through a mounting bracket

Ordering Code: WD
