BSS720 direct orientation

Mullion BSS720

1-5/8” tall mullion mount asymmetric LED luminaire, remote driver

CutsheetExplore Mullion

Downloads

Features

The BSS720 is a linear LED luminaire with asymmetric optics for mullion or wall mount applications. The remote driven 1-5/8” tall by 2-1/4” wide extruded aluminum housing can be mounted direct or indirect positions. Specific reflector/lens optic components are provided for each orientation.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Lens Options

BSS720 direct orientation

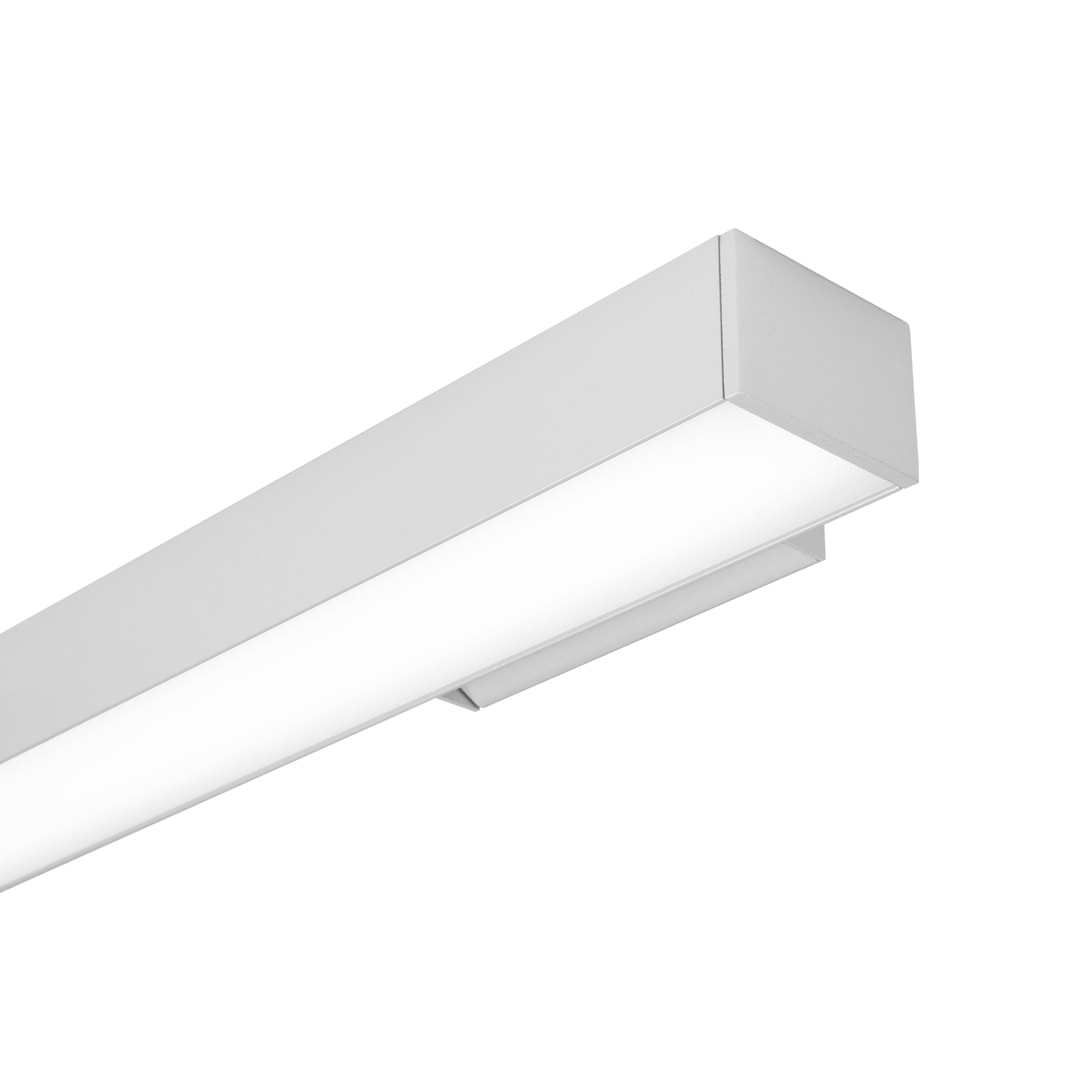

Direct Orientation

Ordering Code: WD

BSS720 indirect orientation

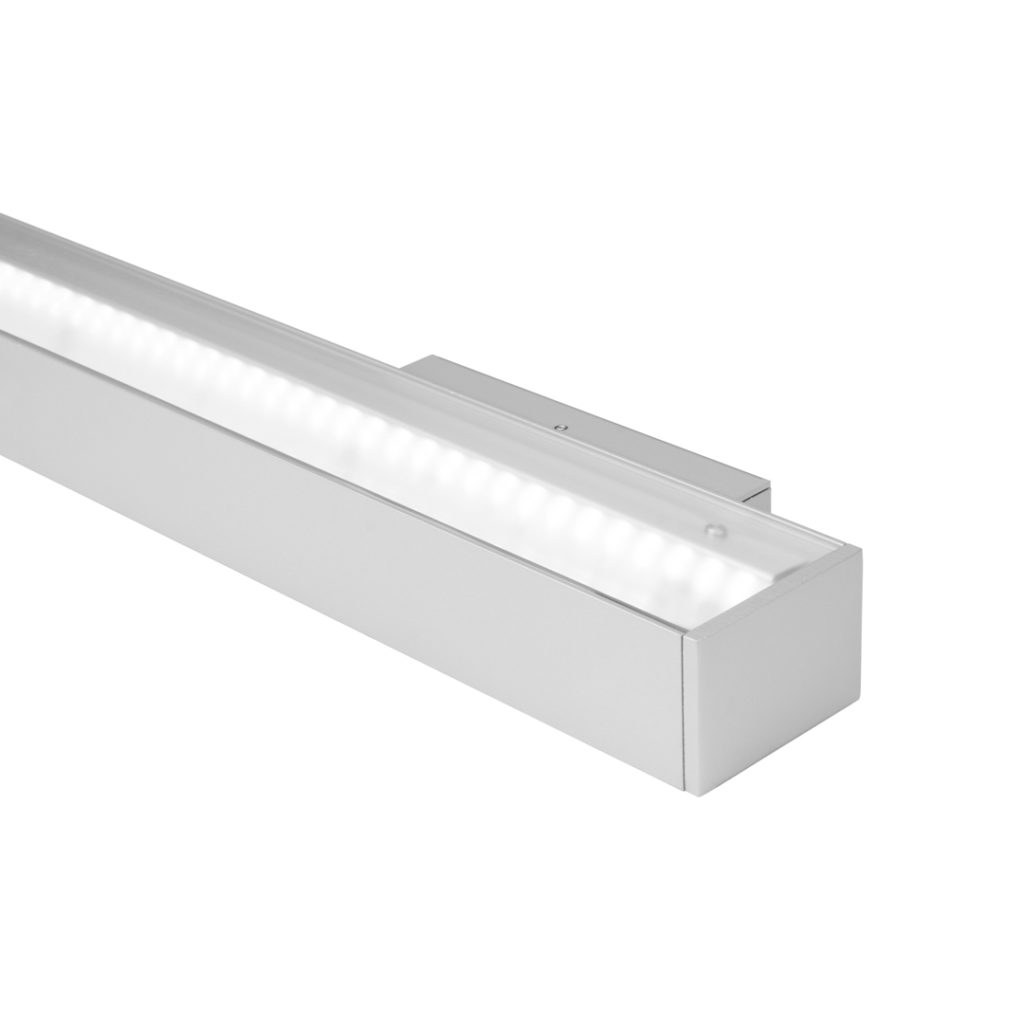

Indirect Orientation

Ordering Code: WI

Specifications

Fixture constructed of an extruded aluminum housing, extruded acrylic lens and machined aluminum end caps

Fixture configured with brackets for direct or indirect mounting to mullions or other vertical surfaces

Direct oriented fixtures feature an asymmetric reflector and diffuse acrylic lens

Indirect oriented fixtures feature a multi-piece reflector system and acrylic lens

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Fixtures wired with 10’ low voltage leads

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard light outputs range from 525–1290 lumens per foot, depending on fixture orientation

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 23: 22-5/8"
  • 34: 33-5/8"
  • 45: 44-5/8"
  • 56: 55-5/8"
  • 67: 66-5/8"
  • 78: 77-5/8"
  • 89: 88-5/8”
  • RUN: Specify run length to the nearest one foot. Factory will configure using the least quantity of fixtures as close to the desired run length as possible without exceeding the length. Run to be confirmed with a shop drawing.

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 27: 2700K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

Note: Each fixture includes a remote driver matched for fixture length and light output.

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • WD: wall mount – direct
  • WI: wall mount – indirect

Light Output

(lumens per foot w/ mount option WI)

  • L: low – 630
  • R: regular – 850
  • H: high – 1290
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Options

  • 1: asymmetric

Sections

Direct

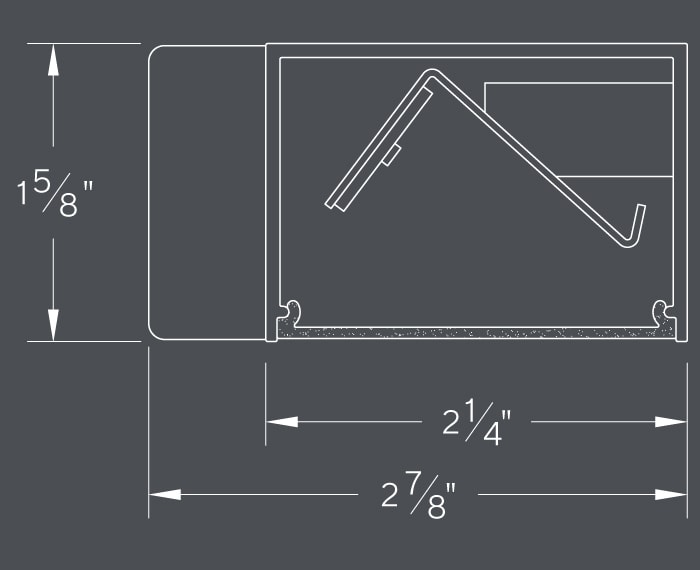

BSS720 direct section

Indirect

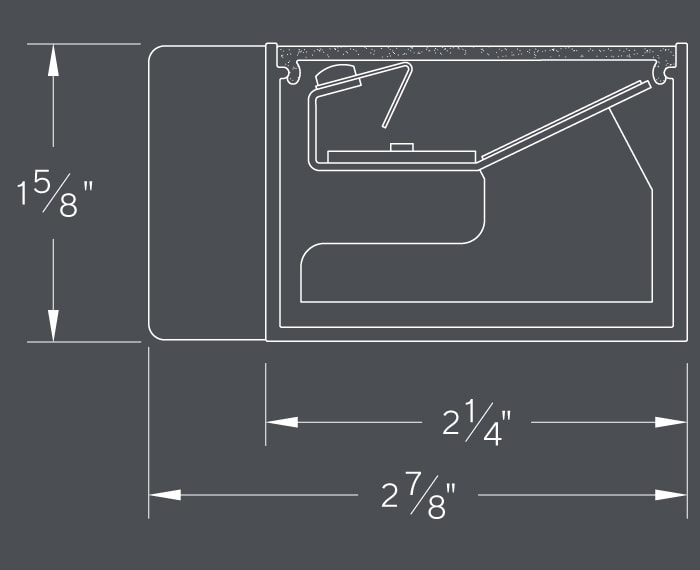

BSS720 indirect section

Mounting Options

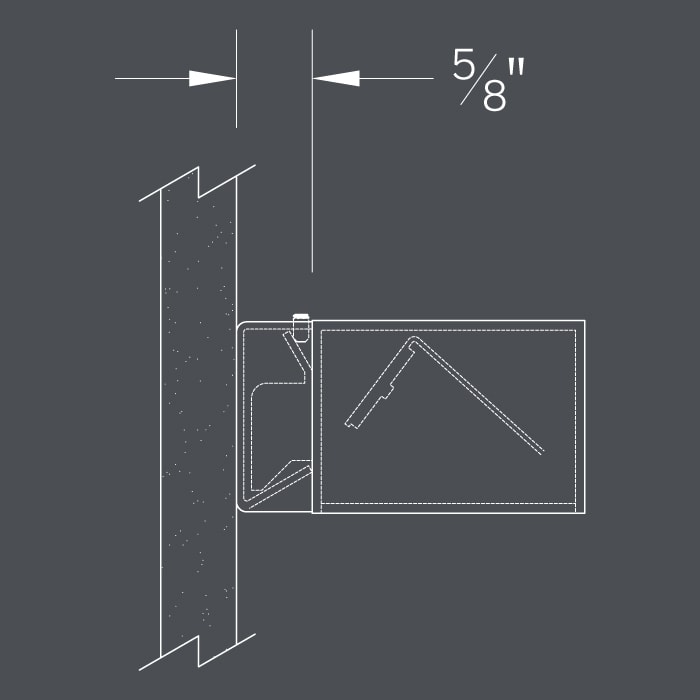

BSS720 wall/mullion mount - direct orientation
Wall/Mullion Mount – Direct Orientation

Mounting option includes:

  • 1-9/16” H x 4-3/4” W bracket projects the fixture housing 5/8” from the mounting surface
  • Bracket finish matches fixture finish, or ESS for satin anodize (SA) housing

Ordering Code: WD

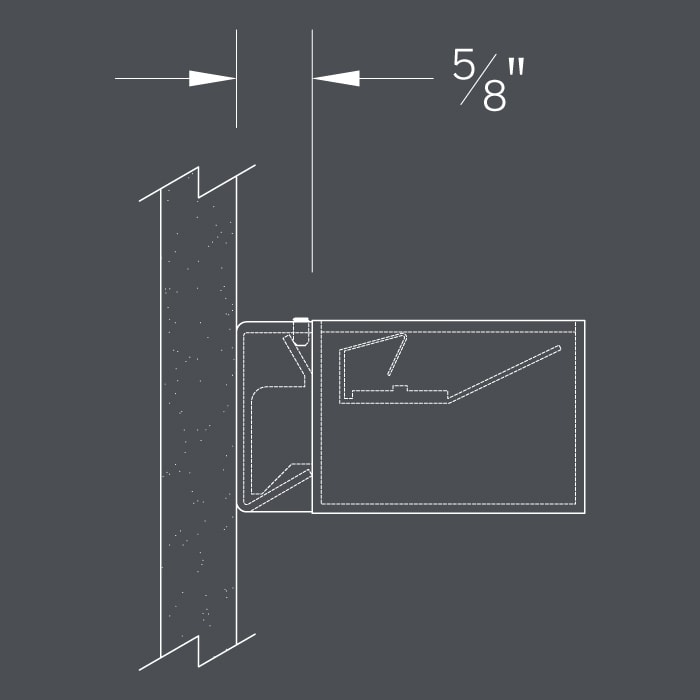

BSS720 wall/mullion mount - indirect orientation
Wall/Mullion Mount – Indirect Orientation

Mounting option includes:

  • 1-9/16” H x 4-3/4” W bracket projects the fixture housing 5/8” from the mounting surface
  • Bracket finish matches fixture finish, or ESS for satin anodize (SA) housing

Ordering Code: WI
