Swell hcb15

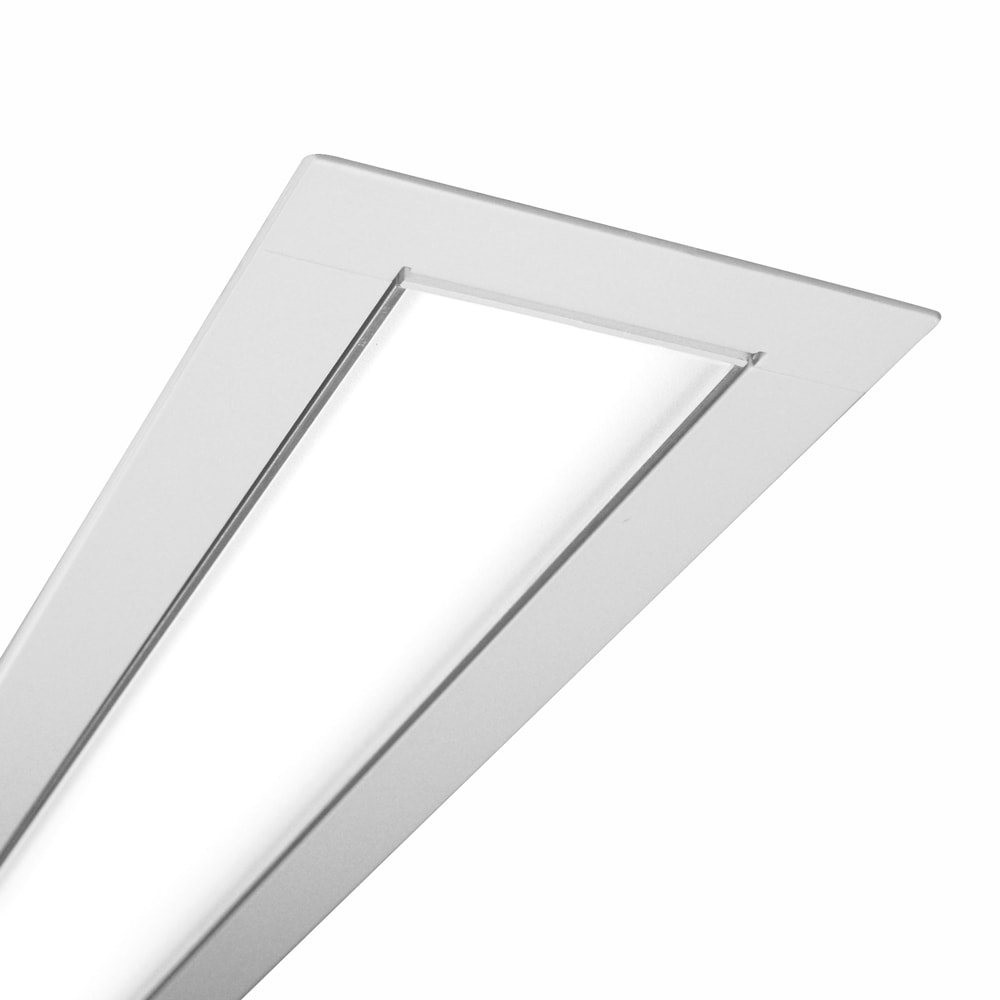

2” wide aperture recessed LED luminaire, Illuminated by BIOS®

CutsheetExplore Swell



The Swell Series HCB15 is a linear recessed LED luminaire tailored for health-centric lighting installations. The 2” wide aperture is available with multiple optic options and constructed for installation in common grid ceilings or in hard walls and ceilings with flange and trimless variants. The HCB15 is Controls Capable, being offered with a variety of integrated control options.

The HCB15 fixture is embedded with BIOS SkyBlue® circadian solutions to produce the healthy “blue sky” light signal needed to stimulate human circadian biology. This specific light wavelength communicates directly with human biology through a non-visual photoreceptor to regulate circadian rhythms, providing healthier sleep patterns and ultimately, better health.


  • Nominal Length: 44”
  • Lens: Flush
  • Output: R: regular | H: high
  • Lumens/ft.: R: 615 | H: 820
  • Watts/ft.: R: 9.7 | H: 13.4
  • Luminaire Lumens: R: 2274 | H: 3032
  • Efficacy (LPW): R: 63 | H: 61

Note: All data reflects fixture with BIOS Static Spectrum 3500K LEDs.

Lens Options

Frosted Flush Lens

2" W frosted acrylic extrusion

Ordering Code: F1

Frosted Drop Lens

2" W x 1" H frosted acrylic extrusion with matching acrylic end caps

Ordering Code: F2

Wall Wash

Acrylic extrusion with optically engineered Fresnel prisms for wall wash applications. Optimized for placement 18”–24” from a wall surface. Uniformity ratio as low as 4:1.

Ordering Code: WW


2” W Flat blade louver with 5/8” blades at 7/8” spacing, formed from sheet steel. Finish is Environmental Satin Silver (consult factory for alternate finishes). Supplied with light diffusion film.

Ordering Code: L


Fixture housing and trim elements made of extruded aluminum and 16 ga. sheet aluminum and steel parts.

Model options available for typical 9/16” and 15/16” grid ceilings or hard walls/ceilings with flange and trimless mounting (wall installation requires accessory mounting brackets).

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.).

Optic options include a frosted flush or 1” drop acrylic lens and parabolic louver.

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (consult factory regarding other dimming protocols).

Integral 120-277V emergency battery backup available for 44” or 88” fixtures (consult factory for all other lengths/drivers, supplied with remote test switch/indicator plate assembly).

Standard light outputs are 615 and 820 lumens per foot with the flush lens option.

BIOS LEDs have 80+ CRI, R9 90+ and are available in static 3000K, 3500K, 4000K and two dynamic options in 2700-3000K, 2700-3500K and 2700-4000K.

Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers.

Life: 50,000 hours L70.

Chicago plenum rated option available.

Nominal weight is 2.8 lbs. per foot.

Limited five year warranty.

UL and C-UL listed for dry and damp locations.

IBEW manufactured and assembled.

Made in U.S.A.

Product Data

Nominal Fixture Length

Actual dimension dependent on mounting option and run configuration.

  • 22: 22"
  • 24: 24" (T1 or T2 w/ SN ONLY)
  • 33: 33"
  • 44: 44"
  • 48: 48" (T1 or T2 w/ SN ONLY)
  • 55: 55"
  • 66: 66"
  • 77: 77"
  • 88: 88"

Correlated Color Temperature

  • BIOS Static | BS30: 3000K
  • BIOS Static | BS35: 3500K
  • BIOS Static | BS40: 4000K
  • BIOS Dynamic | BD30: 2700K-3000K
  • BIOS Dynamic | BD35: 2700K-3500K
  • BIOS Dynamic | BD40: 2700K-4000K
  • BIOS Dynamic TW | BDTW30: 2700K-3000K
  • BIOS Dynamic TW | BDTW35: 2700K-3500K
  • BIOS Dynamic TW | BDTW40: 2700K-4000K


  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY) *
  • DLV: electronic low voltage, 1%, (120V ONLY) *
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1% *
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1% *
  • ESD: eldoLED SOLOdrive DALI, 0.1% *

* Consult factory for dimming protocols other than 0-10V.


  • T1: T-grid 9/16"
  • T2: T-grid 15/16"
  • FT: Flange trim
  • TL: Trimless
  • CF: consult factory for custom mounting

Light Output

(lumens per foot w/optic F1)

  • R: regular – 615
  • H: high – 820
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator


  • F1: frosted flush
  • F2: frosted drop
  • WW: wall wash
  • L: louver


  • CP: Chicago plenum
  • ED: emergency driver (44" or 88" fixtures)
  • WS1A: Wattstopper FS-205, 100%-0% *
  • WS1B: Wattstopper FS-205, 100%-50% *
  • EN1: Enlighted FS-D22 *
  • ES4: Philips EasySense SNS211 MC *
  • CA1: Casambi CBU-A2D *
  • NL1: nLight RES7 *
  • NL2: nLight RIO *
  • LA1: Lutron Athena A-WN-D01-RF-WH *
  • LA2: Lutron Athena A-WN-D01-OCC-WH *
  • CF: consult factory for custom finish options

* See Integrated Controls section for driver compatibility information.


T1: T-grid 9/16”
T2: T-grid 15/16”
(flush lens option shown)

HCB15 t-grid 9/16" and t-grid 15/16" section illustration

FT: Flange
(drop lens option shown)

HCB15 flange section

TL: Trimless
(flush lens option shown)

HCB15 trimless section

Mounting Options

HCB15 t-grid ceiling 9/16" and t-grid ceiling 15/16" mount
  • 16 ga. brackets locate housing onto T-bar and allow 5/8” of vertical adjustment to accommodate various height T-bar.
  • Housing secured with support wires (by others).
  • Exposed flange trim in matte white finish.

Ordering Code: T1 and T2

HCB15 flange - drywall ceiling or wall mount
Flange – Drywall Ceiling or Wall
  • For wall installations or special ceiling conditions, order accessory mounting brackets 420-WB.
  • ¾” wide extruded aluminum trim flange in matte white finish.
  • Housing secured with support wires or ¼-20 threaded rod (by others).

Ordering Code: FT

HCB15 trimless - drywall ceiling or wall mount
Trimless – Drywall Ceiling or Wall
  • Installs after 1/2” or 5/8” drywall.
  • Housing secured with self-tapping drywall screws (by others) into blocking as required.

Ordering Code: TL
