BODHI DROP LENS BSS205

1-25/32” wide LED luminaire with drop lens

CutsheetExplore Bodhi

Downloads

Features

The BSS205 is a linear LED luminaire for general lighting applications. The 1-25/32” wide extruded aluminum housing is capped by a 1” tall, rectangular or rounded profile frosted acrylic lens that produces a wide distribution of diffuse illumination from 90+CRI LEDS. 1/4” thick machined aluminum end caps finish off the fixture ends. The BSS205 is Controls Capable, being offered with a variety of integrated control options.

Available for QuickShip.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular
  • Lumens/ft.: L: 600 | R: 800
  • Watts/ft.: L: 5.7 | R: 7.8
  • Luminaire Lumens: L: 2265 | R: 2942
  • Efficacy (LPW): L: 108 | R: 101

Note: All data reflects fixtures with 3500K LEDs and rectangular profile and solid ends

Lens Options

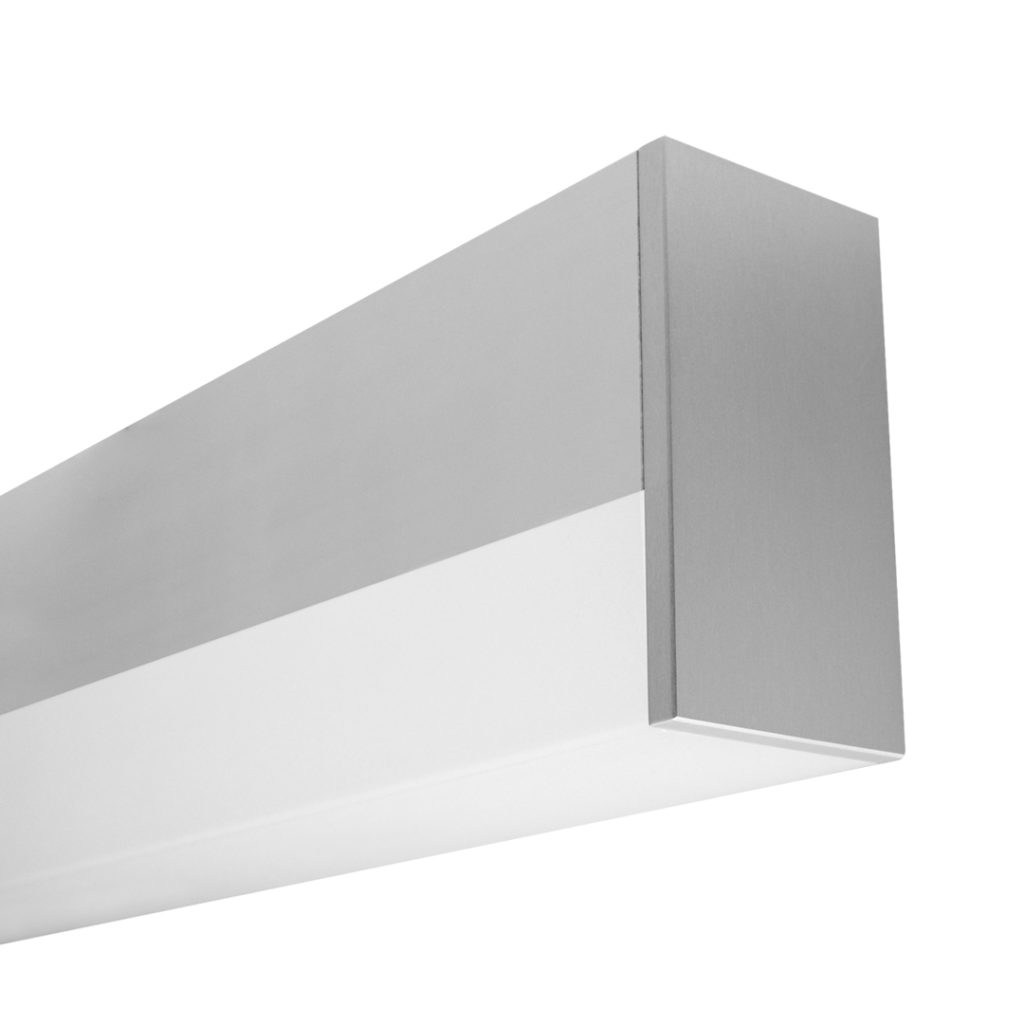

BSS205 photo with rectangular solid end
Rectangular Solid End

Rectangular profile with full height aluminum end cap

Ordering Code: A

BSS205 photo with rectangular luminous end
Rectangular Luminous End

Rectangular profile with aluminum end cap and frosted acrylic lens end

Ordering Code: B

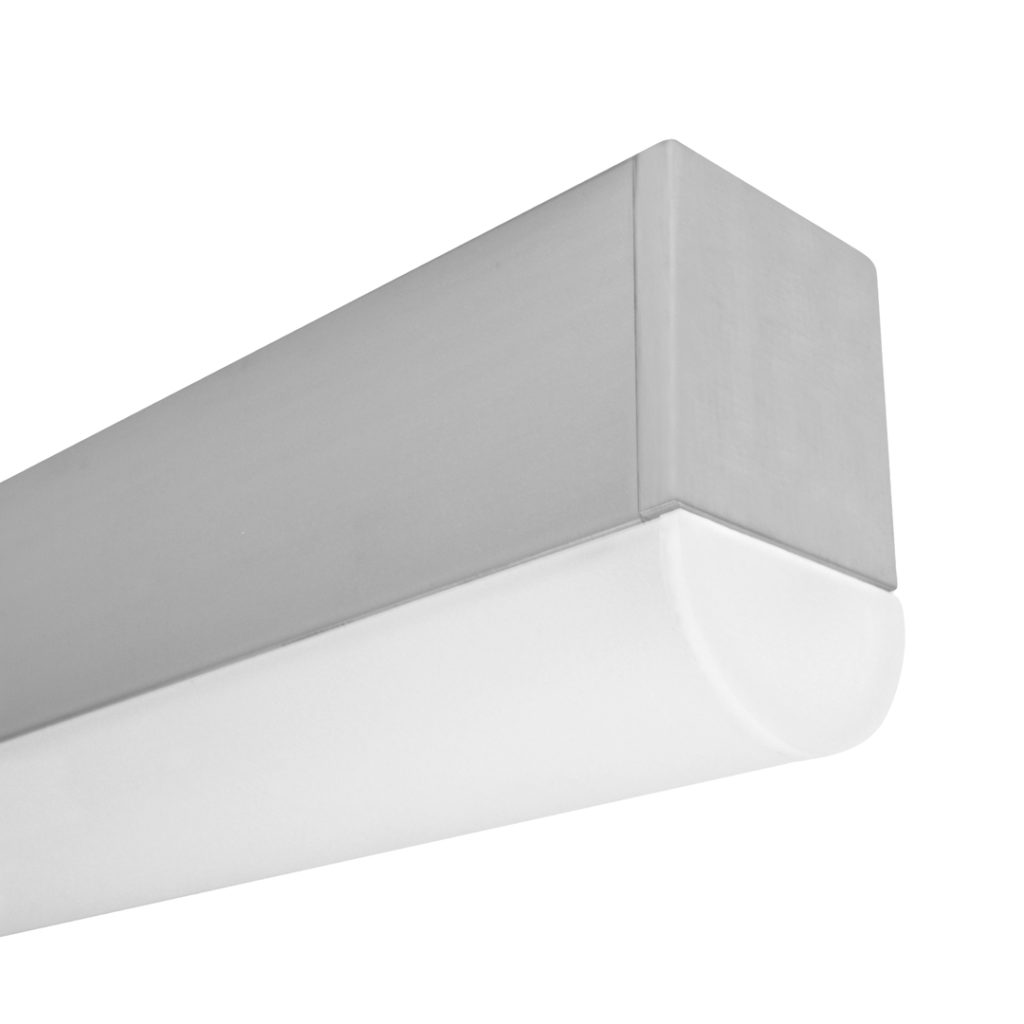

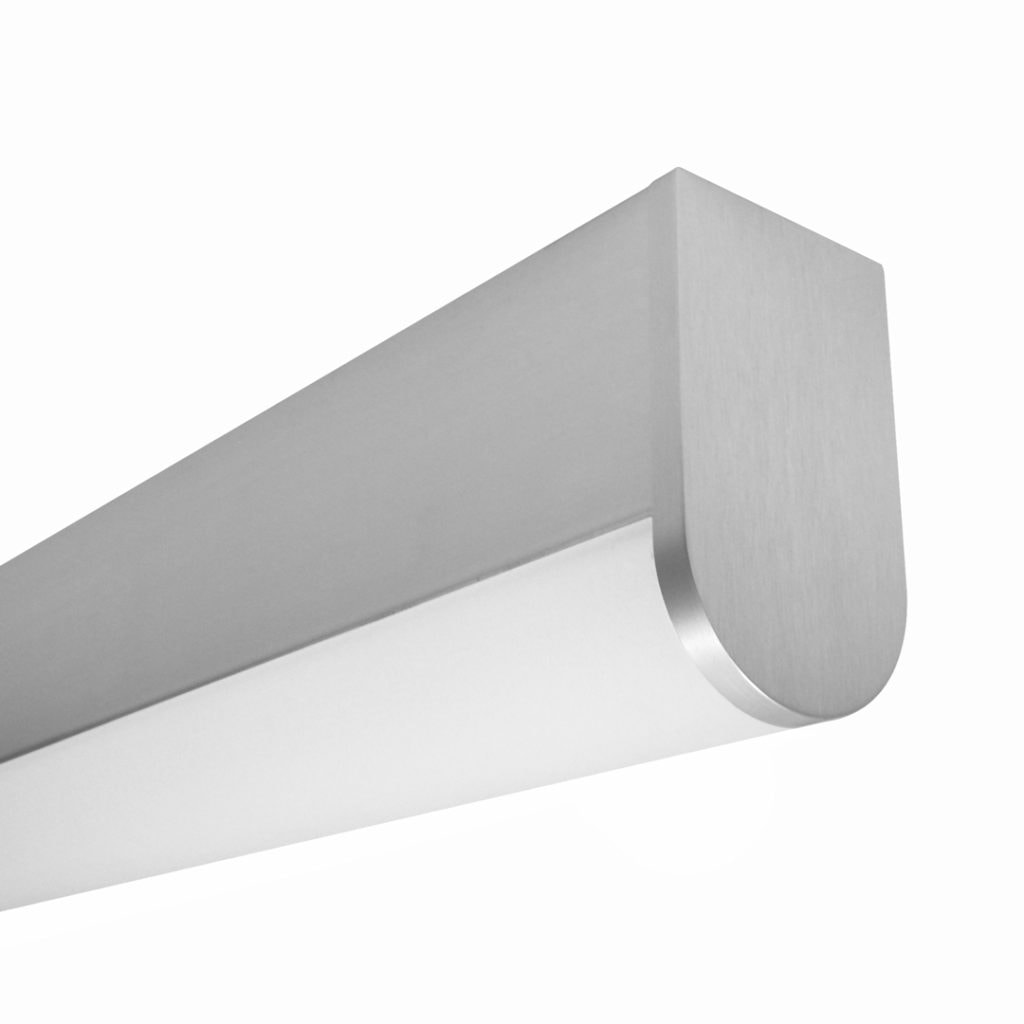

BSS205 photo with rounded solid end
Rounded Solid End

Rounded profile with full height aluminum end cap

Ordering Code: C

BSS205 photo with rounded luminous end
Rounded Luminous End

Rounded profile with aluminum end cap and frosted acrylic lens end

Ordering Code: D

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps.

Model variations offered in rectangular or rounded profiles for surface, wall mount and cable suspended mounting with solid or luminous end options.

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes).

Satin anodize finish also available (may require additional lead time).

Available in nominal 2’–8’ single fixtures and continuous runs.

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.).

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).

Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).

Standard light outputs are 600 or 800 lumens per foot.

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.

Life: 50,000 hours L70.

Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers (FOR RECTANGULAR PROFILE ONLY).

Limited five year warranty.

UL and C-UL listed for dry and damp locations.

IBEW manufactured and assembled.

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-5/8"
  • 3: 33-5/8"
  • 4: 44-5/8"
  • 5: 55-5/8"
  • 6: 66-5/8"
  • 7: 77-5/8"
  • 8: 88-5/8"

Actual dimension dependent on run configuration and sensor option.

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • SM: surface mount
  • WD: wall mount – direct
  • WI: wall mount – indirect
  • C4: cable mount 4' cable length
  • C8: cable mount 8' cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 600
  • R: regular – 800
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: rectangular profile – solid end
  • B: rectangular profile – luminous end
  • C: rounded profile – solid end
  • D: rounded profile – luminous end

Options

  • ED: emergency driver (4' nom. non-dim or 0-10V only)
  • WS1A: Wattstopper FS-205, 100%-0% *
  • WS1B: Wattstopper FS-205, 100%-50% *
  • EN1: Enlighted FS-D22 *
  • ES4: Philips EasySense SNS211 MC *
  • CA1: Casambi CBU-A2D *
  • NL1: nLight RES7 *
  • NL2: nLight RIO *
  • LA1: Lutron Athena A-WN-D01-RF-WH *
  • LA2: Lutron Athena A-WN-D01-OCC-WH *

* See Integrated Controls section for driver compatibility information.

Sections

BSS205 section with rectangular profile
BSS205 section with rounded profile

Mounting Options

BSS205 surface mount
Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

BSS205 wall mount - direct orientation
Wall Mount - Direct Orientation
  • 1-7/8” H x 4-1/2” W sheet aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WD

BSS205 wall mount - indirect orientation
Wall Mount - Indirect Orientation
  • 1-7/8” H x 4-1/2” W sheet aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WI

BSS205 cable mount illustration
Cable Mount

Mounting option includes:

  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8
