WAKE BSS440

4” wide aperture recessed LED luminaire

CutsheetExplore Wake

Downloads

BSS440

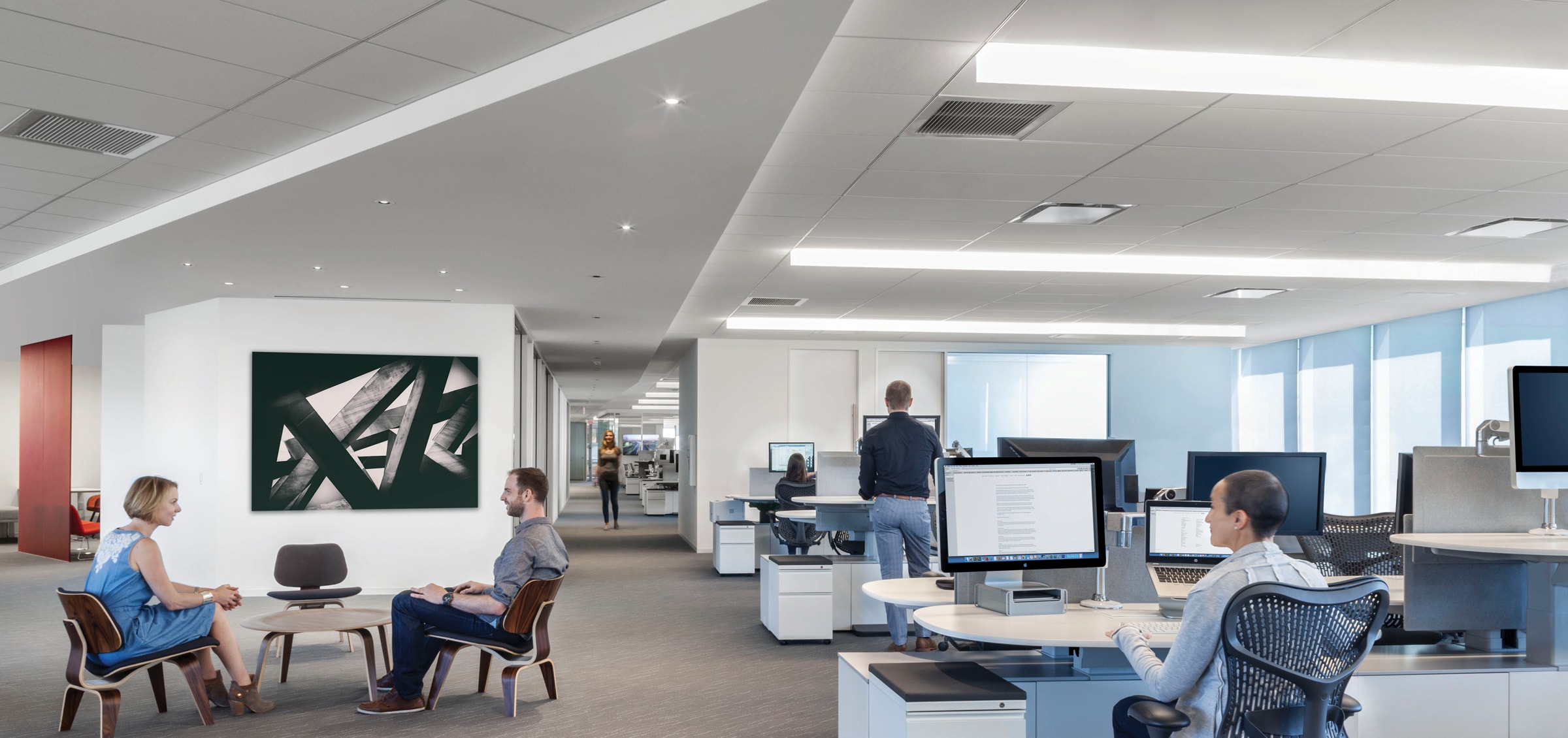

Inspiration

Features

A member of the Wake series, the BSS440 is a recessed, extruded aluminum linear LED luminaire with 4” wide aperture. Single and continuous run fixtures are available for installation in common grid ceilings or in hard walls and ceilings with flange and trimless variants. Flush or 1” drop frosted acrylic lens options are offered for all mounting configurations.

Available for QuickShip.

Lens Options

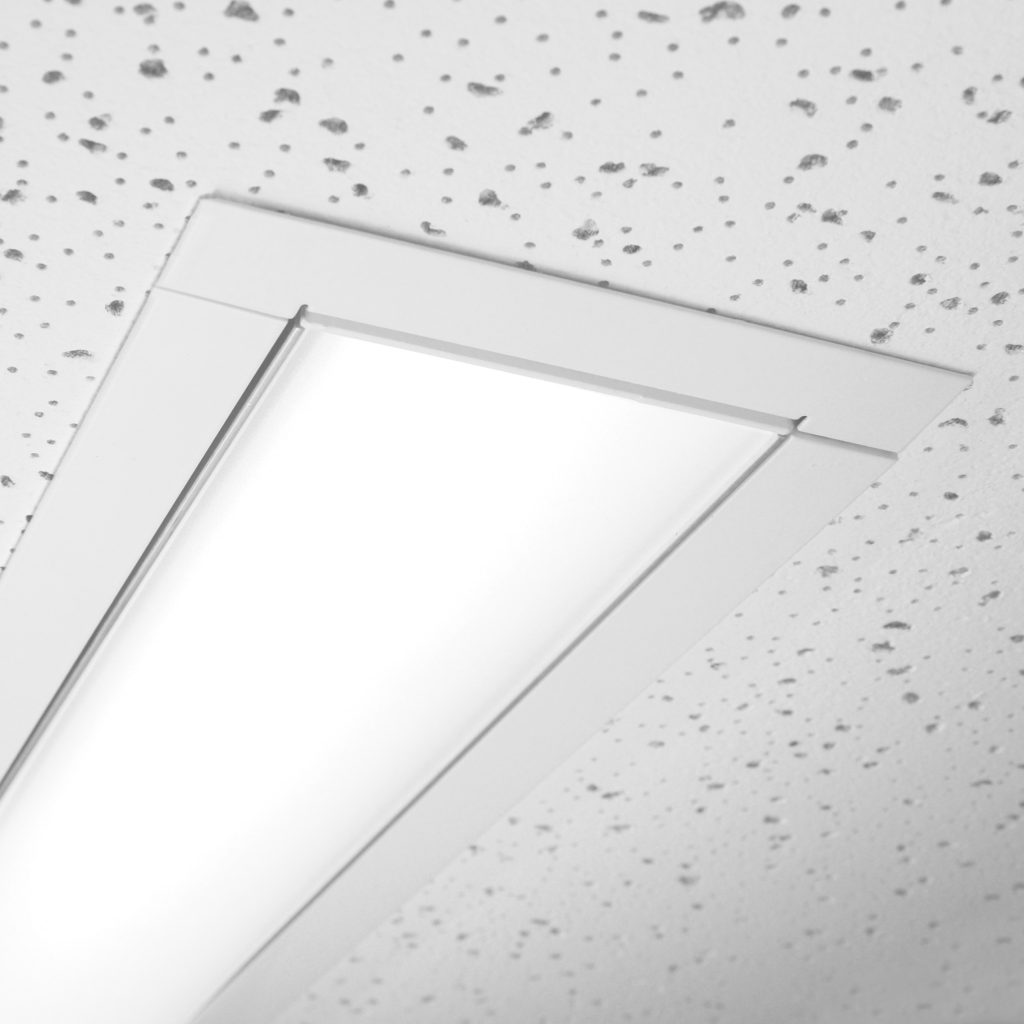

Frosted Flush Lens

4” W frosted acrylic extrusion

Ordering Code: F1

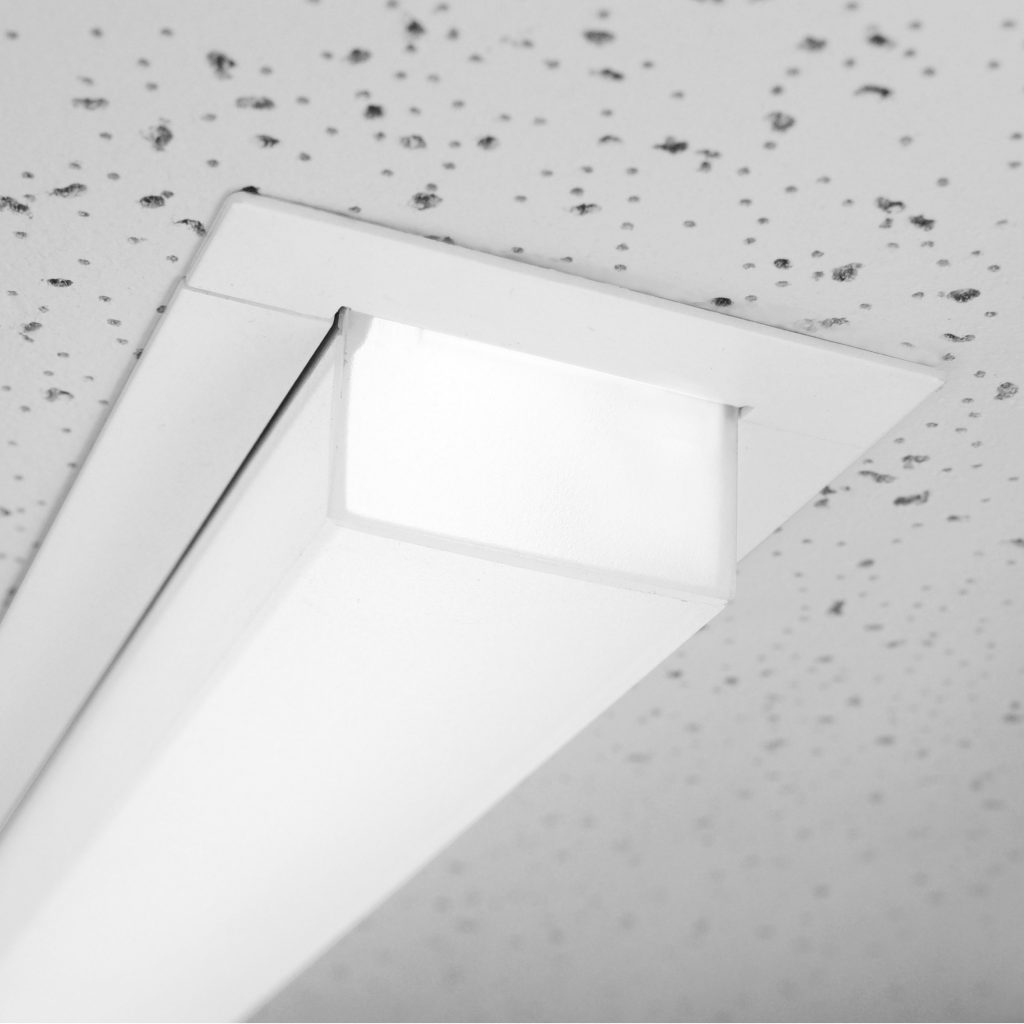

Frosted Drop Lens

4” W x 1” H frosted acrylic extrusion with matching acrylic end caps

Ordering Code: F2

Specifications

Fixture housing and trim elements made of extruded aluminum and 16 ga. sheet aluminum and steel parts

Model options available for typical 9/16” and 15/16” grid ceilings or hard walls/ceilings with flange and trimless mounting (wall installation requires accessory mounting brackets)

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.)

Frosted acrylic lens options include a flush fit or 1” drop style with lensed ends

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 44”–88” fixtures (supplied with remote test switch/indicator plate assembly)

Standard light outputs range from 465–905 lumens per foot

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Chicago plenum rated option available

Nominal weight is 3.4 lbs. per foot

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 22: 22”
  • 24: 24”
  • 33: 33”
  • 39: 39”
  • 44: 44”
  • 48: 48”
  • 50: 50”
  • 55: 55”
  • 61: 61”
  • 66: 66”
  • 72: 72”
  • 77: 77"
  • 83: 83”
  • 88: 88”

Actual dimension dependent on mounting option and run configuration

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • T1: T-grid 9/16”
  • T2: T-grid 15/16”
  • FT: flange trim
  • TL: trimless
  • CF: consult factory for custom mounting

Light Output

(lumens per foot w/ lens option F2)

  • L: low – 530
  • R: regular – 690
  • H: high – 905
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • F1: frosted flush
  • F2: frosted drop

Options

  • CP: Chicago plenum
  • ED: emergency driver (44”–88” fixtures)
  • WS1A: Wattstopper FS-205, 100%–0% ‡
  • WS1B: Wattstopper FS-205, 100%–50% ‡
  • EN1: Enlighted FS-D22 ‡
  • ES1A: EasySense SN102, 100%–0% ‡
  • ES1B: EasySense SN102, 100%–50% ‡
  • ES2A: EasySense SN200, 100%–0% ‡
  • ES2B: EasySense SN200, 100%–50% ‡
  • CF: consult factory for custom finish options

‡ See sensor section for driver compatibility information

Sections

T1: T-grid 9/16”
T2: T-grid 15/16”
(flush lens option shown)

BSS440 t-grid 9/16" and t-grid 15/16" section

FT: Flange
(drop lens option shown)

BSS440 flange section

TL: Trimless
(flush lens option shown)

BSS440 trimless section

Mounting Options

BSS440 t-grid ceiling 9/16" and t-grid ceiling 15/16" mount
T-grid ceiling 9/16” and T-grid ceiling 15/16”
  • 16 ga. brackets locate housing onto T-bar and allow 5/8” of vertical adjustment to accommodate various height T-bar
  • Housing secured with support wires (by others)
  • Exposed flange trim in matte white finish

Ordering Code: T1 and T2

BSS440 flange - drywall ceiling or wall mount
Flange – drywall ceiling or wall
  • For wall installations or special ceiling conditions, order accessory mounting brackets 440-WB
  • ¾” wide extruded aluminum trim flange in matte white finish
  • Housing secured with support wires or ¼-20 threaded rod (by others)

Ordering Code: FT

BSS440 trimless - drywall ceiling or wall mount
Trimless – drywall ceiling or wall
  • Installs after 1/2” or 5/8” drywall
  • Housing secured with self-tapping drywall screws (by others) into blocking as required

Ordering Code: TL
