FATHOM BSW215

3-1/8” wide rectilinear LED fixture with drop down lens for outdoor application

CutsheetExplore Fathom

Downloads

Features

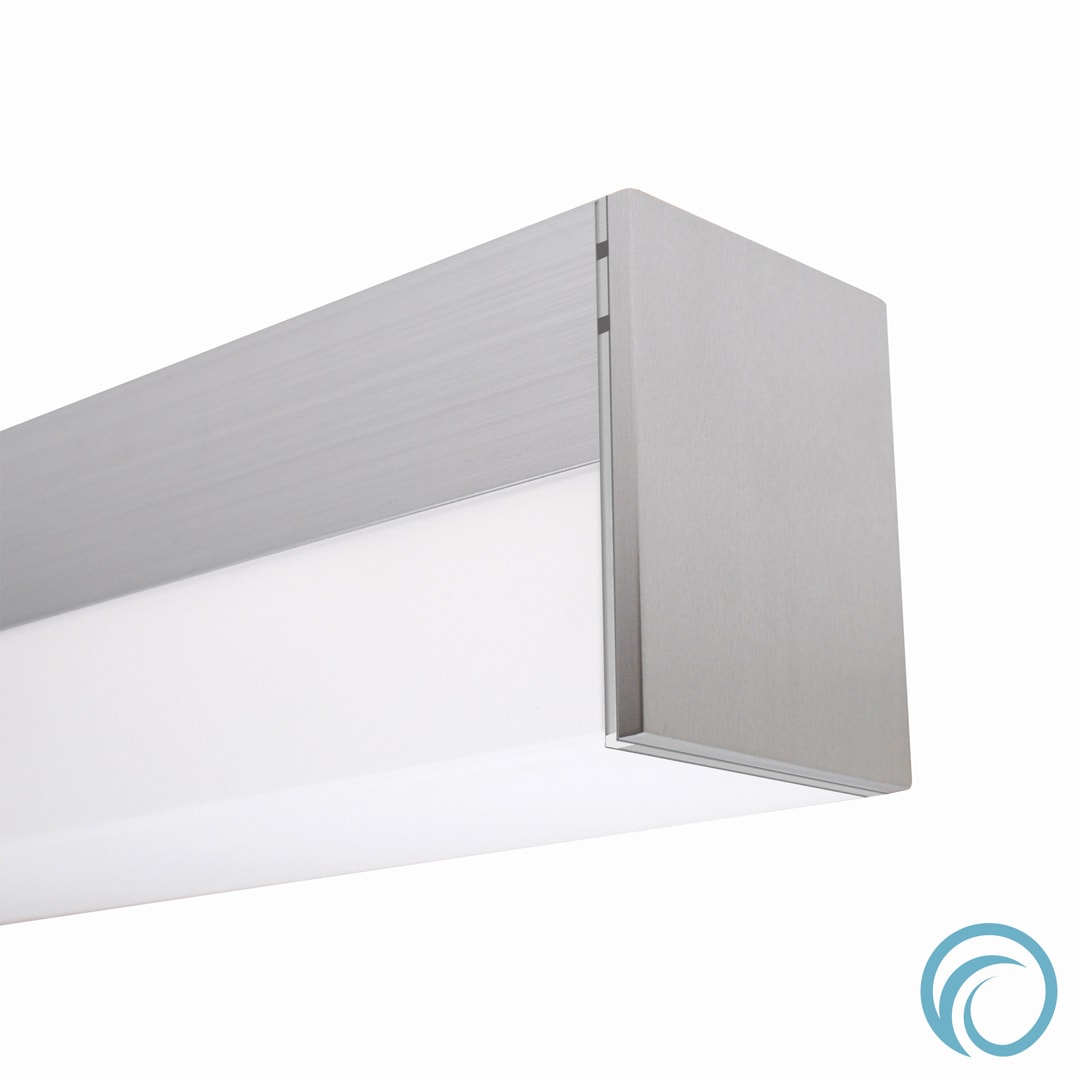

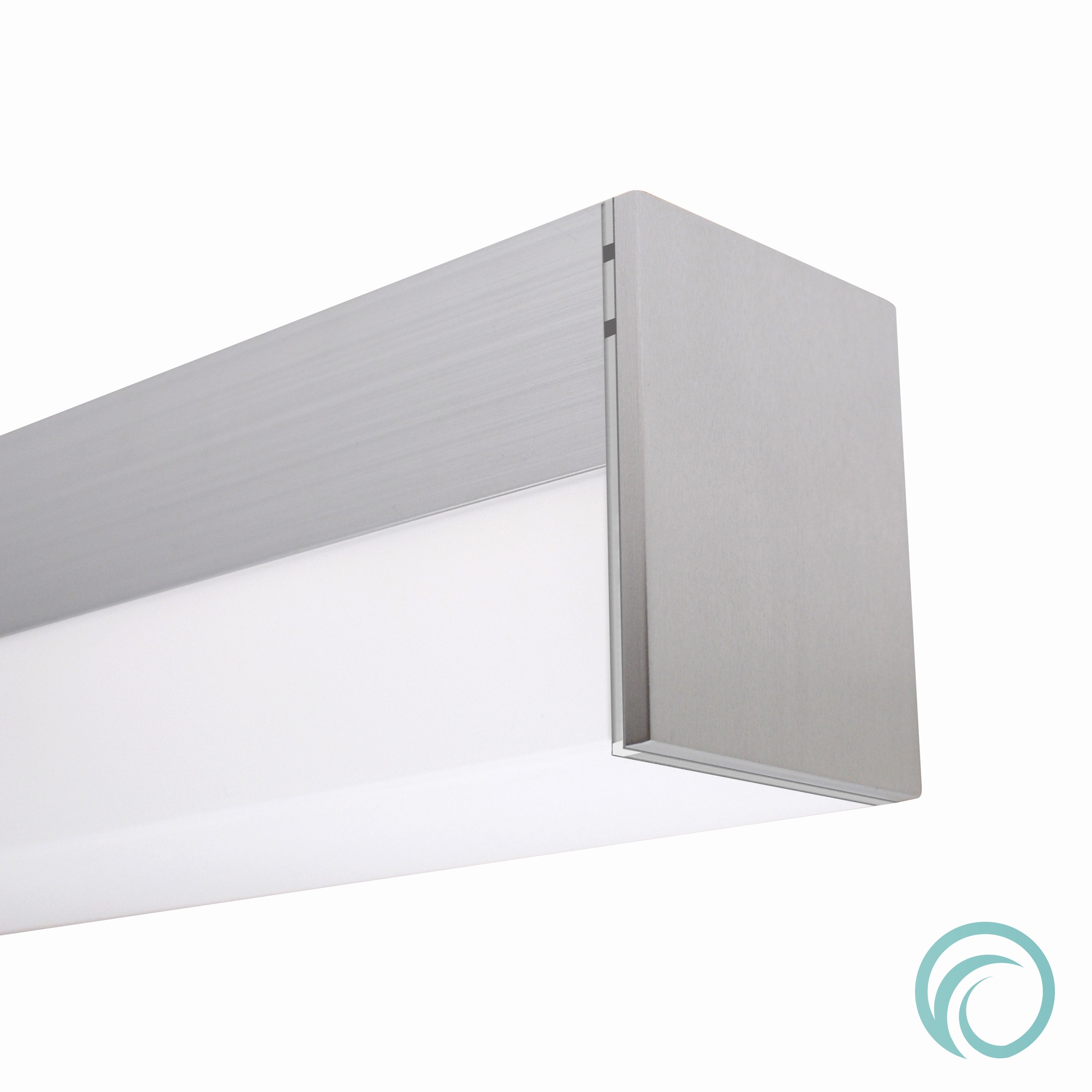

The BSW215 is a linear LED luminaire for outdoor lighting applications.  The 3-1/8” wide extruded aluminum housing is capped by a 2” tall, frosted, three sided lens that produces a wide distribution of diffuse illumination.  1/4” thick machined aluminum end caps finish off the fixture ends.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 470 | R: 940 | H: 1180
  • Watts/ft.: L: 4.0 | R: 8.0 | H: 10.0
  • Luminaire Lumens: L: 1884 | R: 3767 | H: 4709
  • Efficacy (LPW): L: 118 | R: 118 | H: 119

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum, extruded, frosted acrylic lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available in nominal lengths of 2’-8’ single fixtures and continuous runs

Housing provided with a Ø7/8 hole for back feeding

Standard integral 120-277V wet location driver offered with 0-10V dimming or non-dim

Standard outputs are 470, 940 and 1180 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

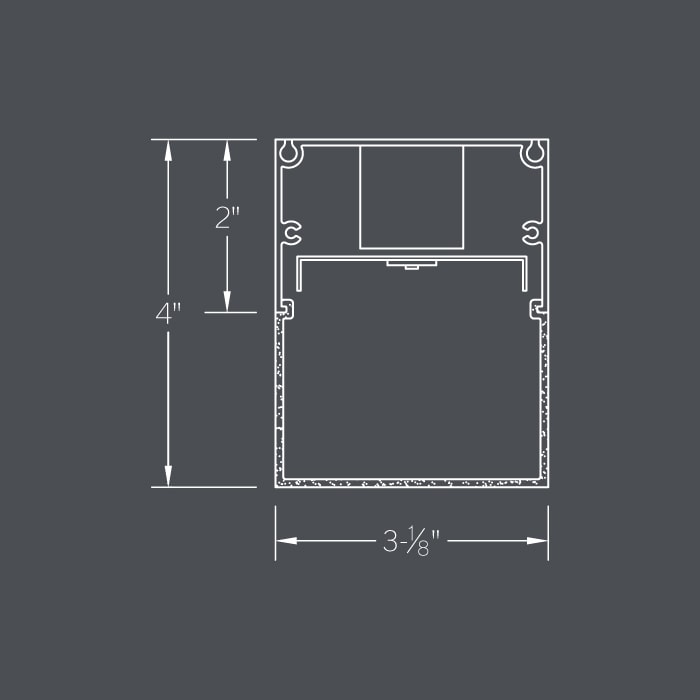

Nominal Fixture Length

  • 2: 24-5/8”
  • 3: 36-5/8”
  • 4: 48-5/8”
  • 5: 60-5/8”
  • 6: 72-5/8”
  • 7: 84-5/8”
  • 8: 96-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K - 80+ CRI
  • 30: 3000K - 80+ CRI
  • 35: 3500K - 80+ CRI
  • 40: 4000K - 80+ CRI

Driver

  • IN: non-dimming
  • ID: 0-10V dimming, 5%

Mounting

  • SM: surface mount

Light Output

(lumens per foot)

  • L: low – 470
  • R: regular – 940
  • H: high – 1180

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Mounting Options

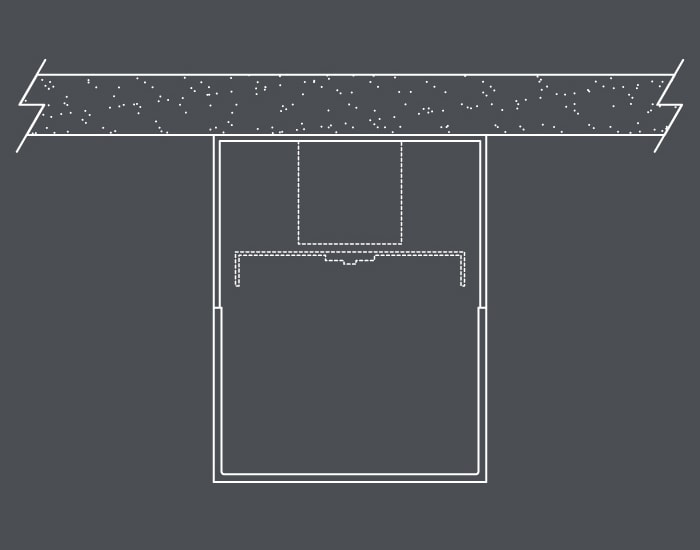

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing
  • Power entry through Ø7/8 hole on the back at an end

Ordering Code: SM
