BODHI FLUSH LENS BSS214

3” square LED luminaire with flush lens

CutsheetExplore Bodhi

Downloads

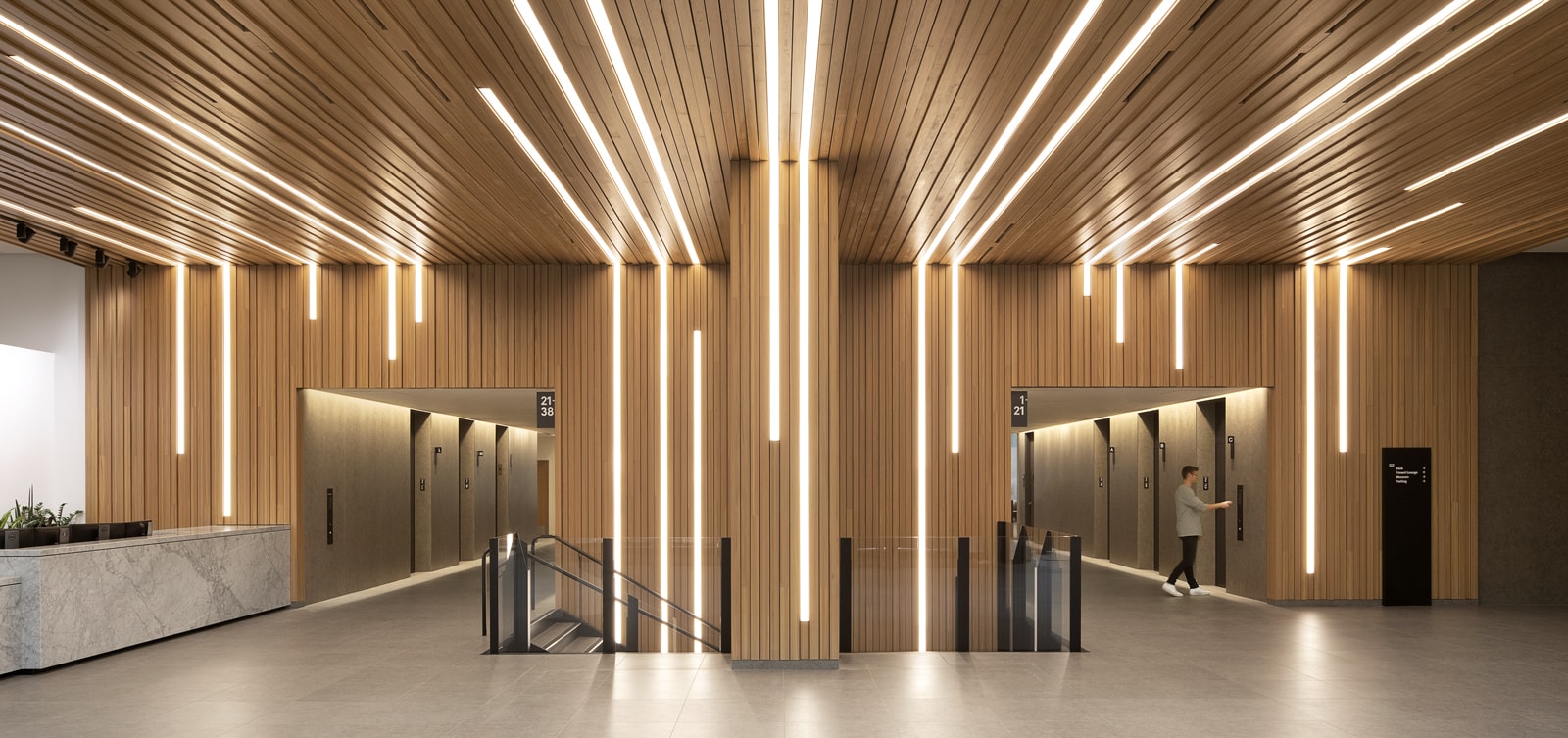

Wells Fargo Center installation with Bodhi BSS214

BSS214
Inspiration

Features

The BSS214 is a linear LED luminaire for general lighting applications. The 3″ square extrusion is fitted with a flush, frosted lens and machined aluminum end caps. Surface, cable or wall mounting options are available, as well as a variety of dimming drivers and light outputs, to maximize the versatility of this clean design luminaire. The BSS214 is Controls Capable, being offered with a variety of integrated control options.

For a corresponding recessed fixture, see BSS430.

Available for QuickShip.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 555 | R: 720 | H: 950
  • Watts/ft.: L: 5.6 | R: 7.7 | H: 10.6
  • Luminaire Lumens: L: 2071 | R: 2690 | H: 3535
  • Efficacy (LPW): L: 100 | R: 92 | H: 88

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps.

Model variations offered for surface, wall mount and cable suspended applications.

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes).

Satin anodize finish also available (may require additional lead time).

Available in nominal lengths of 2’–8’ single fixtures and continuous runs.

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.).

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).

Integral 120-277V emergency battery backup available for 4’ or 8’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).

Standard outputs are 555, 720 and 950 lumens per foot.

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.

Life: 50,000 hours L70.

Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers.

Limited five year warranty.

UL and C-UL listed for dry and damp locations.

IBEW manufactured and assembled.

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-3/4”
  • 3: 33-3/4”
  • 4: 44-3/4”
  • 5: 55-3/4”
  • 6: 66-3/4”
  • 7: 77-3/4”
  • 8: 88-3/4”

Actual dimension dependent on run configuration.

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • SM: surface mount
  • WD: wall mount – direct
  • WI: wall mount – indirect
  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length

Light Output

(lumens per foot)

  • L: low – 555
  • R: regular – 720
  • H: high – 950
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Options

  • ED: emergency driver (4’ or 8’ non-dim or 0-10V only)
  • WS1A: Wattstopper FS-205, 100%-0% *
  • WS1B: Wattstopper FS-205, 100%-50% *
  • EN1: Enlighted FS-D22 *
  • ES4: Philips EasySense SNS211 MC *
  • CA1: Casambi CBU-A2D *
  • NL1: nLight RES7 *
  • NL2: nLight RIO *
  • LA1: Lutron Athena A-WN-D01-RF-WH *
  • LA2: Lutron Athena A-WN-D01-OCC-WH *

* See Integrated Controls section for driver compatibility information.

Section

BSS214 section

Mounting Options

BSS214 surface mount
Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

BSS214 wall mount - direct orientation
Wall Mount - Direct Orientation
  • 1-7/8” H x 4-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WD

BSS214 wall mount - indirect orientation
Wall Mount - Indirect Orientation
  • 1-7/8” H x 4-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WI

BSS214 cable mount
Cable Mount
  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8
