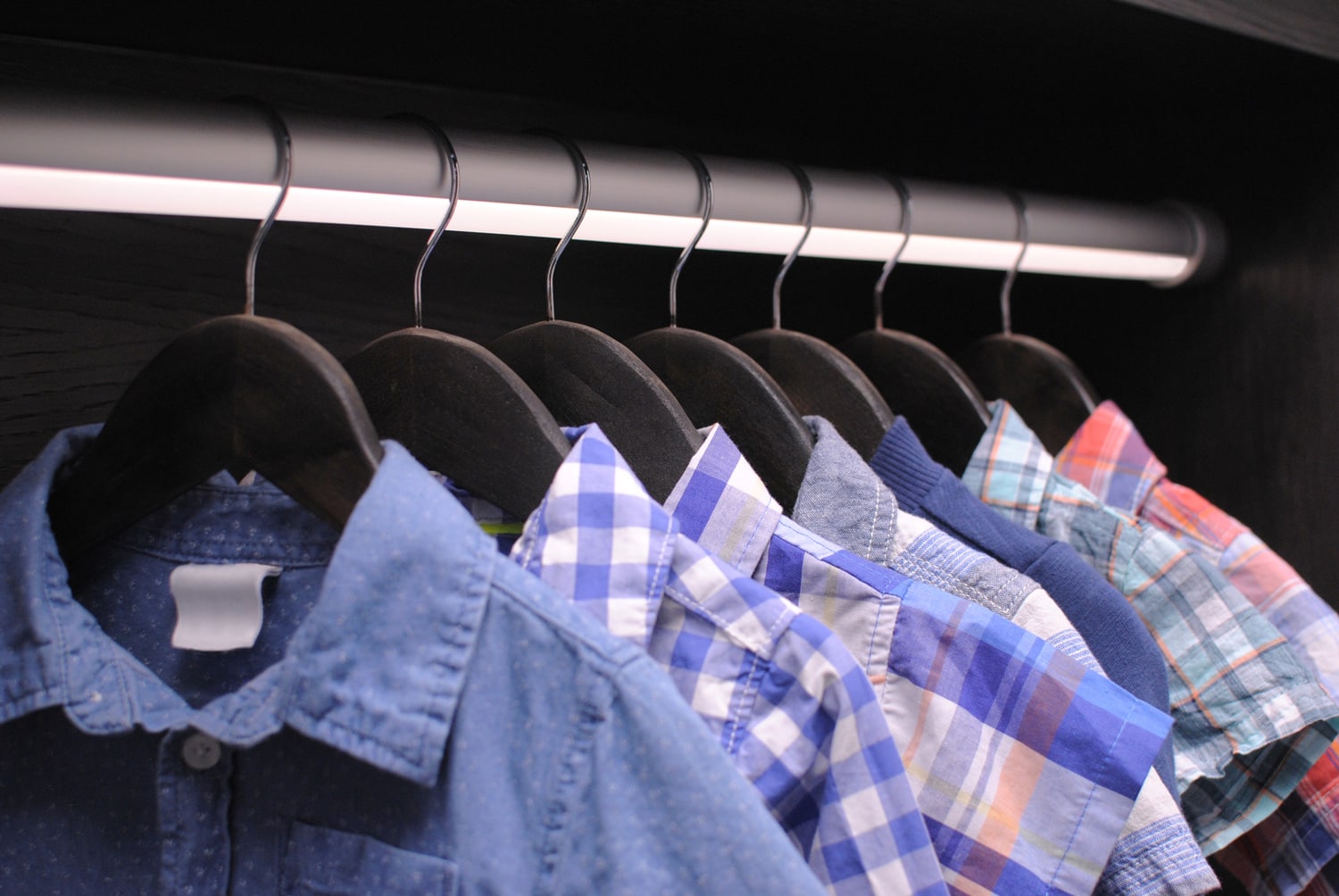

The BCR100 is a 1-3/8” O.D. extruded aluminum LED luminaire designed for installation as an illuminated closet rod. Light diffused through a frosted acrylic lens is directed downward onto hanging clothes and into the closet space. The slender fixture housing is secured to walls or millwork with clean, machined aluminum mounting cups. For longer lengths, fixed and adjustable intermediate supports are available.
Finishes
Performance
- Nominal Length: 4'
- Output: R: regular
- Lumens/ft.: 480
- Watts/ft.: 5.6
- Luminaire Lumens: 1819
- Efficacy (LPW): 87
Note: All data reflects fixtures with 3500K LEDs
Specifications
Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and sheet aluminum end caps
Fixture mounts to closet walls with machined aluminum cup-style holders
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
Satin anodize finish also available (may require additional lead time)
Available for closet openings of 2’–8’ nominal
Fixed length or adjustable intermediate supports required for fixture lengths over 34-15/16” with 33 lbs. capacity for every 36” of length between supports
Fixture housings cut to length in 1/16” increments based on 11” length LED board modules
Fixtures wired with 10’ low voltage leads
Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)
Standard output is 480 lumens per foot
LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for storage spaces
IBEW manufactured and assembled
Made in U.S.A.
Product Data
Nominal Fixture Length
Specify Inside Clear dimension between end mounting surfaces to the nearest 1/16”
- 23-15/16 – 34-7/8” (2 LED boards)
- 34-15/16 – 45-7/8” (3 LED boards) †
- 45-15/16 – 56-7/8” (4 LED boards) †
- 56-15/16 – 67-7/8” (5 LED boards) †
- 67-15/16 – 78-7/8” (6 LED boards) †
- 78-15/16 – 89-7/8” (7 LED boards) †
- 89-15/16 – 96” (8 LED boards) †
† Requires intermediate support, ordered separately
Correlated Color Temperature
- 27: 2700K-90+ CRI
- 30: 3000K-90+ CRI
- 35: 3500K-90+ CRI
- 40: 4000K-90+ CRI
Driver
- ND: non-dimming
- D: 0-10V, 1%
- DTR: triac, 1%
- DLV: electronic low voltage, 1%
- HES: Lutron EcoSystem, soft-on/ fade-to-black, 1%
- EL: eldoLED ECOdrive, 0-10V, 1%
- ES: eldoLED SOLOdrive 0-10V, 0.1%
- ELD: eldoLED ECOdrive DALI, 1%
- ESD: eldoLED SOLOdrive DALI, 0.1%
Each fixture includes a remote driver matched for fixture length and light output
Light Output
(lumens per foot)
- R: regular – 480
Section
Mounting Options
- Use appropriate #10 fastener into adequate blocking for securing end holders to mounting surface
- Trim collars slip over the end holders and secure with a set screw
- Fixtures longer than 34-15/16" require intermediate supports
Ordering Code: N/A
