Daryl BDA30

Linear asymmetric LED luminaire for outdoor locations

CutsheetExplore Daryl

Downloads

Features

The Bartco Lighting BDA30 is a linear outdoor luminaire with a high-performance asymmetric optic, optimized for walkways, stairways and pedestrian bridges. The 3-1/4” x 3” extruded aluminum housing is fitted with internal shielding to minimize backlight and internal louvers to manage straylight. These features combine with optically engineered Fresnel prisms to produce a type IV distribution, uniformity ratio down to 2.75:1 and low BUG rating.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Lens Options

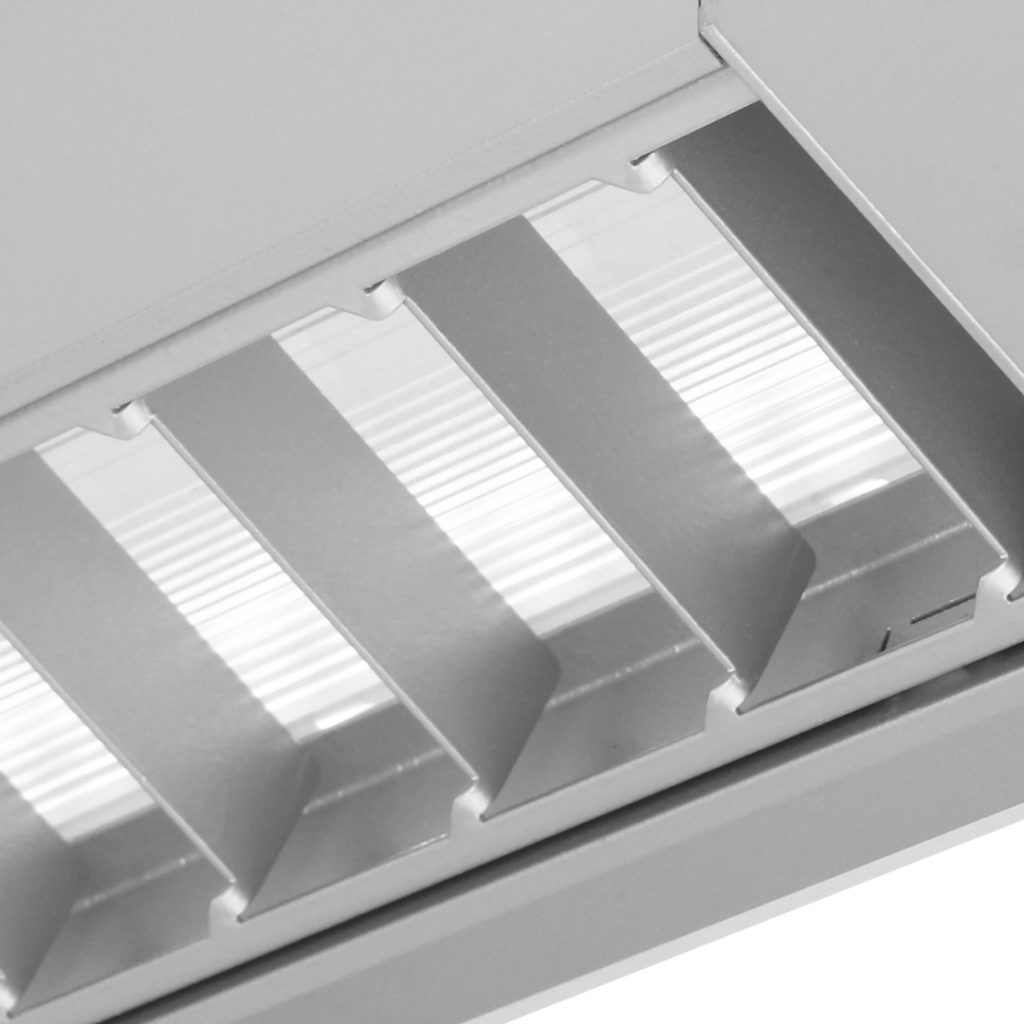

Standard Louver

20 gauge steel with 5/8" tall blades, spaced 1-1/4" apart. Available in architectural white (AW), environmental satin silver (ESS) and bronze (BZ) powder coat finishes.

Ordering Code: A

Specifications

Fixture constructed of an extruded aluminum housing, aluminum LED liner/reflector, extruded acrylic lens and 16 gauge sheet steel end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Internal shielding, louvers and an extruded acrylic lens with optically engineered Fresnel prisms produce a type IV distribution, B0 U1 G1 BUG rating and uniformity ratio down to 2.75:1, depending on louver finish

Fixture provided with standard mounting to a surface or outdoor rectangular wall box

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, etc.)

Standard integral 120-277V driver offered with 0-10V dimming or non-dim

Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers)

Standard outputs range between 105–530 lumens per foot at 2–6 Watts per foot, depending on louver finish option

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 22: 22-3/8"
  • 33: 33-3/8"
  • 44: 44-3/8"
  • 55: 55-3/8"
  • 66: 66-3/8"
  • 77: 77-3/8"
  • 88: 88-3/8"

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%

Mounting

  • SM1: surface/rectangular wall box mount
  • CF: consult factory for custom mounting

Light Output

(lumens per foot w/ AW louver)

  • L: low* – 180
  • R: regular – 365
  • H: high – 530
  • CF: consult factory for custom output

* Low output available for 44” length and longer fixtures.

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: standard louver

Options

  • ED: emergency driver (4' or 8' non-dim or 0-10V only)

Optic

  • 1: asymmetric distribution

Louver Finish

  • AW: architectural white (semi-matte)
  • ESS: environmental satin silver
  • BZ: bronze
  • CF: consult factory for custom finish

Section

Mounting Options

Surface/Rectangular Wall Box Mount
  • 3" H x 4-3/4" W x 3/4" D bracket assembly in matching finish
  • Mounts directly to a vertical surface or to a typical rectangular outdoor junction box (gasket by others)

Ordering Code: SM1
