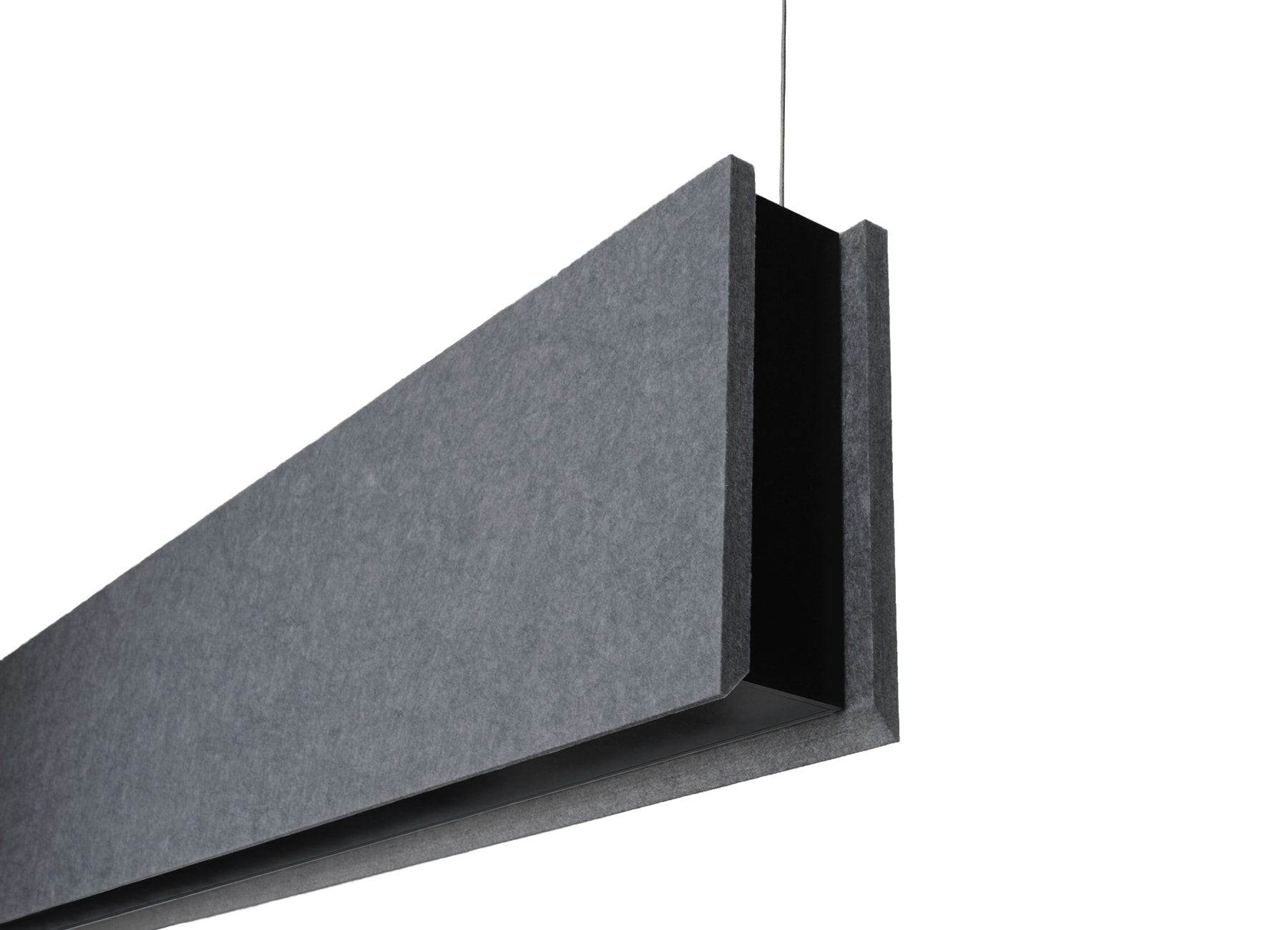

The Hush HB2 acoustic baffle compliments the HL2 luminaire, enhancing interior spaces with subtle to bold colors, while damping sound reflections. The 2” wide frame is clad with ½” thick felt acoustic panels in 8”, 12” or 16” heights and twenty standard colors. The fixture housing and machined aluminum end caps are available in several architectural finishes, as well as optional RAL finishes to coordinate with panel colors.
Finishes
RAL 9003
RAL 7047
RAL 7004
RAL 7039
RAL 7016
RAL 7022
RAL 9004
RAL 1013
RAL 1019
RAL 1017
RAL 2011
RAL 3031
RAL 4002
RAL 4005
RAL 5011
RAL 5002
RAL 5007
RAL 5012
RAL 6012
RAL 6011
AW Archit. White (semi-matte)
WH White (semi-gloss)
BL Black (semi-matte)
MB Matte Black
ESS Envir. Satin Silver
BZ Bronze
Specifications
Fixture constructed of extruded aluminum, heavy gauge sheet formed steel and aluminum and PET acoustic felt panels
Model variations offered for cable suspended and wall mount applications as 2’-8’ nominal single fixtures and continuous runs up to 50’
The ½” thick, 100% PET (>75% recycled), fire rated (ASTM E84 Class B) 0.98 NRC acoustic felt panels feature a bottom beveled edge, extended ends and are available in twenty standard colors
Fixture housing and machined aluminum end caps are available in standard powder coat finishes as shown below and optional RAL finishes coordinated to the panel colors
Limited five year warranty
Made in U.S.A.
Product Data
Nominal Fixture Length
- Specify run from 2’–50’ to the nearest foot
Specify run length to the nearest one foot. Factory will configure using the least quantity of fixtures as close to the desired run length as possible without exceeding the length. Run to be confirmed with a shop drawing.
Mounting
- C4: cable mount 4’ cable length
- C8: cable mount 8’ cable length
- WM: wall mount
- CF: consult factory for custom mounting
End Treatment
- 1: extended panels/metal end cap
- 2: mitered panels/acoustic end cap
- CF: consult factory for custom end
End Finish
- AW: architectural white (semi-matte)
- WH: white (semi-gloss)
- BL: black (semi-matte)
- MB: matte black
- ESS: environmental satin silver
- BZ: bronze
- ‡ RAL: optional RAL finish coordinates w/panel color
- CF: consult factory for custom finish
‡ When the RAL code is optioned, the end cap will be finished in an RAL color that closely matches the selected Panel Color. See Panel Color key for details.
Height
- 8: 8"
- 12: 12"
- 16: 16"
Section
Mounting Options
Mounting option includes:
- Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
- Ø 5” white canopies
- Ceiling couplers, cable grippers and hardware
Ordering Code: C4 and C8
