REAL80 photo with Baltic birch - maple finish

FAUX|REAL REAL80

2” wide aperture LED luminaire with flush lens, wood or steel cladding

CutsheetExplore Faux|Real

Downloads

REAL fixture with Corten steel cladding

Corten Steel
Finish option

Features

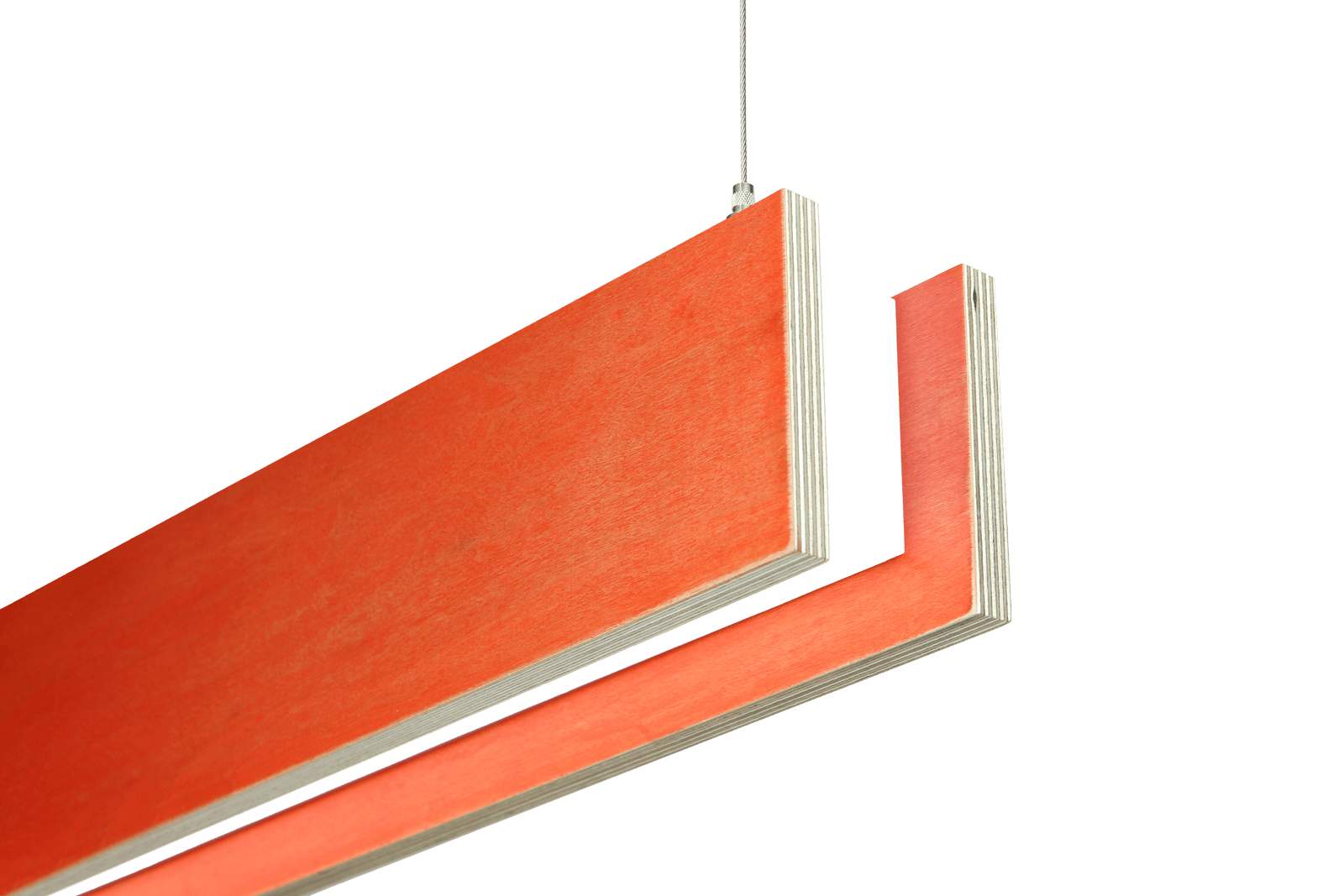

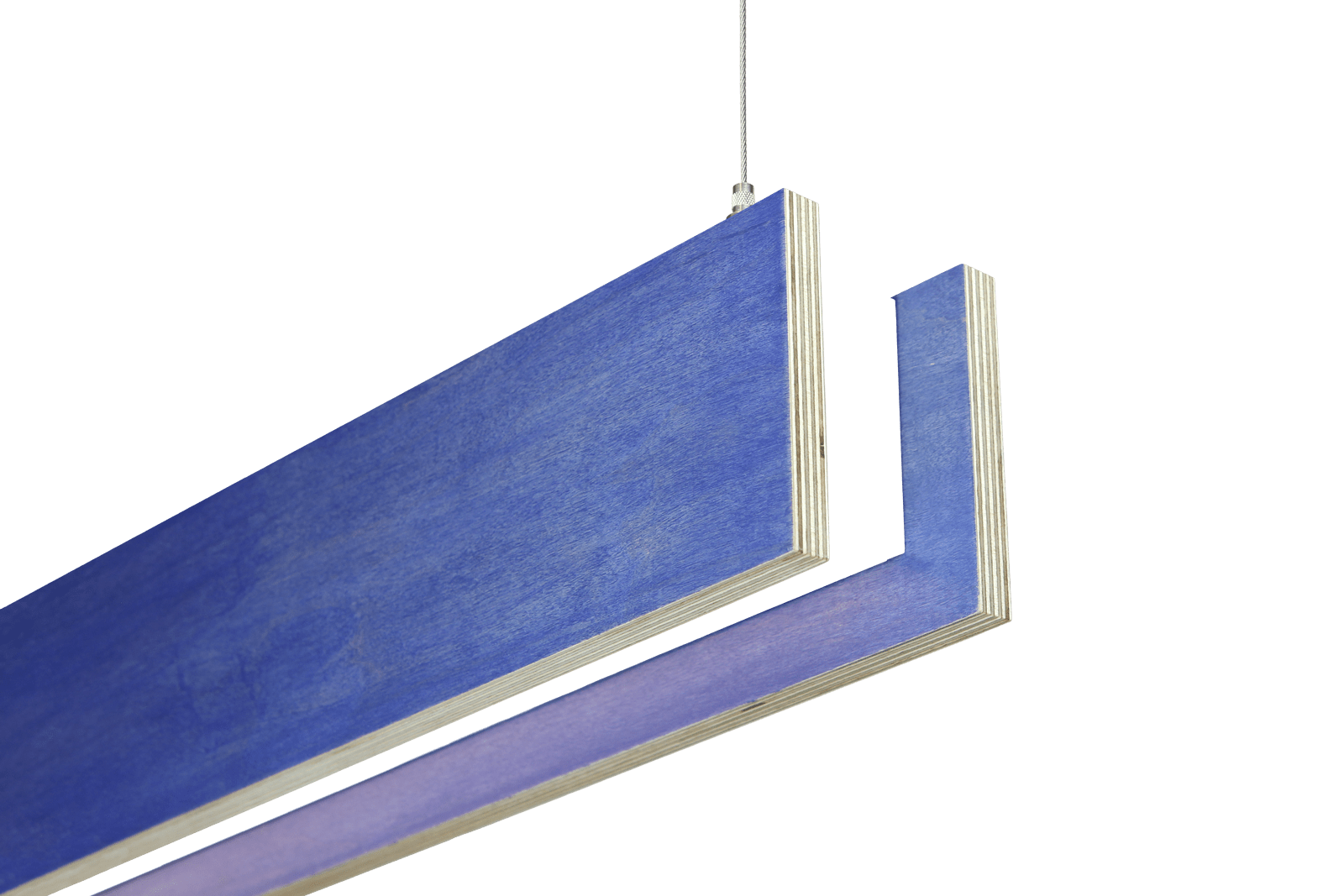

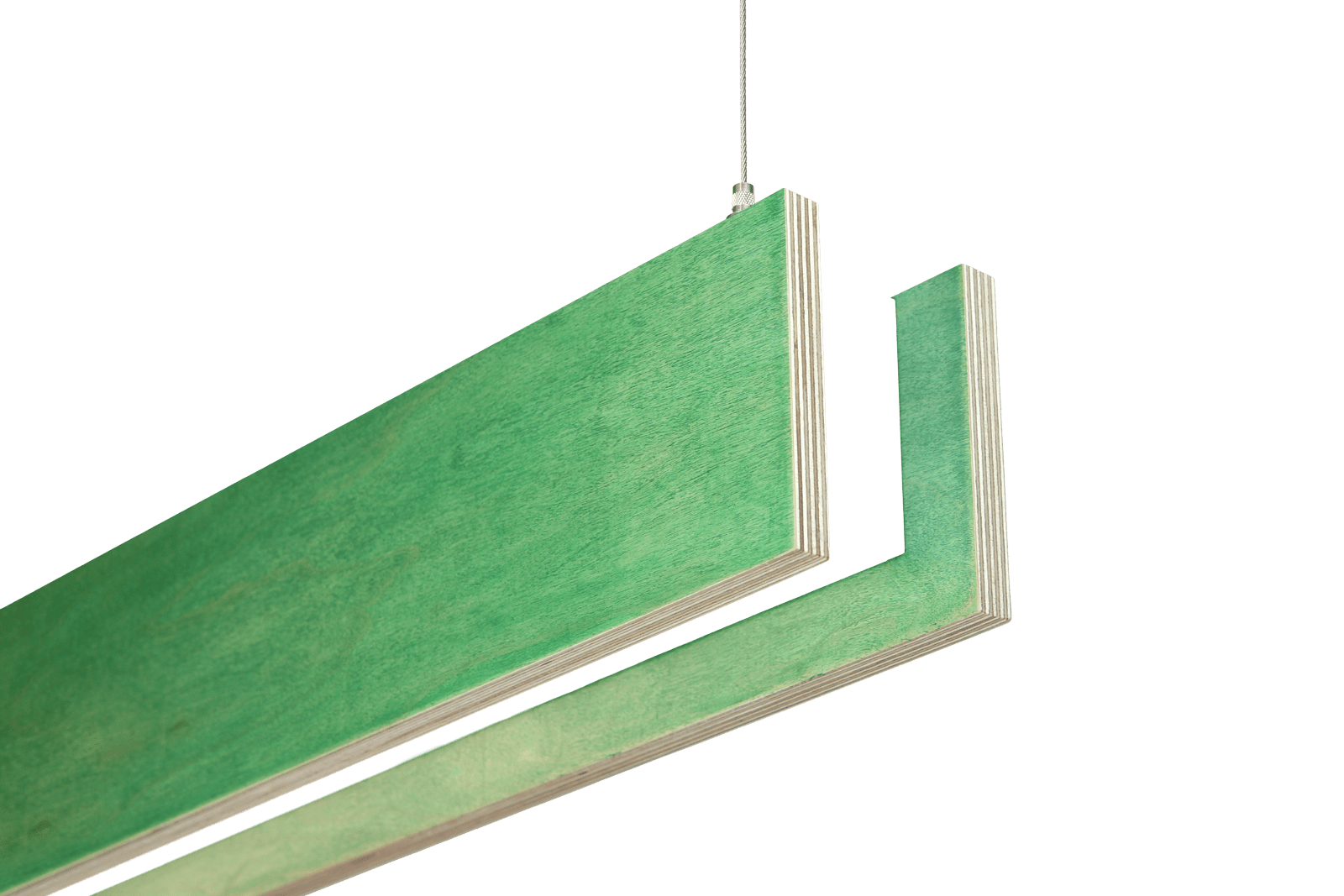

The REAL80 is a linear directional LED luminaire for general lighting applications. The 2” wide by 3” tall aluminum extruded housing is clad with 1/2” thick wood planks or heavy gauge Corten steel. The furniture grade wood options are available in several standard varieties, with hand applied finishes, while the Corten steel is clear coated. The REAL80 is available for cable or wall mounting and offered with a variety of dimming driver and light color options for added versatility.

Finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular
  • Lumens/ft.: L: 315 | R: 405
  • Watts/ft.: L: 4.5 | R: 7.4
  • Luminaire Lumens: L: 1795 | R: 1573
  • Efficacy (LPW): L: 69 | R: 55

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens, machined aluminum end caps and wood or steel side cladding

Model variations offered for cable suspended and wall mount applications

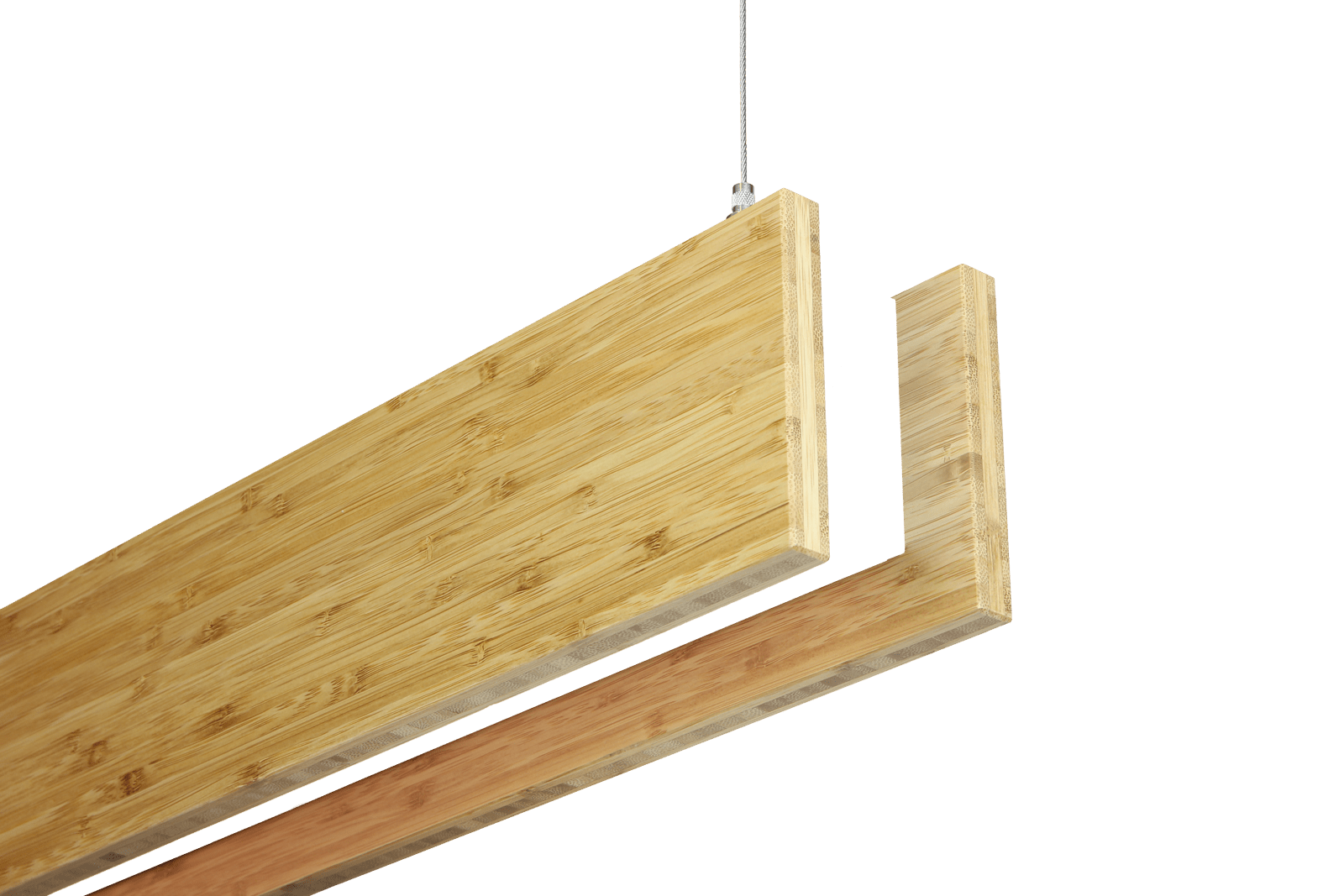

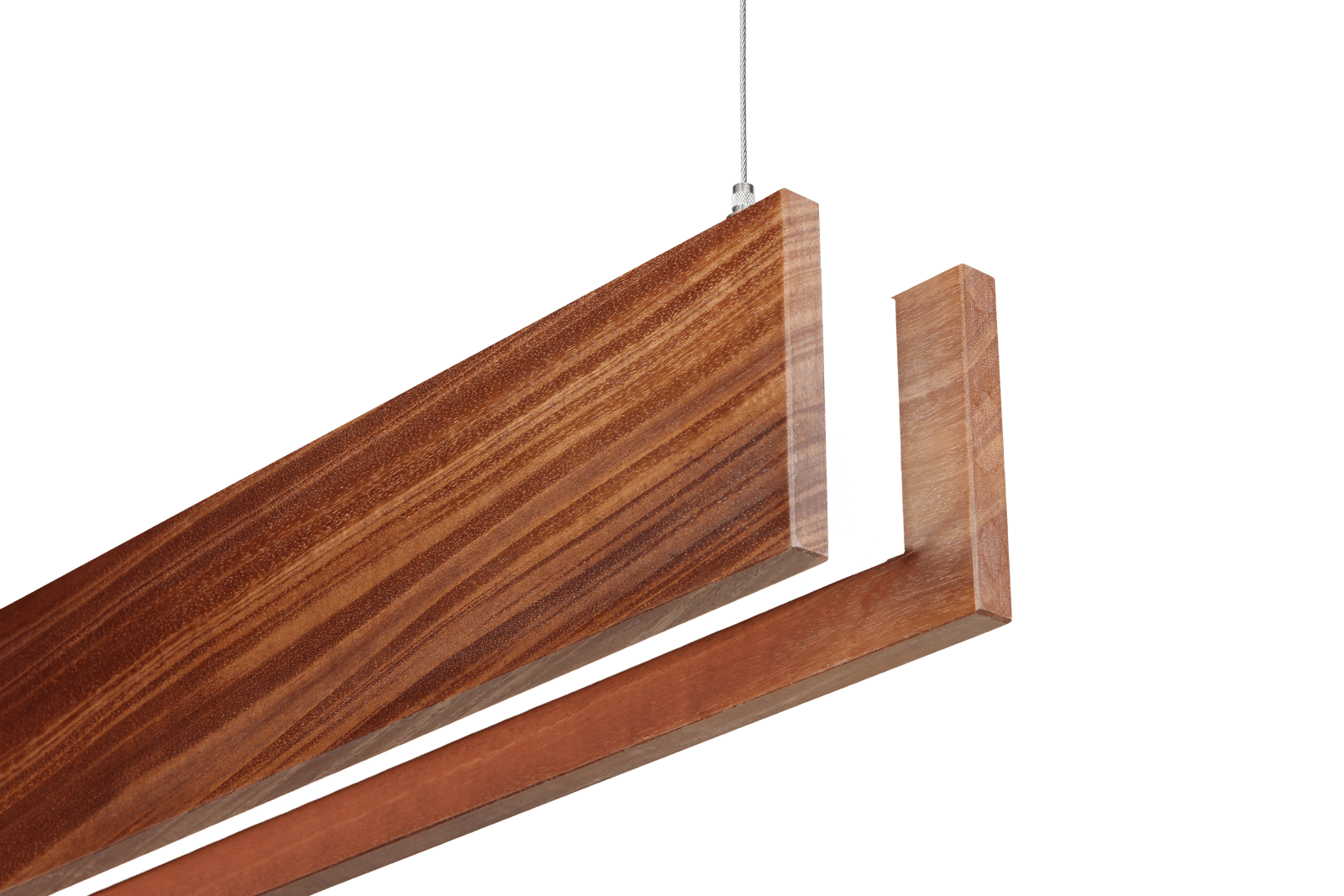

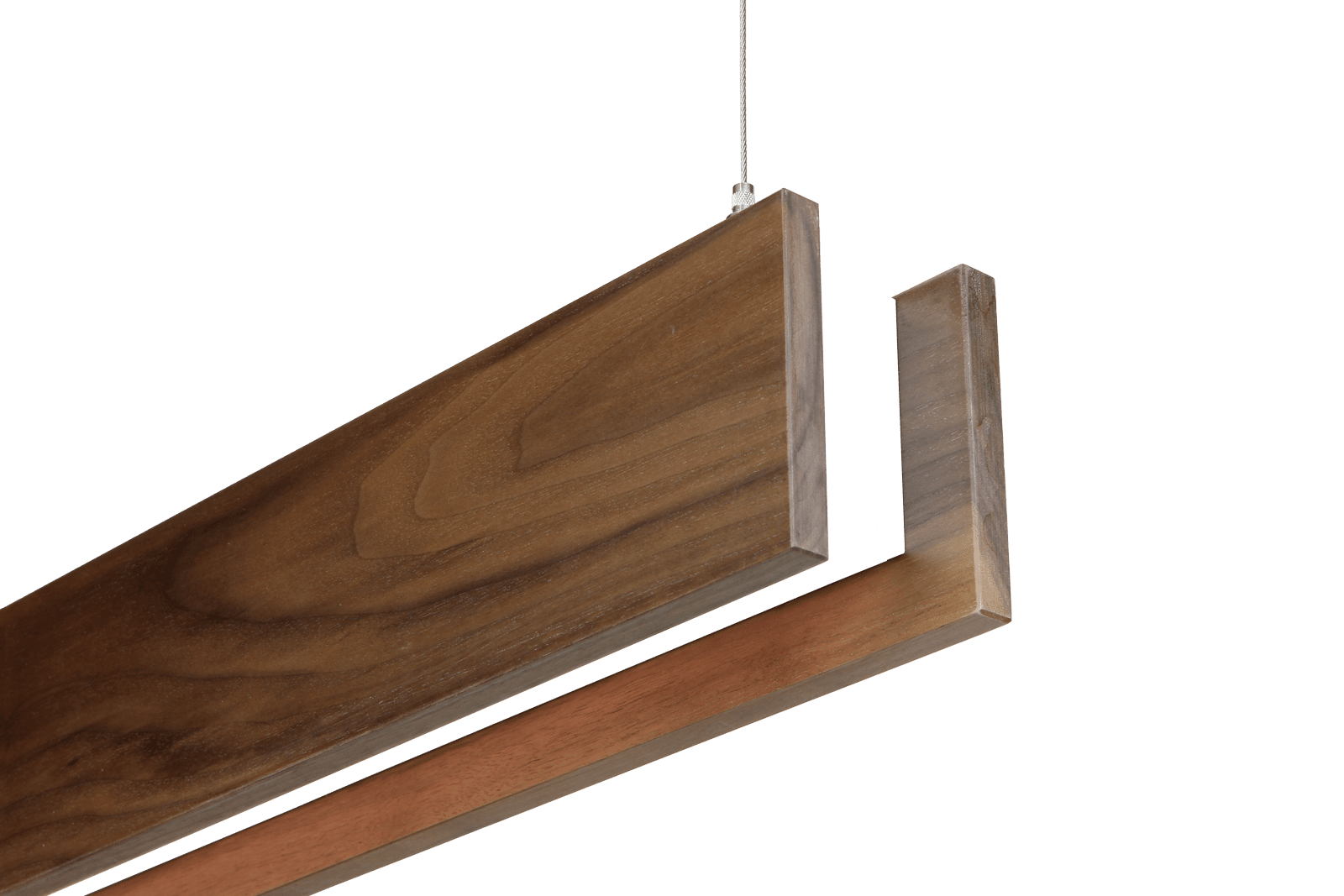

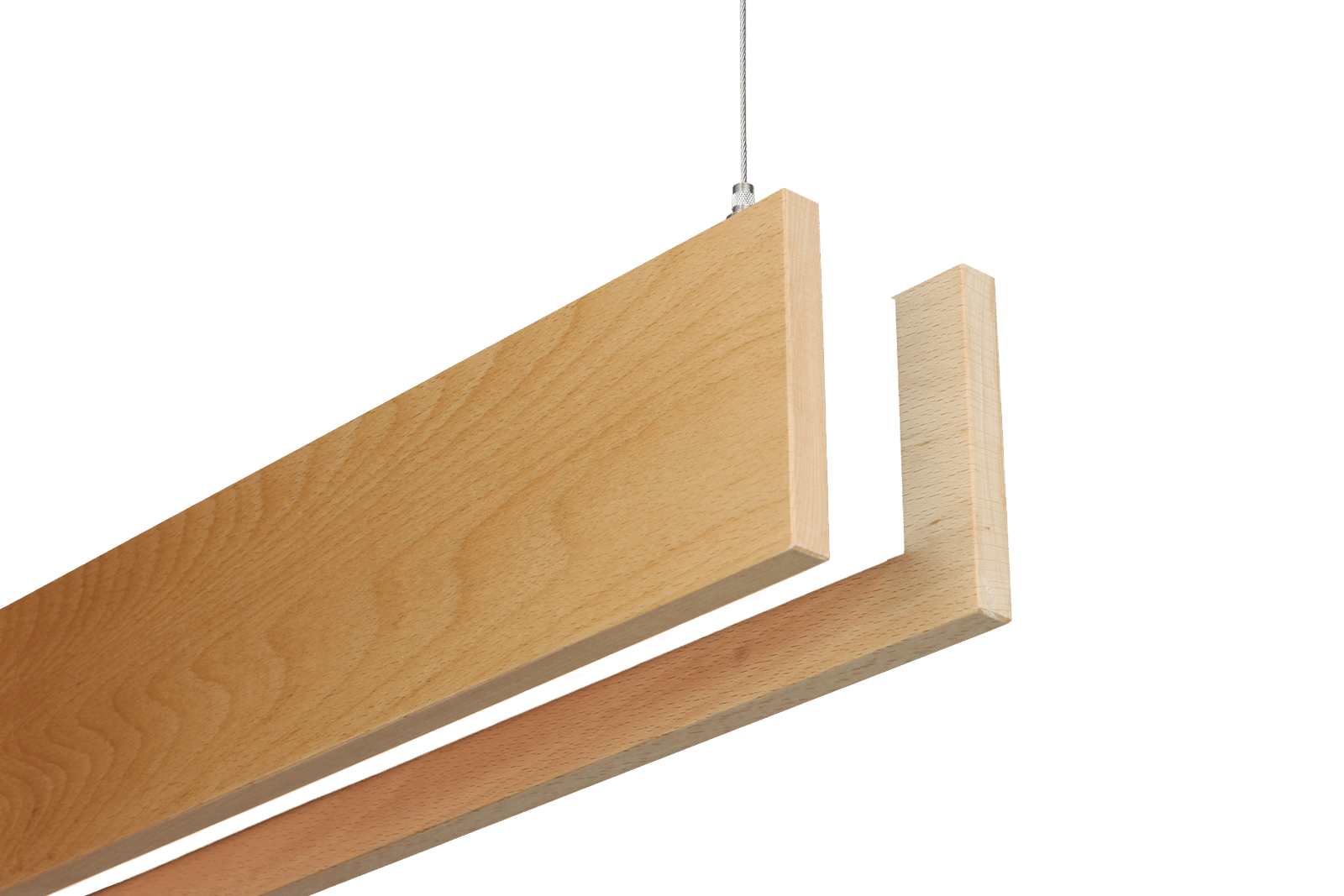

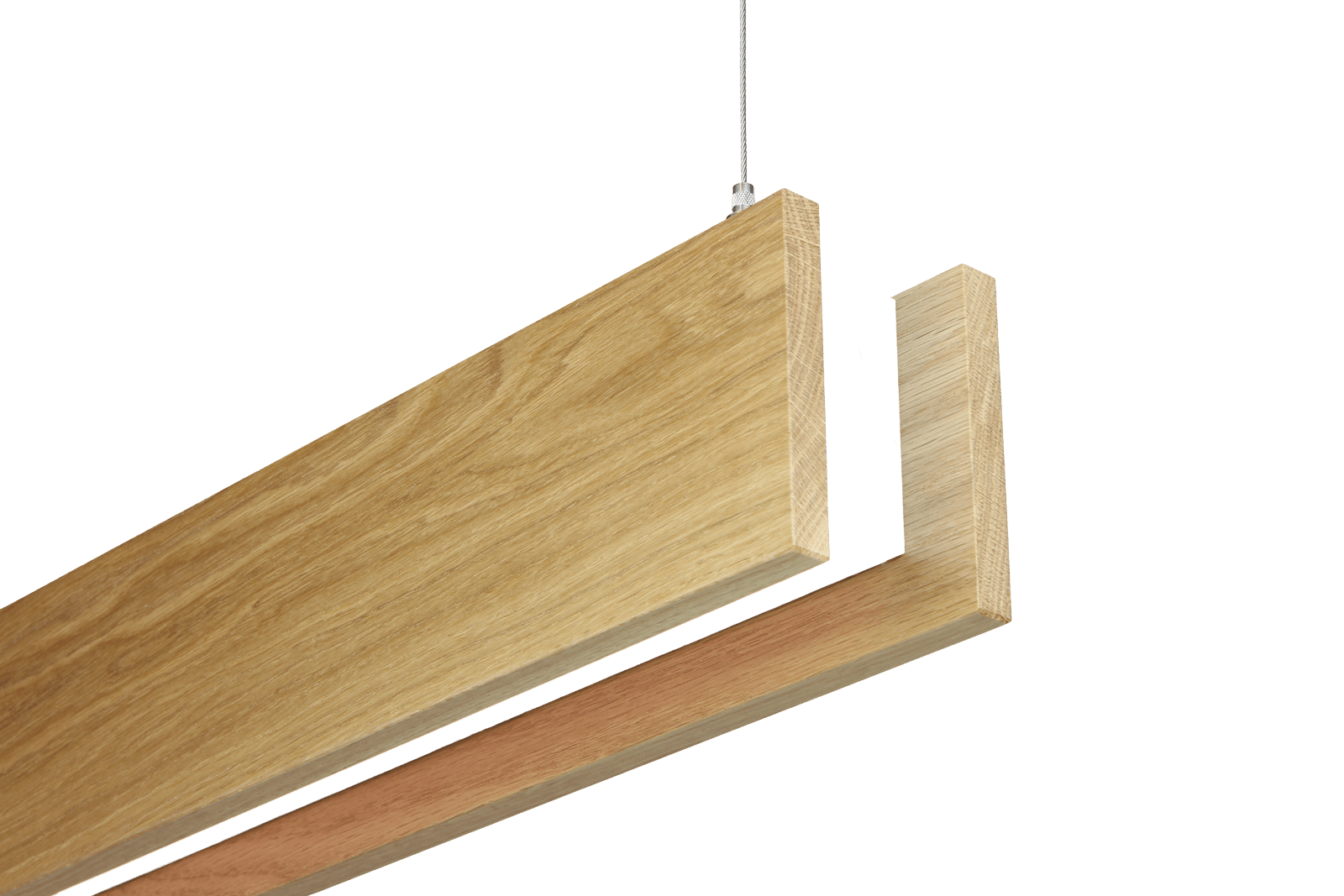

Wood side cladding is 1/2” thick, furniture grade, solid wood in walnut, European beech, mahogany, white oak and bamboo ply or nine-ply Baltic birch with maple face

Solid wood planks and bamboo ply are hand finished in five to seven coats of clear shellac and sealed with clear liquid wax for a natural look and easy cleaning

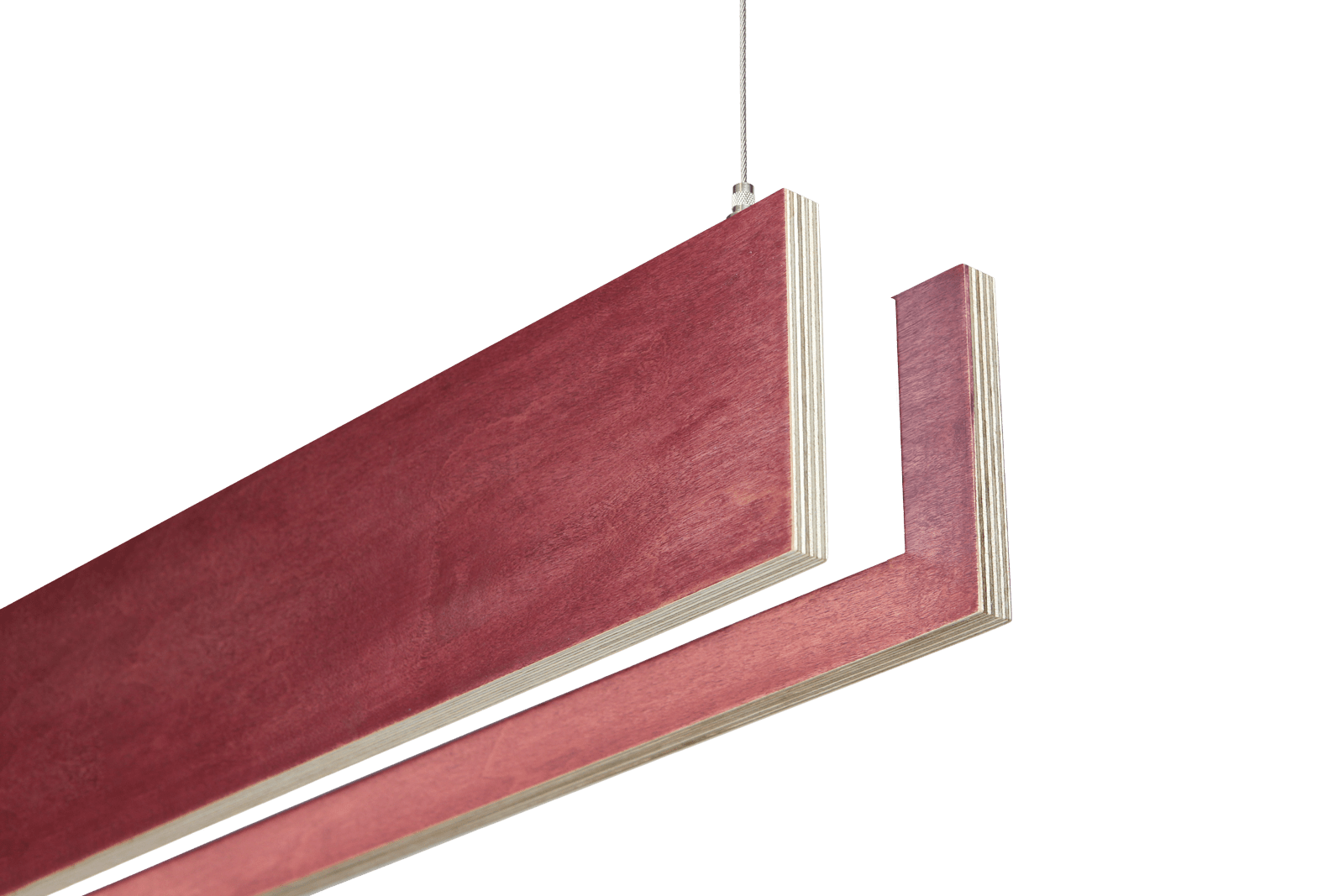

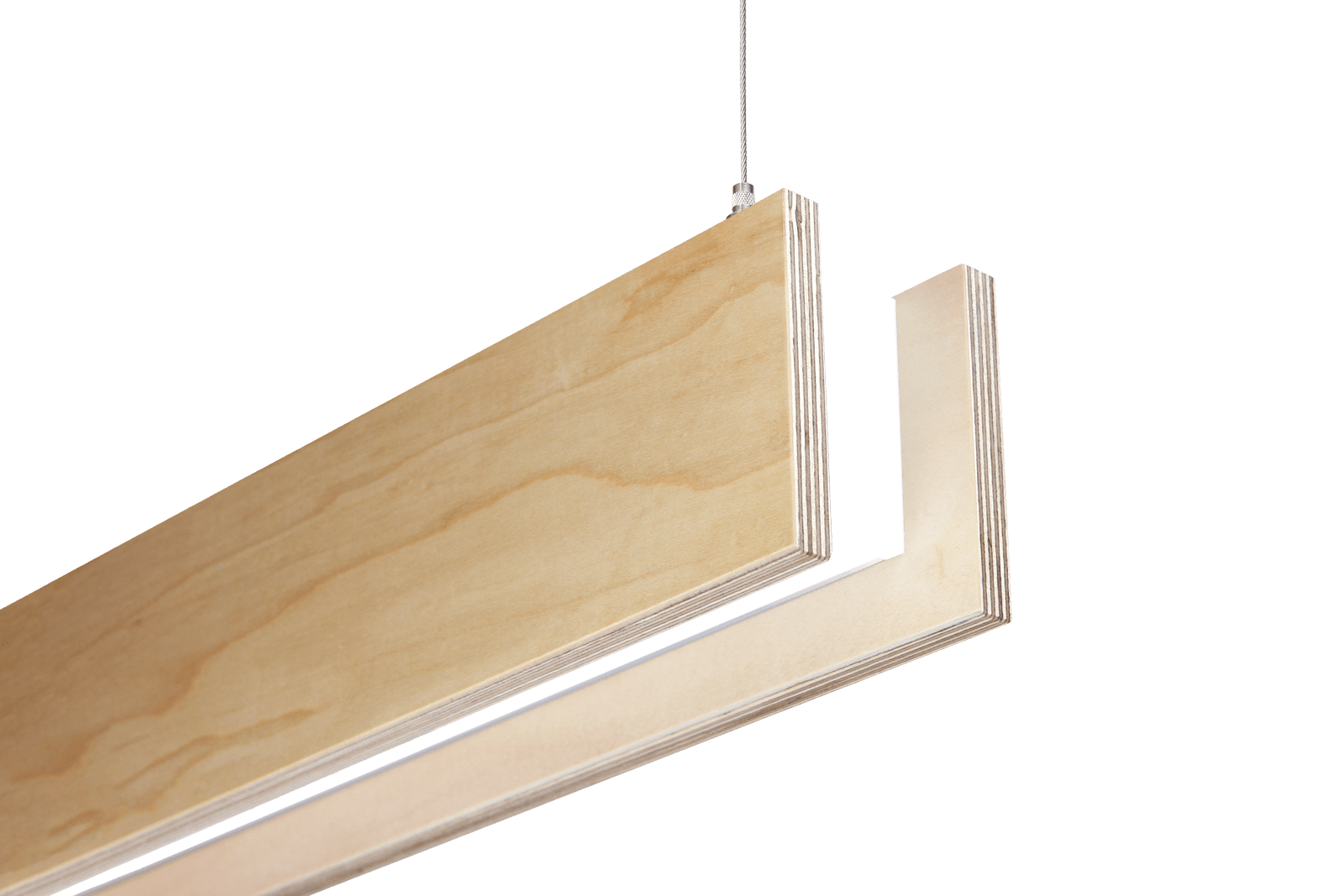

Baltic birch planks are available with a clear shellac finish or water-based stain with clear sealer

Corten steel side cladding is 14 gauge with matte clear powder coat finish and includes button head fasteners in black finish

Optional decorative industrial hardware with black finish available for wood cladding

Fixtures available in nominal lengths of 2’–8’

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 6’ or 8’ nominal, single circuit fixtures with non-dim or 0-10V dimming (consult factory for all other lengths/drivers)

Standard light outputs are 315 and 405 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Parabolic louver option available

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 24-5/8”
  • 3: 35-5/8”
  • 4: 46-5/8”
  • 5: 57-5/8”
  • 6: 68-5/8”
  • 7: 79-5/8”
  • 8: 90-5/8”

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%
  • DLV: electronic low voltage, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • WD: wall mount – direct
  • WI: wall mount – indirect
  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length

Light Output

(lumens per foot)

  • L: low – 315
  • R: regular – 405
  • CF: consult factory for custom output

Run Configuration

  • SN: single

Options

  • ED: emergency driver (4’ or 8’ non-dim or 0-10V only)
  • L: louver (4’ and 8’ only)
  • DH1: deco. hardware – flanged button head*
  • DH2: deco. hardware – flanged hex head*

* Applies to solid wood and plywood cladding

Sections

Shown with cable mount and wood cladding options

REAL80 section illustration with cable mount and wood cladding options

Shown with wall mount and Corten steel cladding options

REAL80 section illustration with wall mount and Corten steel cladding options

Mounting Options

WALL MOUNT – DIRECT ORIENTATION

Mounting option includes:

  • 1-7/8” H x 2-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WD

WALL MOUNT – INDIRECT ORIENTATION

Mounting option includes:

  • 1-7/8” H x 2-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WI

CABLE MOUNT

Mounting option includes:

  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8

Decorative Hardware

FLANGED BUTTON HEAD

Flanged button head decorative industrial hardware in black oxide finish

Ordering Code: DH1

FLANGED HEX HEAD

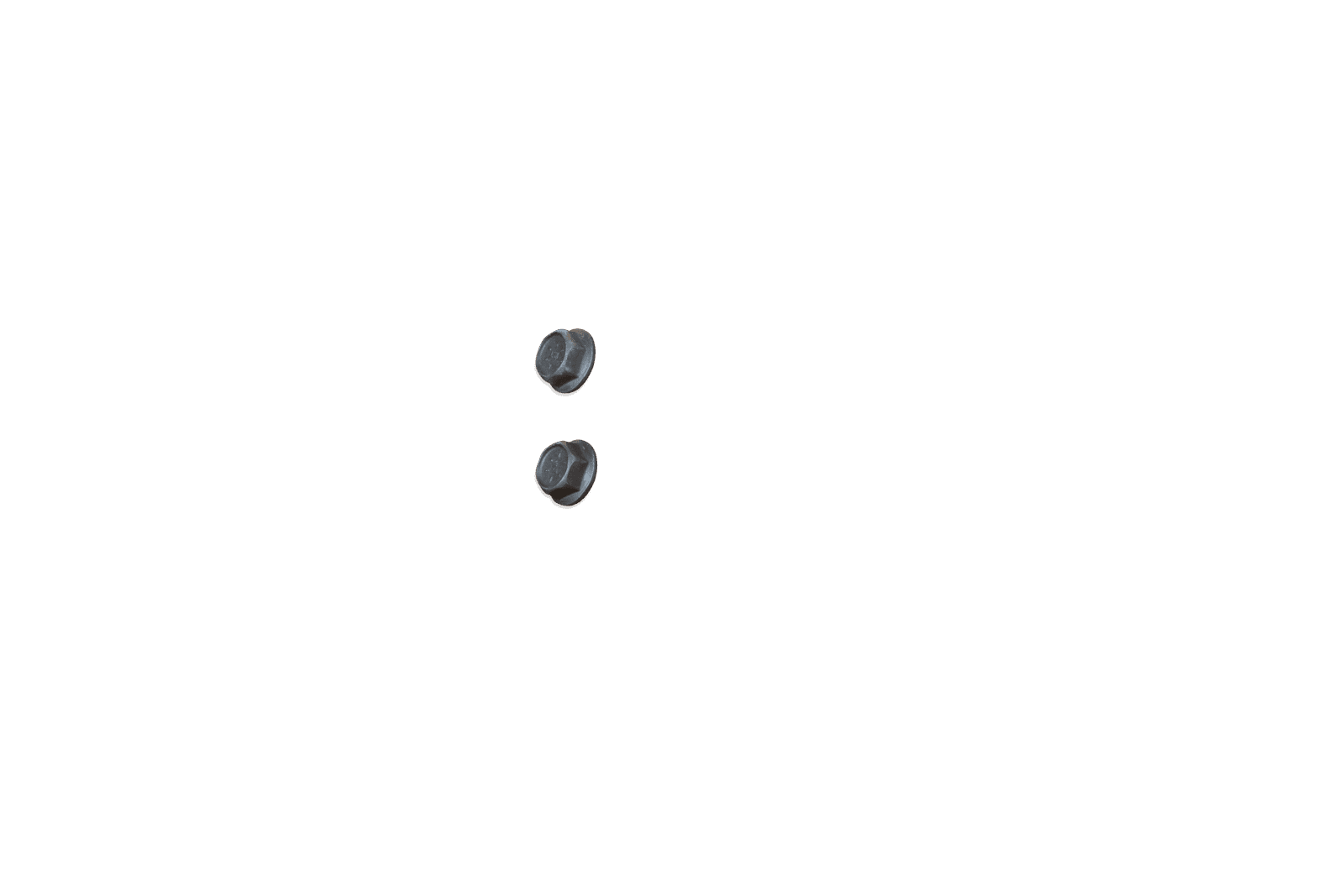

Flanged hex head decorative industrial hardware in black oxide finish

Ordering Code: DH2
