BSS222 photo

BODHI FLUSH LENS BSS222

1” x 2-1/4” LED luminaire, remote driver

CutsheetExplore Bodhi

Downloads

BSS222
Shapes

Features

The Bodhi BSS222 is a remote driven luminaire for general lighting use with a shallow profile of 1” tall by 2-1/4” wide. The extruded aluminum fixture is available for surface, t-grid ceiling and cable suspended mounting. In addition to straight fixture configurations, left, right, and inside corners are available as well as a variety of rectangular shapes.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: R: regular | H: high
  • Lumens/ft.: R: 675 | H: 915
  • Watts/ft.: R: 7.4 | H: 10.2
  • Luminaire Lumens: R: 2727 | H: 3703
  • Efficacy (LPW): R: 92 | H: 90

Note All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, extruded acrylic lens and machined aluminum end caps

Model variations offered for surface, t-grid ceiling and cable suspended applications

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures, continuous runs, corners and rectangular shapes

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard light outputs are 675 and 915 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

Actual dimension dependent on shape and run configuration

  • 24: straight 24-1/8"
  • 36: straight 36-1/8"
  • 48: straight 48-1/8"
  • 60: straight 60-1/8"
  • 72: straight 72-1/8"
  • 84: straight 84-1/8"
  • 96: straight 96-1/8"
  • LR: left/right 90° corner
  • IC: 90° inside corner (available for SM or T1)
  • GR22: 2'x2' square*
  • GR24: 2'x4' rectangle*
  • GR44: 4'x4' square*
  • GR48: 4'x8' rectangle*

* Indirect lens orientation available for C4 or C8 mounting option only

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

Each fixture includes a remote driver matched for fixture length and light output

  • ND: non-dimming
  • D: 0-10V, 10%

Mounting

  • SM: surface mount
  • T1: T-grid 9/16”
  • T2: T-grid 15/16”
  • C4: cable mount 4' cable length
  • C8: cable mount 8’ cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • R: regular – 675
  • H: high – 915

Run Configuration

Not applicable to corner units or GRxx rectangle shapes

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: flush lens

Section

BSS222 section

Mounting Options

BSS222 surface mount
SURFACE MOUNT
  • Use appropriate length #8 bugle head fastener through Ø9/32” holes in housing
  • 10’ low voltage leads exit from the fixture back at an end

Ordering Code: SM

BSS222 t-bar grid ceiling mount - 9/16" and 15/16" width
T-BAR GRID CEILING – 9/16” and 15/16” width
  • Housing secures with t-bar clip directly to ceiling grid, without the need for tools
  • 10’ low voltage leads exit from the fixture back at an end

Ordering Code: T1

BSS222 cable mount
CABLE MOUNT
  • Ø 1/32”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) low voltage cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Canopy mount cable grippers

Ordering Code: C4 and C8

Shapes

Bodhi BSS222 left/right 90° corner photo

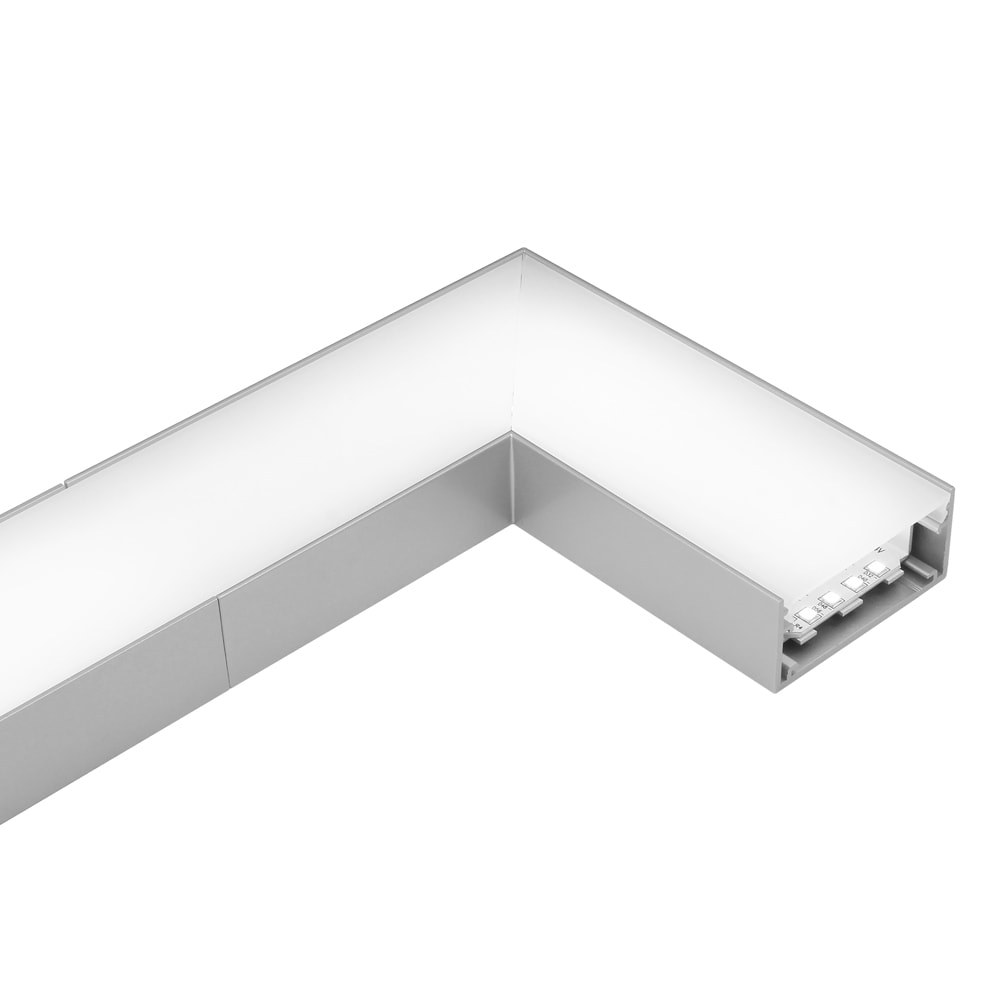

LEFT/RIGHT 90° CORNER

Fixture provided assembled at 90° angle. Powered by an adjacent straight fixture.

Ordering Code: LR

Bodhi BSS222 90° inside corner photo

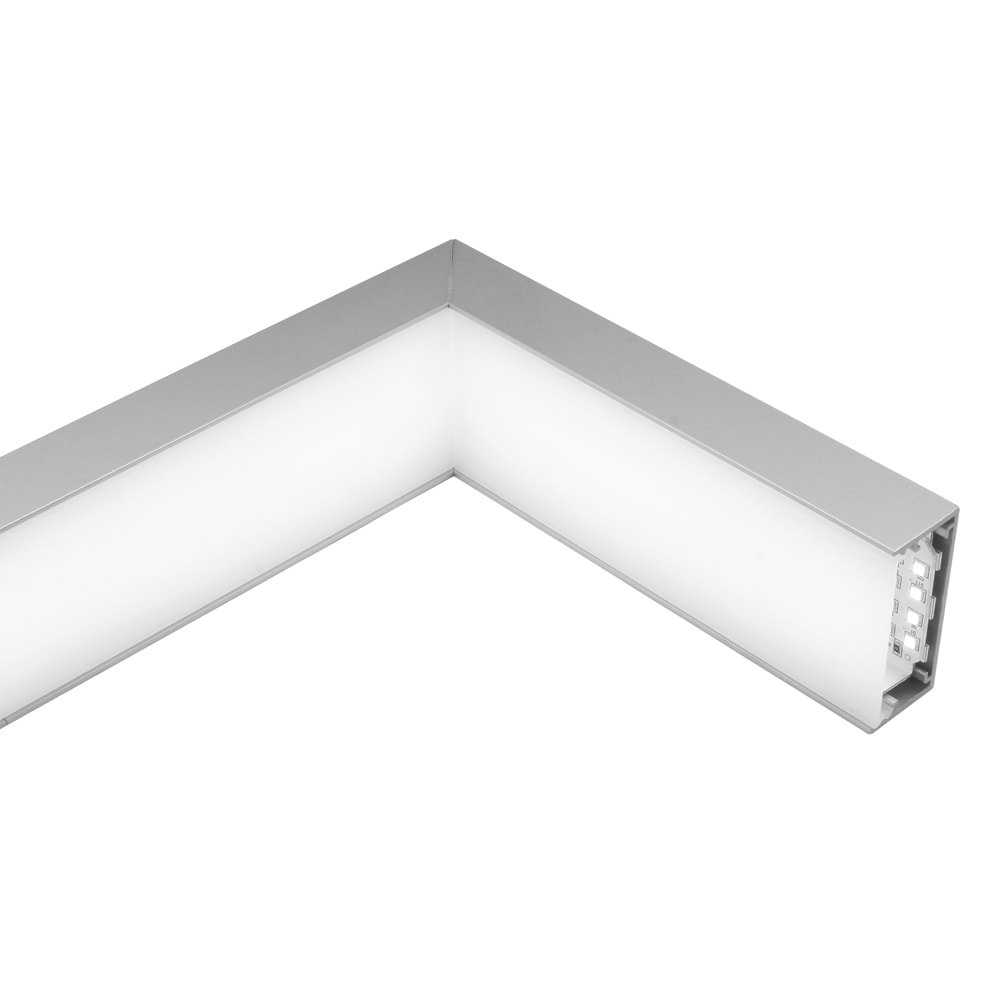

90° INSIDE CORNER

Fixture provided assembled at 90° angle with lenses facing inward. Powered by an adjacent straight fixture. Available for SM, T1 or T2 mounting only

Ordering Code: IC

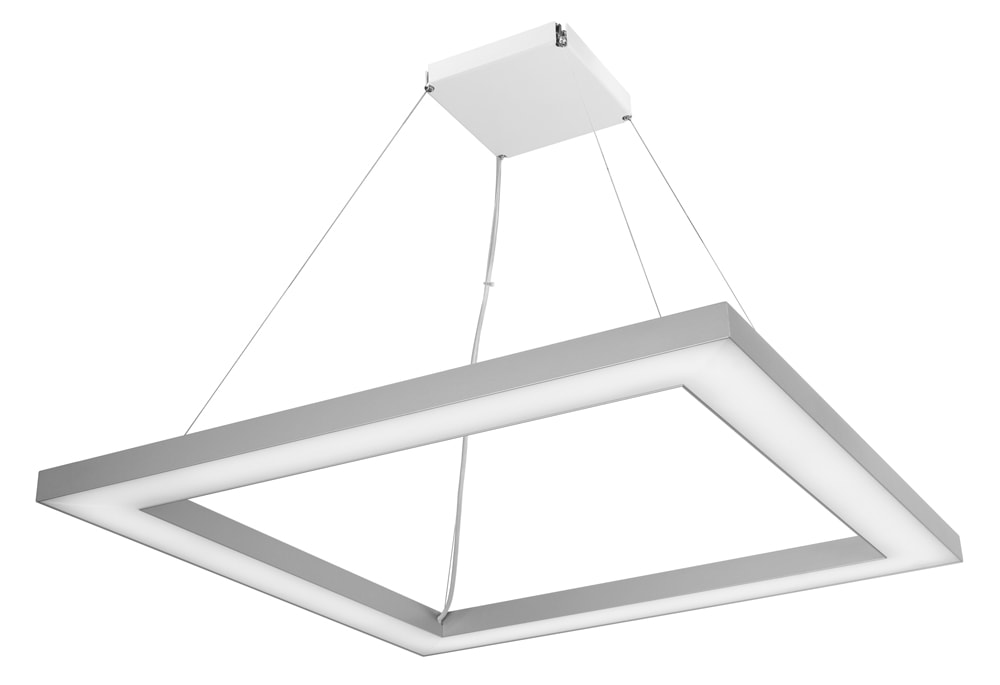

SQUARES AND RECTANGLES

Fixture assembled in the field in 2’x2’ (GR22), 2’x4’ (GR24), 4’x4’ (GR44), 4’x8’ (GR48) nominal rectangular sizes. Available for SM, T1 or T2 mounting only

Ordering Code: GR22, GR24, GR44, GR48
