FATHOM BSW750

3” square corner mount LED luminaire, outdoor locations, remote driver

CutsheetExplore Fathom

Downloads

Features

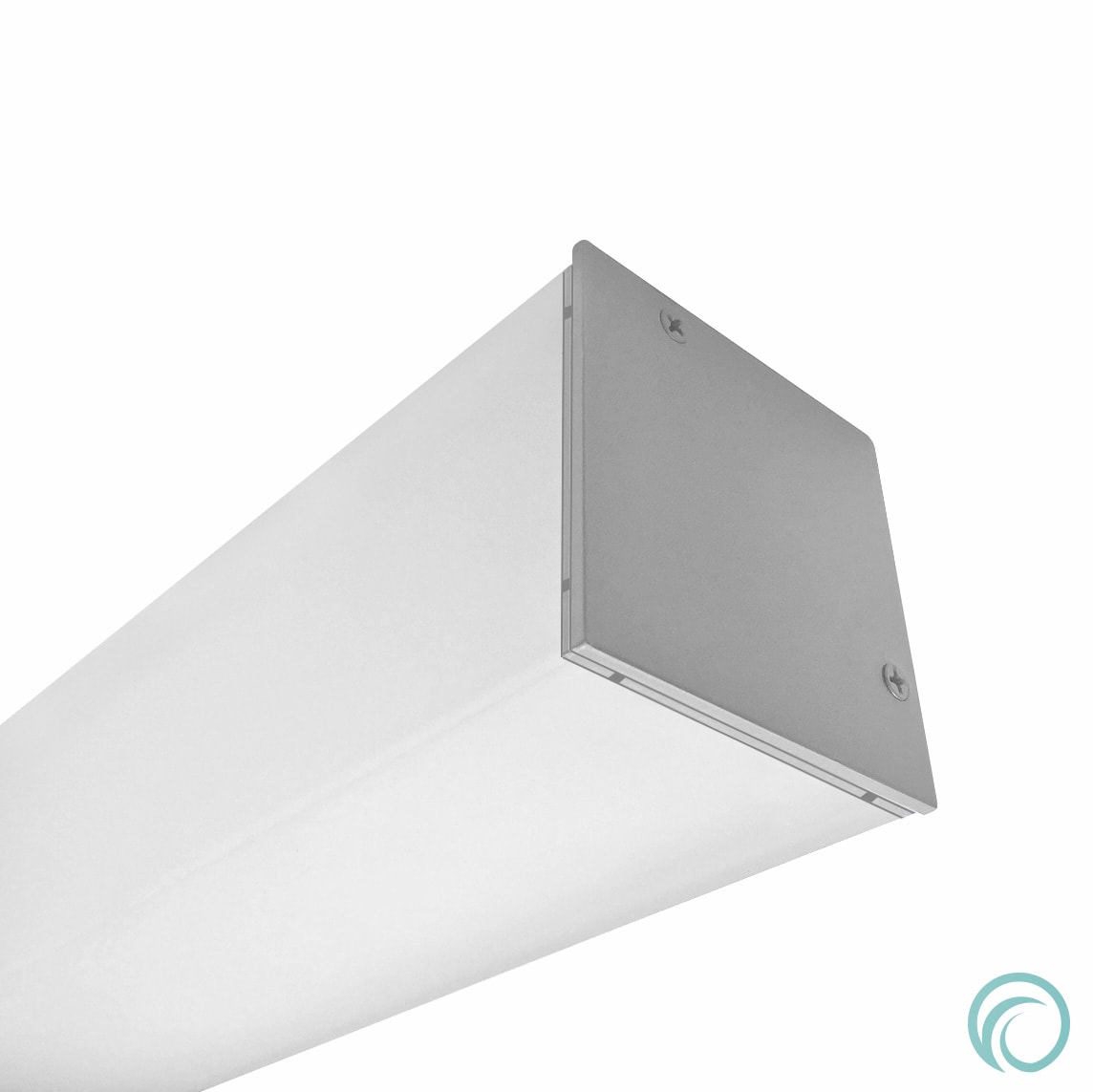

The BSW750 is a corner mount, linear LED luminaire for outdoor locations. The 3” x 3” extruded aluminum surface mount housing tucks into architectural junctures and fitted with a two-sided, frosted acrylic lens. Each fixture is paired with a remote mounted, wet location driver and housing.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 430 | R: 865 | H: 1135
  • Watts/ft.: L: 4.0 | R: 8.0 | H: 10.5
  • Luminaire Lumens: L: 1729 | R: 3459 | H: 4539
  • Efficacy (LPW): L: 108 | R: 108 | H: 108

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and sheet aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Fixtures wired with 10’ low voltage leads and Ø7/8 hole for back feeding

Included remote 120-277V wet location driver offered with 0-10V dimming or non-dim and surface mount aluminum enclosure

Standard outputs are 430, 865 and 1135 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

Actual dimension dependent on run configuration

  • 2: 24-5/8”
  • 3: 36-5/8”
  • 4: 48-5/8”
  • 5: 60-5/8”
  • 6: 72-5/8”
  • 7: 84-5/8”
  • 8: 96-5/8”

Correlated Color Temperature

  • 27: 2700K-80+ CRI
  • 30: 3000K-80+ CRI
  • 35: 3500K-80+ CRI
  • 40: 4000K-80+ CRI

Driver

  • RN: non-dimming
  • RD: 0-10V dimming, 5%

Each fixture includes a remote driver matched for fixture length and light output

Mounting

  • SM: surface mount

Light Output

(lumens per foot)

  • L: low – 430
  • R: regular – 865
  • H: high – 1135

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Section

Mounting Options

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing
  • 10’ low voltage leads exit out the rear at an end

Ordering Code: SM
