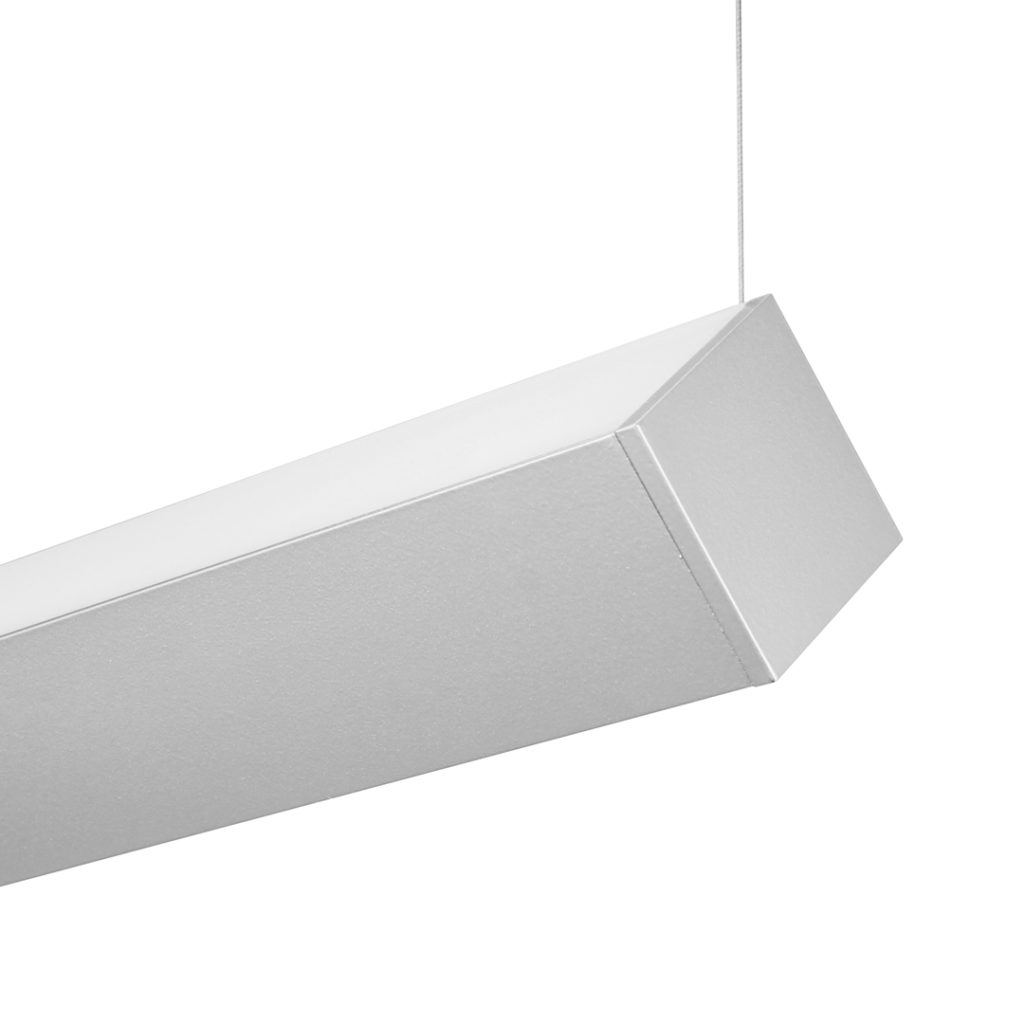

BSS746 photo, direct orientation

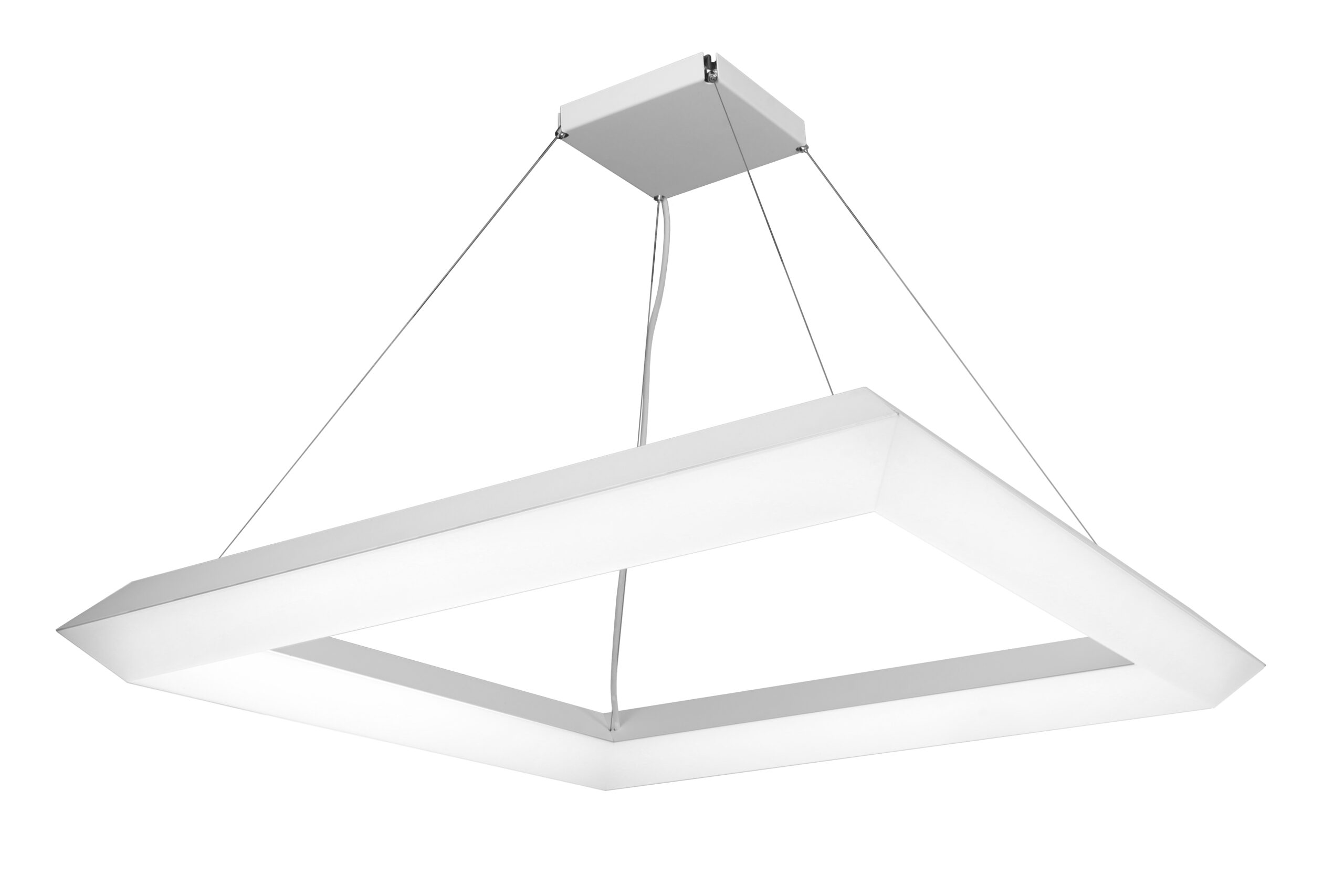

Wedge BSS746

2” diamond profile suspended LED luminaire, remote driver

CutsheetExplore Wedge

Downloads

Features

The Wedge series BSS746 luminaire puts a spin on the typical linear pendant fixture. The 2” x 2” extruded aluminum housing is suspended from the corner edge, positioning the profile in a diamond shape. The two-sided frosted acrylic lens diffuses light in a broad distribution and can be specified in a direct or indirect orientation. Various remote drivers are available, as are several 90 CRI LED color temperatures and outputs.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 600 | R: 815 | H: 1240
  • Watts/ft.: L: 5.1 | R: 7.2 | H: 11.6
  • Luminaire Lumens: L: 2400 | R: 3267 | H: 4961
  • Efficacy (LPW): L: 118 | R: 114 | H: 107

Note: All data reflects fixtures with 3500K LEDs

Lens Options

BSS746 photo, direct orientation
Direct lens orientation

Ordering Code: D

BSS746 photo, indirect orientation
Indirect lens orientation

Ordering Code: I

Specifications

Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Wired with 10’ low voltage power cable

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard light outputs are 600, 815 or 1240 lumens per foot

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

Actual dimension dependent on run configuration

  • 23: 22-5/8"
  • 34: 33-5/8"
  • 45: 44-5/8"
  • 56: 55-5/8"
  • 67: 66-5/8"
  • 78: 77-5/8"
  • 89: 88-5/8"
  • CF: consult factory for custom length

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive, 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • C4: cable mount 4' cable length
  • C8: cable mount 8' cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 600
  • R: regular – 815
  • H: high – 1240
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • D: direct lens orientation
  • I: indirect lens orientation

Sections

Direct lens orientation

BSS746 section, direct orientation

Indirect lens orientation

BSS746 section, indirect orientation

Mounting Options

BSS746 cable mount
Cable Mount

Mounting option includes:

  • Ø 1/32”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) low voltage cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Canopy mount cable grippers

Ordering Code: C4 and C8
