TASK BSS305

Under cabinet LED luminaire

CutsheetExplore Task

Downloads

Features

Quality LED illumination and several control options make the BSS305 luminaire an ideal task light. The robust, 23”–56” nominal length fixtures feature an acrylic lens, multiple light output choices, dimming driver capability and an occupancy sensor option.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular
  • Lumens/ft.: L: 545 | R: 740
  • Watts/ft.: L: 5.6 | R: 7.9
  • Luminaire Lumens: L: 2000 | R: 2722
  • Efficacy: L: 97 | R: 96

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fully assembled housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver, bronze and primer powder coat, applied post production (consult factory for custom finishes)

Knock-outs accept standard electrical fittings (by others)

Available in nominal lengths of 2’–5’

Includes frosted acrylic lay in lens

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Options include 120V or 277V on/off rocker switch and passive infrared occupancy sensor

Standard outputs are 545 and 740 lumens per foot

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-3/16”
  • 3: 33-3/16”
  • 4: 44-3/16”
  • 5: 55-3/16”

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/ fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Light Output

(lumens per foot)

  • L: low – 545
  • R: regular – 740
  • CF: consult factory for custom wattage

Lens

  • F: frosted acrylic

Options

  • SW1: rocker switch 120V
  • SW2: rocker switch 277V
  • OC: occupancy sensor

Section

BSS305 section illustration

Options

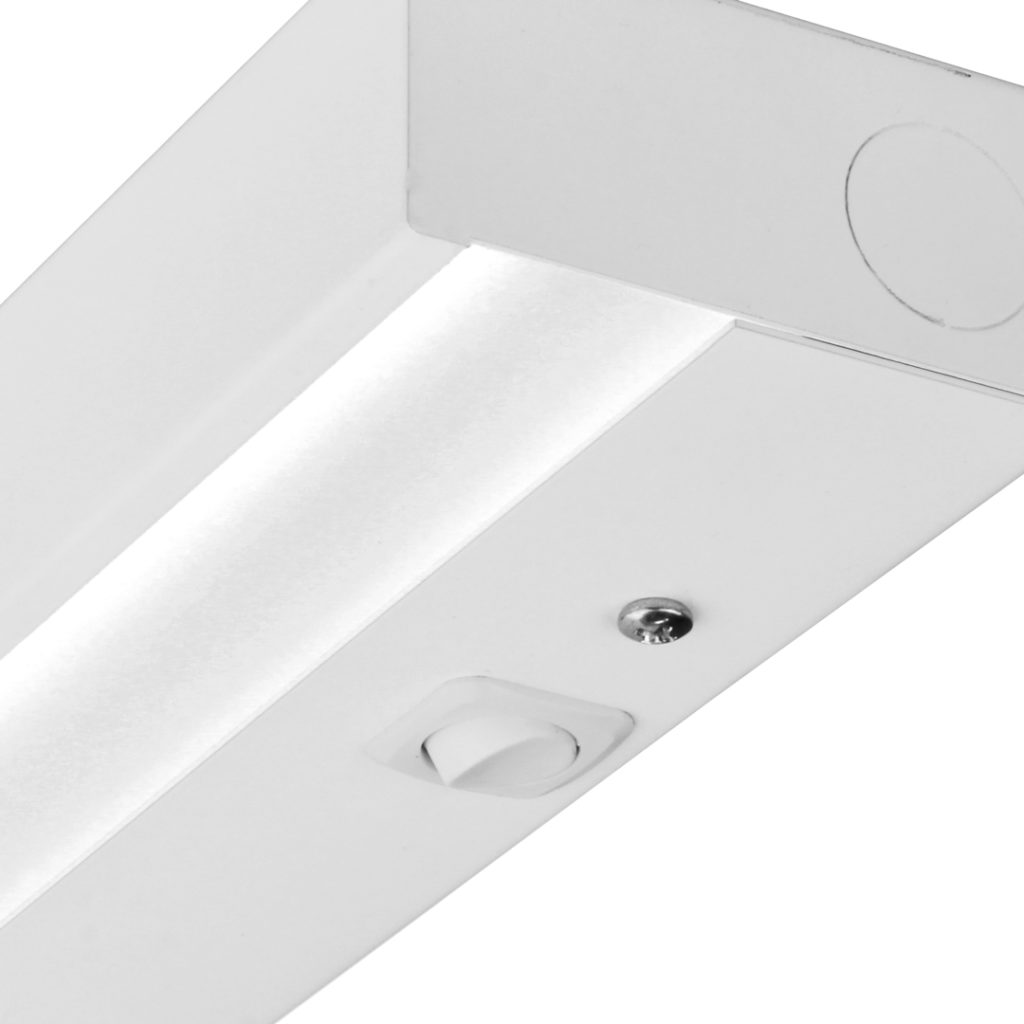

BSS305 photo with rocker switch 120V
Rocker Switch 120V

On/off 120V, 10 Amp rocker switch in white or black finish (dependent on fixture finish)

Ordering Code: SW1

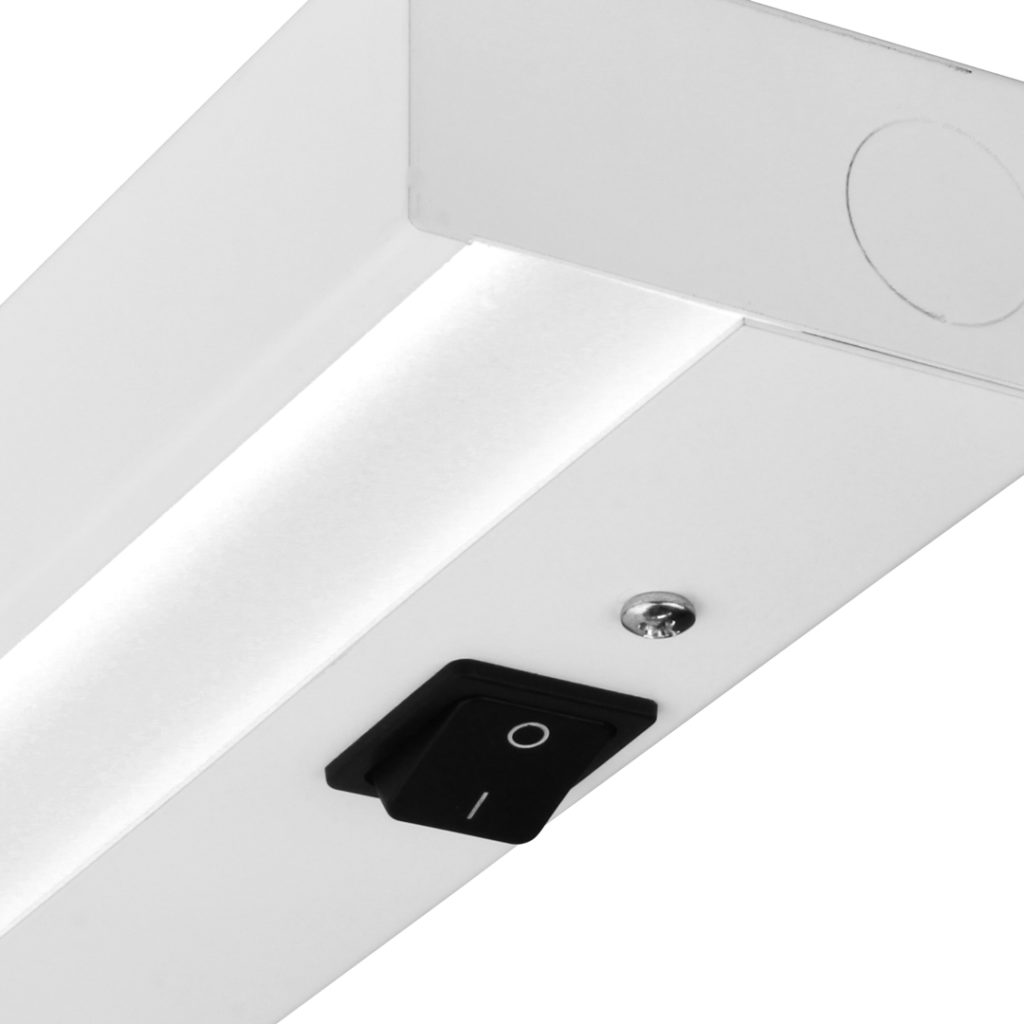

BSS305 photo with rocker switch 277V
Rocker Switch 277V

On/off 277V, 20 Amp rocker switch in black finish only

Ordering Code: SW2

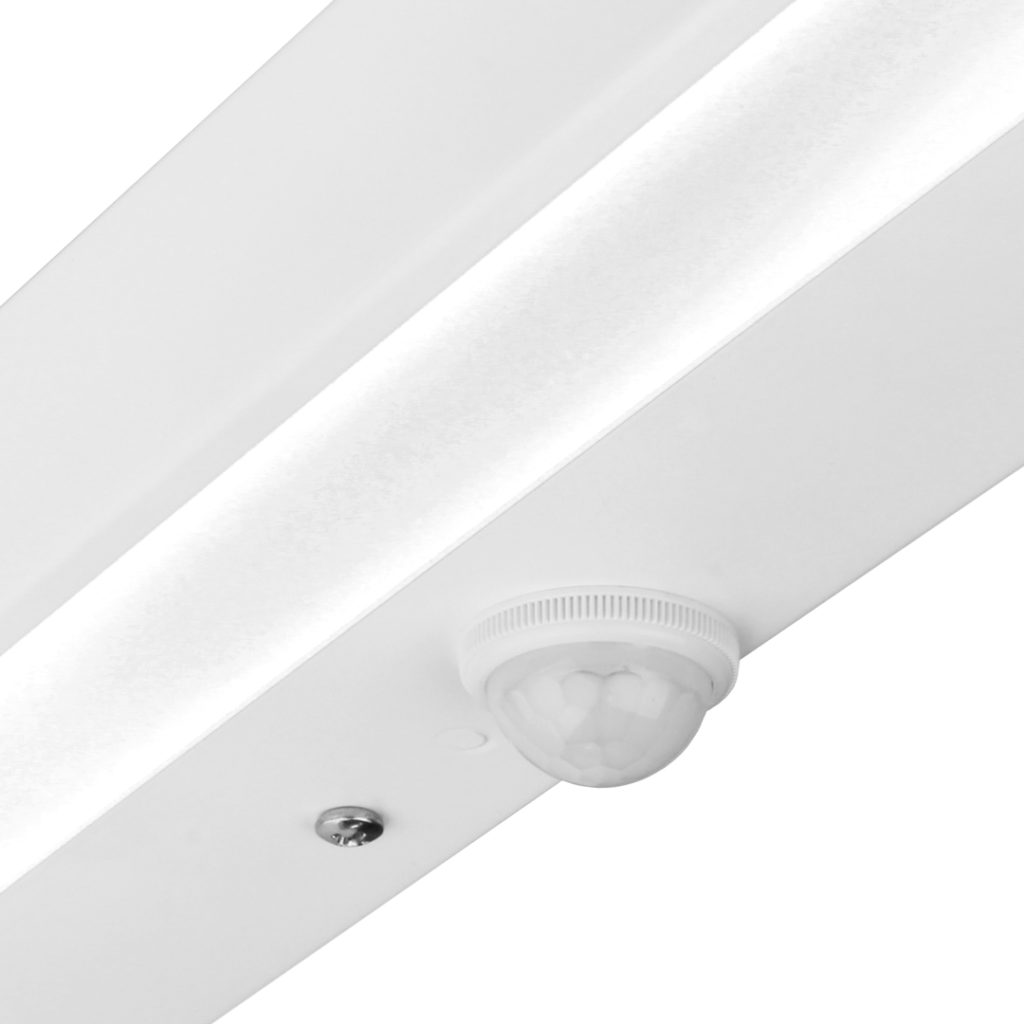

BSS305 photo with occupancy sensor
Occupancy Sensor

Passive infrared occupancy sensor with hold-off daylighting adjustment (10–120 foot candles) and time delay adjustment from 30 seconds to 30 minutes

Ordering Code: OC
