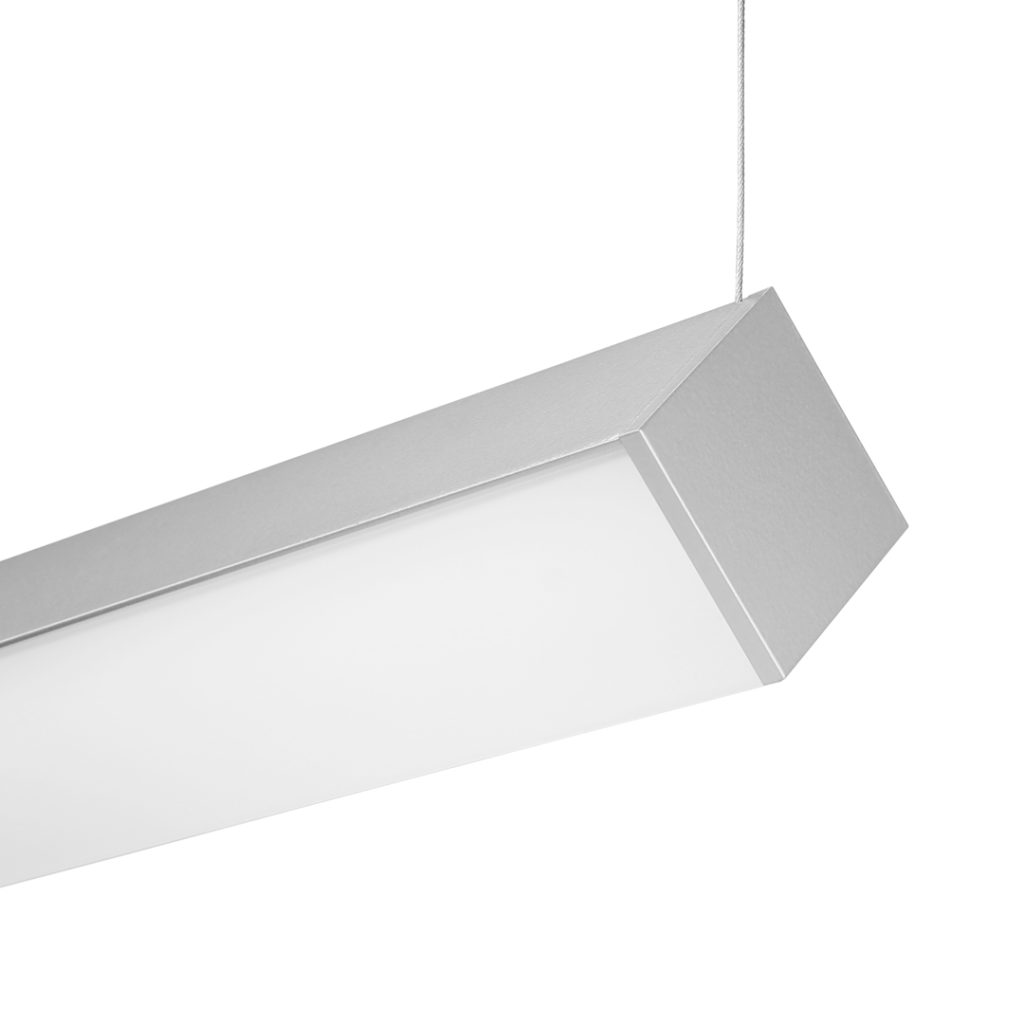

BSS745 photo

WEDGE BSS745

2” square corner mount LED luminaire

CutsheetExplore Wedge

Downloads

Features

The BSS745 is a corner mount, linear LED luminaire well suited for perimeter and stairwell lighting. The 2” x 2” extruded aluminum housing tucks into architectural junctures and is fitted with a two-sided, frosted acrylic lens. When installed, virtually no fixture housing is visible, leaving the evenly illuminated lens to make a strong visual statement.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 600 | R: 815 | H: 1240
  • Watts/ft.: L: 5.1 | R: 7.2 | H: 11.6
  • Luminaire Lumens: L: 2400 | R: 3267 | H: 4961
  • Efficacy (LPW): L: 118 | R: 114 | H: 107

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Wired with 10’ low voltage leads

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard light outputs are 600, 815 or 1240 lumens per foot

LEDs available in 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 23: 22-5/8"
  • 28: 28-1/8"
  • 34: 33-5/8"
  • 39: 39-1/8"
  • 45: 44-5/8"
  • 50: 50-1/8"
  • 56: 55-5/8"
  • 61: 61-1/8"
  • 67: 66-5/8"
  • 72: 72-1/8"
  • 78: 77-5/8"
  • 83: 83-1/8"
  • 89: 88-5/8"
  • RUN: Specify run length to the nearest 1”. Factory will configure using the least quantity of fixtures as close to the desired run length as possible. Run to be confirmed with a shop drawing.

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive, 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Each fixture includes a remote driver matched for fixture length and light output.

Mounting

  • SM: surface mount
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 600
  • R: regular – 815
  • H: high – 1240
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Section

BSS745 section illustration

Mounting Options

BSS745 surface mount illustration
Surface Mount
  • Use appropriate length #8 bugle head fastener through Ø7/32” holes in housing
  • 10’ low voltage leads exit out one of two provided feed holes at an end

Ordering Code: SM
