TUBULAR BSS500

Ø1-3/8” suspended LED luminaire, remote driver

CutsheetExplore Tubular

Downloads

BSS500

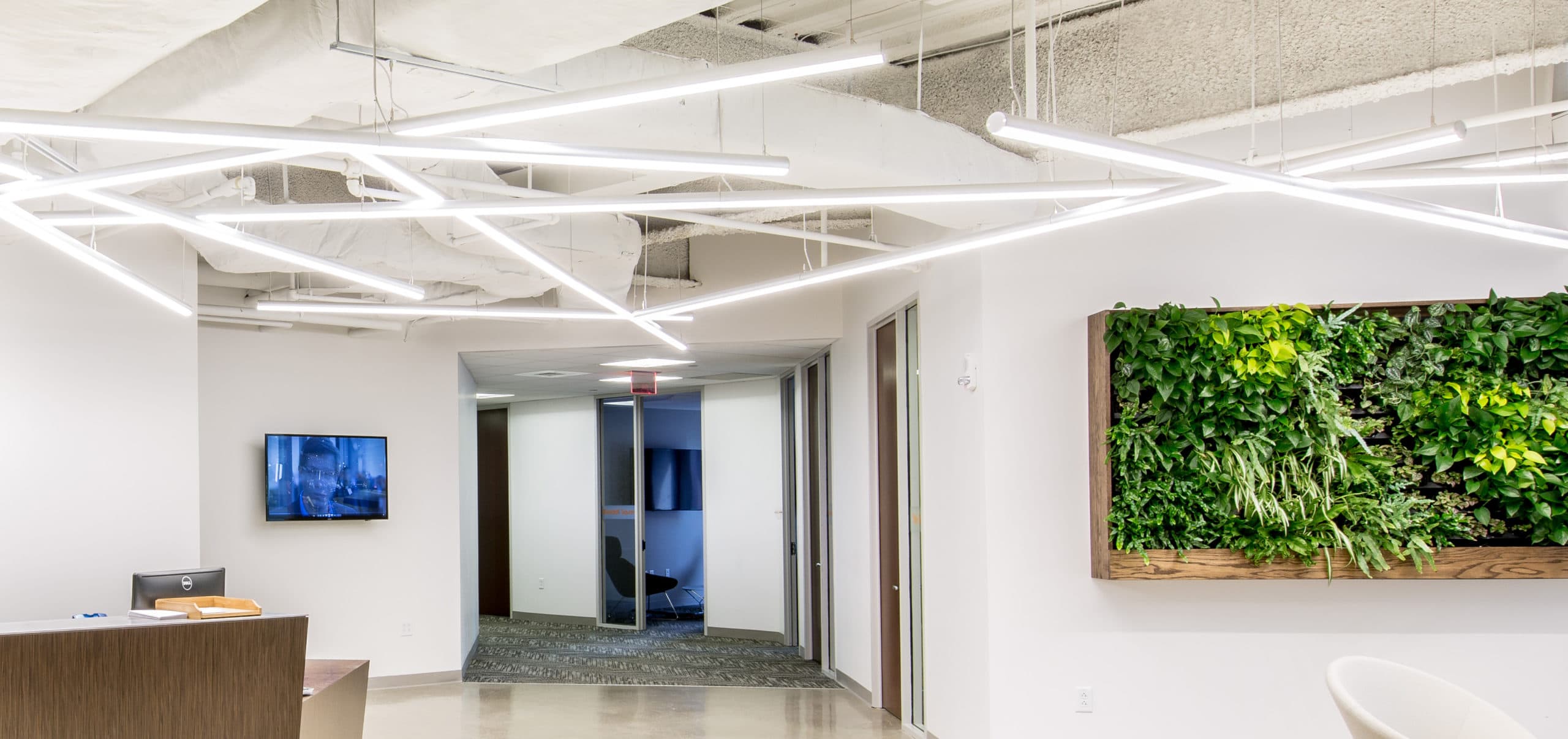

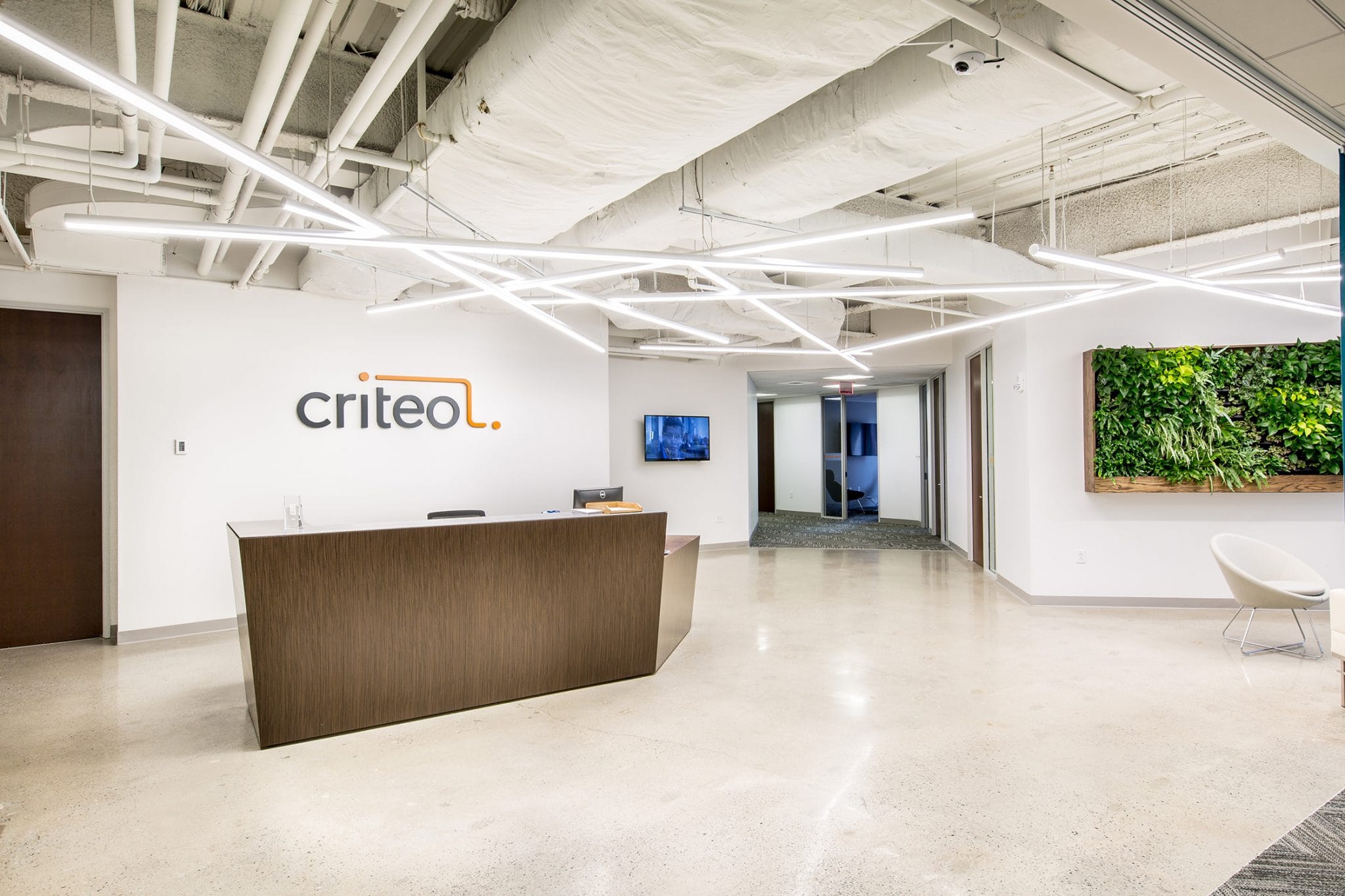

Inspiration

Features

The BSS500 is a suspended linear LED luminaire with remote driver for general lighting applications. The Ø1-3/8” extruded aluminum housing is fitted with tightly spaced, 90+ CRI diodes and a frosted acrylic lens to produce seamless, diffuse illumination. Machined aluminum end caps finish off the fixture ends.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular
  • Lumens/ft.: L: 400 | R: 520
  • Watts/ft.: L: 3.9 | R: 5.6
  • Luminaire Lumens: L: 1675 | R: 2175
  • Efficacy (LPW): L: 102 | R: 92

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, frosted acrylic extruded lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard outputs are 400 and 525 lumens per foot

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 23: 22-1/2"
  • 26: 26-3/16"
  • 30: 29-7/8"
  • 34: 33-1/2"
  • 37: 37-3/16"
  • 41: 40-7/8"
  • 45: 44-1/2"
  • 48: 48-3/16"
  • 52: 51-7/8
  • 56: 55-1/2"
  • 59: 59-3/16"
  • 63: 62-7/8"
  • 67: 66-1/2"
  • 70: 70-3/16"
  • 74: 73-7/8"
  • 78: 77-1/2"
  • 81: 81-3/16"
  • 85: 84-7/8"
  • 89: 88-1/2"
  • 92: 92-3/16"
  • 96: 95-7/8"

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%
  • DLV: electronic low voltage, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive, 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Each fixture includes a remote driver matched for fixture length and light output

Mounting

  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 400
  • R: regular – 520
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Section

BSS500 section illustration

Mounting Options

BSS500 cable mount illustration
Cable Mount
  • Ø 1/16” x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) low voltage cable in coordinating finish
  • Bracket bars
  • Ø 5” white canopies
  • Canopy mount cable grippers

Ordering Code: C4 and C8
