FATHOM BSW214

3” wide LED luminaire with flush lens, outdoor locations

CutsheetExplore Fathom

Downloads

Features

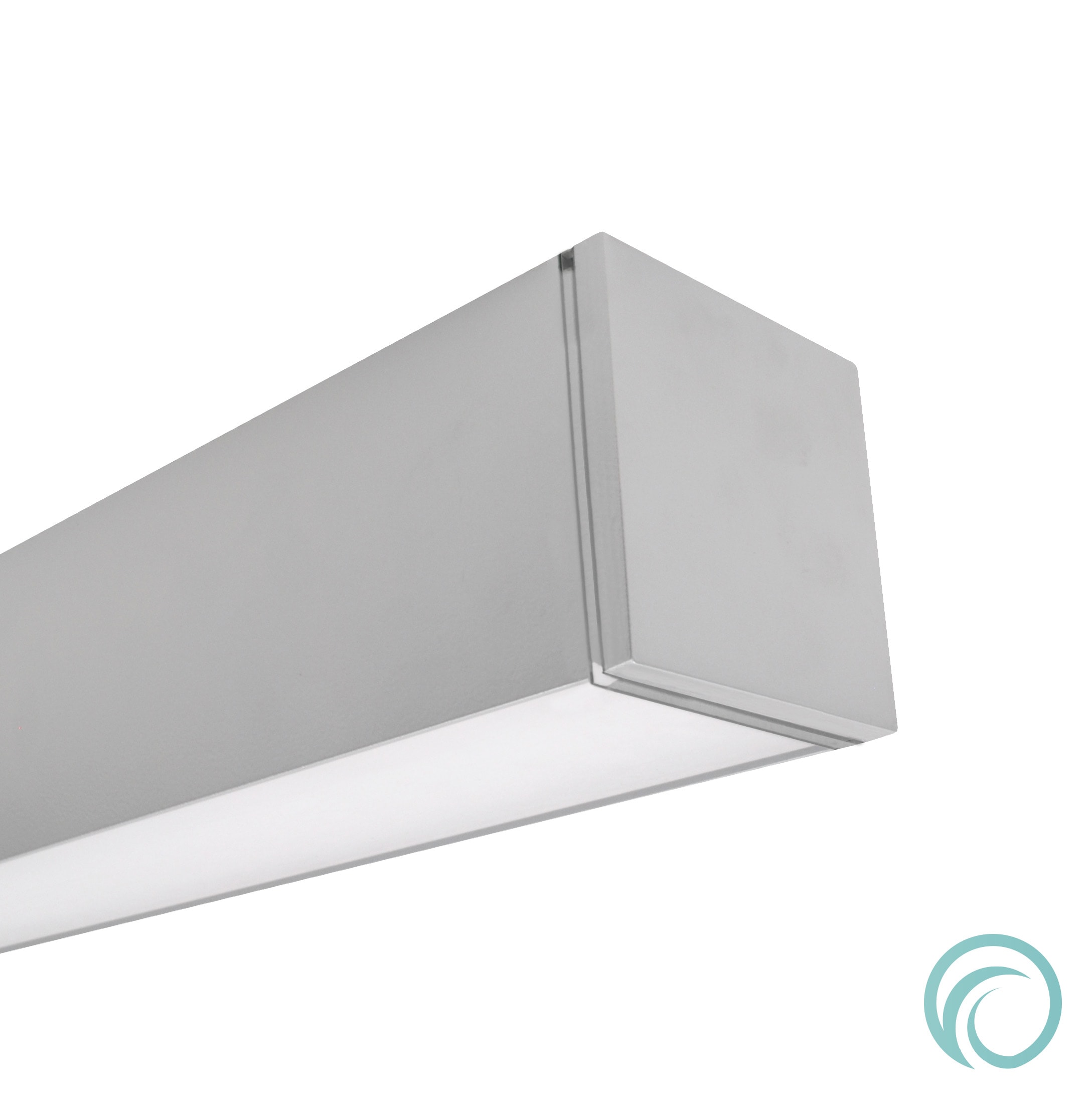

The BSW214 is a linear LED luminaire for outdoor lighting applications. The 3” square extrusion is fitted with a flush, frosted lens and machined aluminum end caps.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 390 | R: 775 | H: 1000
  • Watts/ft.: L: 4.0 | R: 8.0 | H: 10.3
  • Luminaire Lumens: L: 1554 | R: 3104 | H: 3995
  • Efficacy: L: 98 | R: 97 | H: 97

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum, extruded, frosted acrylic lens and machined aluminum end caps

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available for surface or wall mounting in nominal lengths of 2’–8’ single fixtures and continuous runs

Housing provided with a Ø7/8 hole for back feeding

Standard integral 120-277V wet location driver offered with 0-10V dimming or non-dim

Standard outputs are 390, 775 and 1000 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 24-5/8”
  • 3: 36-5/8”
  • 4: 48-5/8”
  • 5: 60-5/8”
  • 6: 72-5/8”
  • 7: 84-5/8”
  • 8: 96-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-80+ CRI
  • 30: 3000K-80+ CRI
  • 35: 3500K-80+ CRI
  • 40: 4000K-80+ CRI

Driver

  • IN: non-dimming
  • ID: 0-10V dimming, 5%

Mounting

  • SM: surface mount
  • WD: wall mount – direct
  • WI: wall mount – indirect

Light Output

(lumens per foot)

  • L: low – 390
  • R: regular – 775
  • H: high – 1000

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Mounting Options

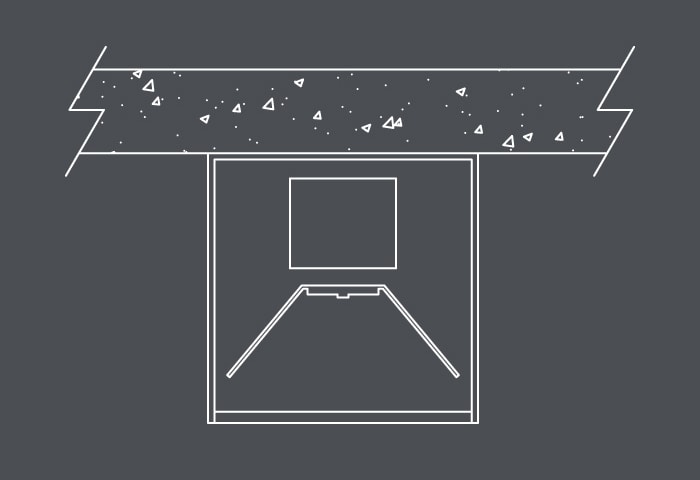

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing
  • Power entry through Ø7/8 hole on the back at an end

Ordering Code: SM

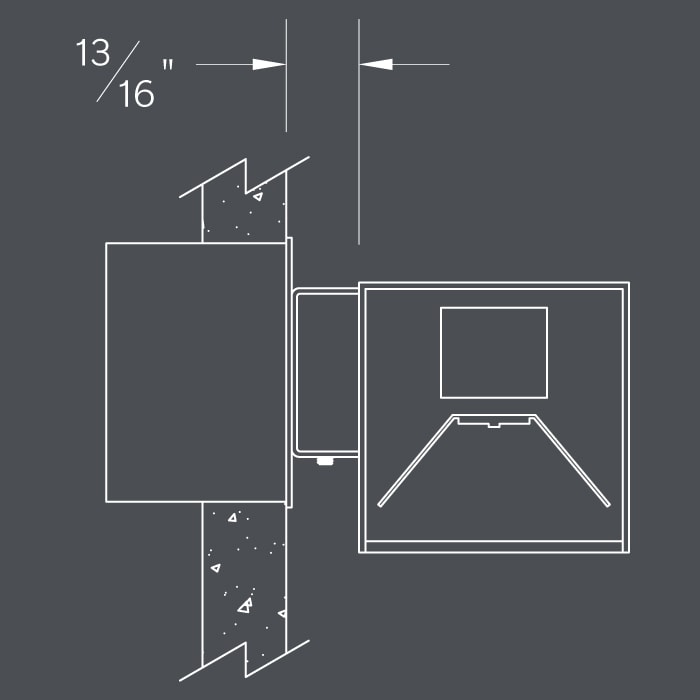

Wall Mount – Direct Orientation
  • 1-7/8” H x 4-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface
  • Power feed mounting point includes a 1/16” aluminum plate for interfacing with a single gang outdoor electrical box

Ordering Code: WD

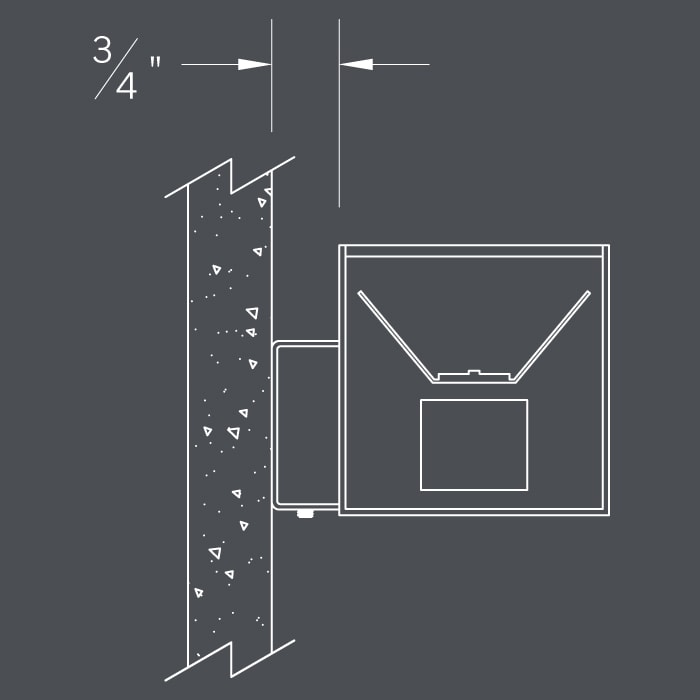

Wall Mount – Indirect Orientation
  • 1-7/8” H x 4-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface
  • Power feed mounting point includes a 1/16” aluminum plate for interfacing with a single gang outdoor electrical box

Ordering Code: WI
