BSS755 fixture

WEDGE BSS755

4-1/4” square corner mount LED fixture

CutsheetExplore Wedge

Downloads

BSS755

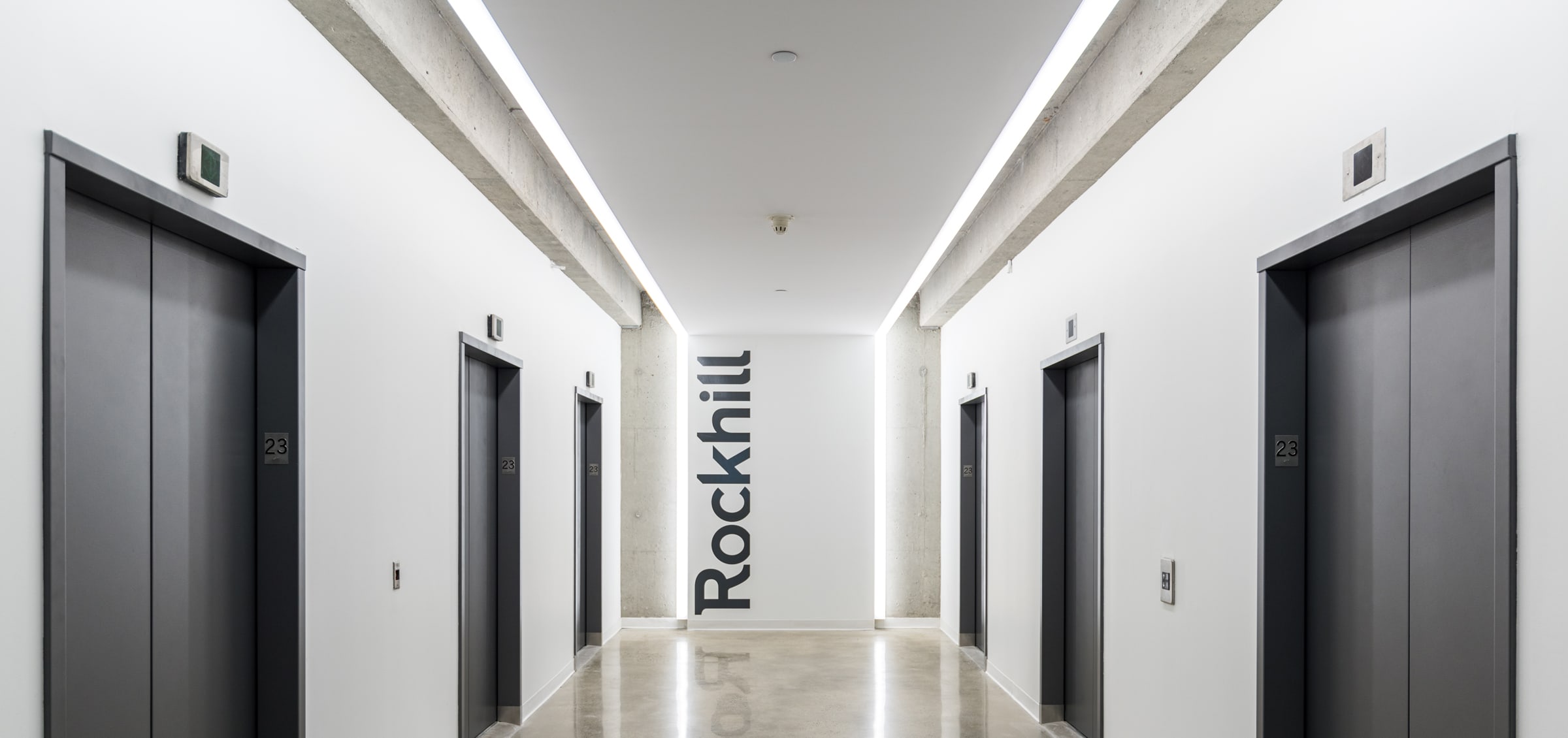

Inspiration

Features

The BSS755 is a corner mount, linear LED luminaire well suited for perimeter and stairwell lighting. The 4-1/4” x 4-1/4” extruded aluminum housing tucks into architectural junctures and fitted with a two-sided, frosted acrylic lens. When installed, virtually no fixture housing is visible, leaving the evenly illuminated lens to make a strong visual statement.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 770 | R: 1000 | H: 1310
  • Watts/ft.: L: 6.0 | R: 9.4 | H: 13.6
  • Luminaire Lumens: L: 2881 | R: 3742 | H: 4917
  • Efficacy (LPW): L: 128 | R: 107 | H: 96

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and sheet aluminum end caps

Model variations offered for surface and pendant mount applications

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’-8’ single fixtures and continuous runs

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.)

One Ø 7/8” knock-out provided on both the top and back sides at the left end of the fixture

Standard 120-277V integral driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 4’ or 8’ nominal non-dim or 0-10V (consult factory for all other lengths/ drivers)

Standard light outputs are 770, 1000 or 1310 lumens per foot

LEDs available in 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-9/16”
  • 3: 33-5/8”
  • 4: 44-11/16”
  • 5: 55-3/4”
  • 6: 66-13/16”
  • 7: 77-7/8”
  • 8: 88-15/16”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 30: 3000K - 80+ CRI
  • 35: 3500K - 80+ CRI
  • 40: 4000K - 80+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • HE: Lutron EcoSystem, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • H2: Lutron Hi-lume 2-wire forward phase, 1%, (120V ONLY)
  • E5: Lutron EcoSystem 5-Series, 5%
  • EL: eldoLED ECOdrive 0-10V, 1%

Mounting

  • SM: surface mount
  • PM18: pendant mount 18” stem length
  • PM24: pendant mount 24” stem length
  • PM30: pendant mount 30” stem length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 770
  • R: regular – 1000
  • H: high – 1310
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Options

  • ED: emergency driver (4’ or 8’ non-dim or 0-10V only)

Mounting Options

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

Pendant Mount
  • Ø 1/2x” x 18” (PM18), 24” (PM24) or 30” (PM30) white steel stems
  • 18 gauge power leads 12” longer than the stem length (on SN, ST fixtures)
  • Bracket bars and hex nuts
  • Ø 5” white canopies with integrated slip ring

Ordering Code: PM18, PM24, PM30
