YOX BSS610

2” wide multi-axis direct LED luminaire system

CutsheetExplore YoX

Downloads

CUSTOMIZED OR
PRE-PACKAGED

Features

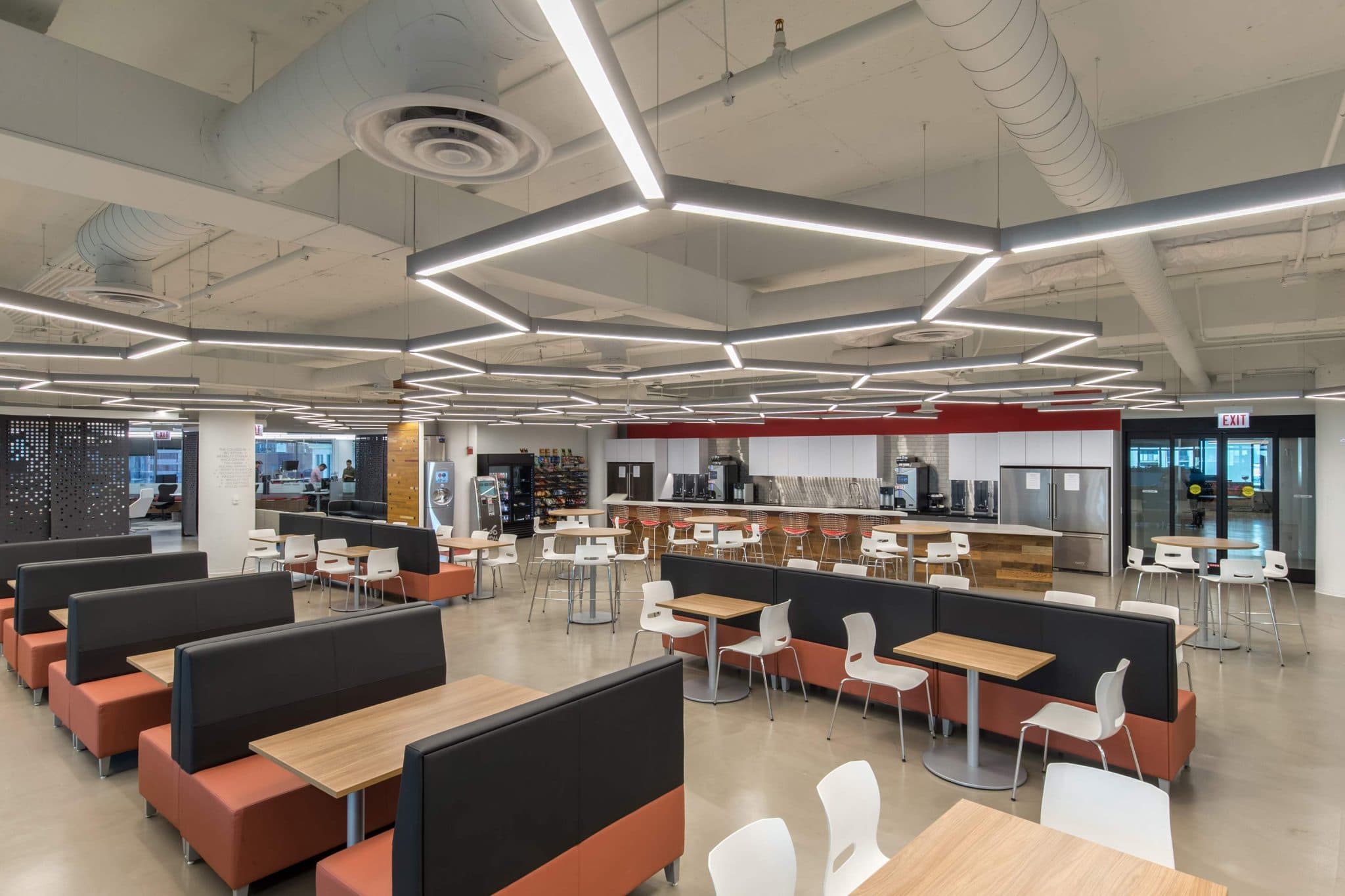

Create an endless variety of multi-directional fixture runs and geometric shapes with the BS610 YoX linear LED system. This luminaire family consists of modular 2” wide by 3” tall extruded aluminum housings and joining modules in Straight, “L”, “T”, “Y”, and “X” configurations. Fixtures can be surface or cable suspended and optioned with a variety of dimming drivers and occupancy sensor.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 485 | R: 625 | H: 825
  • Watts/ft.: L: 5.6 | R: 7.8 | H: 10.8
  • Luminaire Lumens: L: 1795 | R: 2331 | H: 3063
  • Efficacy (LPW): L: 86 | R: 81 | H: 76

Note: All data reflects fixtures with 3500K LEDs

Specifications

Fixture housings constructed an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps

Mounting variations offered for surface or cable suspended applications

Fixture housings require BSS610-M Joining Modules for mounting and supplying power (specified separately)

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Fixture modules available in nominal lengths of 2’–8’ and are provided with 18 ga. wiring harnesses (6 Amp max. load) at a suitable length for connecting to adjacent fixtures or power modules (consult factory for runs requiring multiple circuits, sensor integration, etc.)

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 4’–8’ fixtures (remote battery backup available for shorter fixture lengths – ordered separately, consult factory for details)

Standard light outputs are 485, 625 and 825 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, all with a typical 90+ CRI and color consistency within a 3 step MacAdam ellipse

Life: 50,000 hours L70

UL and C-UL listed for dry and damp locations

Limited five year warranty

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-1/8”
  • 3: 33-1/8”
  • 4: 44-1/8”
  • 5: 55-1/8”
  • 6: 66-1/8”
  • 7: 77-1/8”
  • 8: 88-1/8”

Correlated Color Temperature

  • 27: 2700K-90+CRI
  • 30: 3000K-90+CRI
  • 35: 3500K-90+CRI
  • 40: 4000K-90+CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%
  • DLV: electronic low voltage, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • SM: surface mount
  • CM: cable mount
  • CF: consult factory for custom mounting

Run Configuration

  • AD: adder
  • TR: terminator

For single fixtures and straight, continuous runs, see model BSS208

Options

  • ED: emergency driver (44”–88” fixtures)
  • OC: occupancy sensor

Layout Examples

YoX BSS610 layout examples

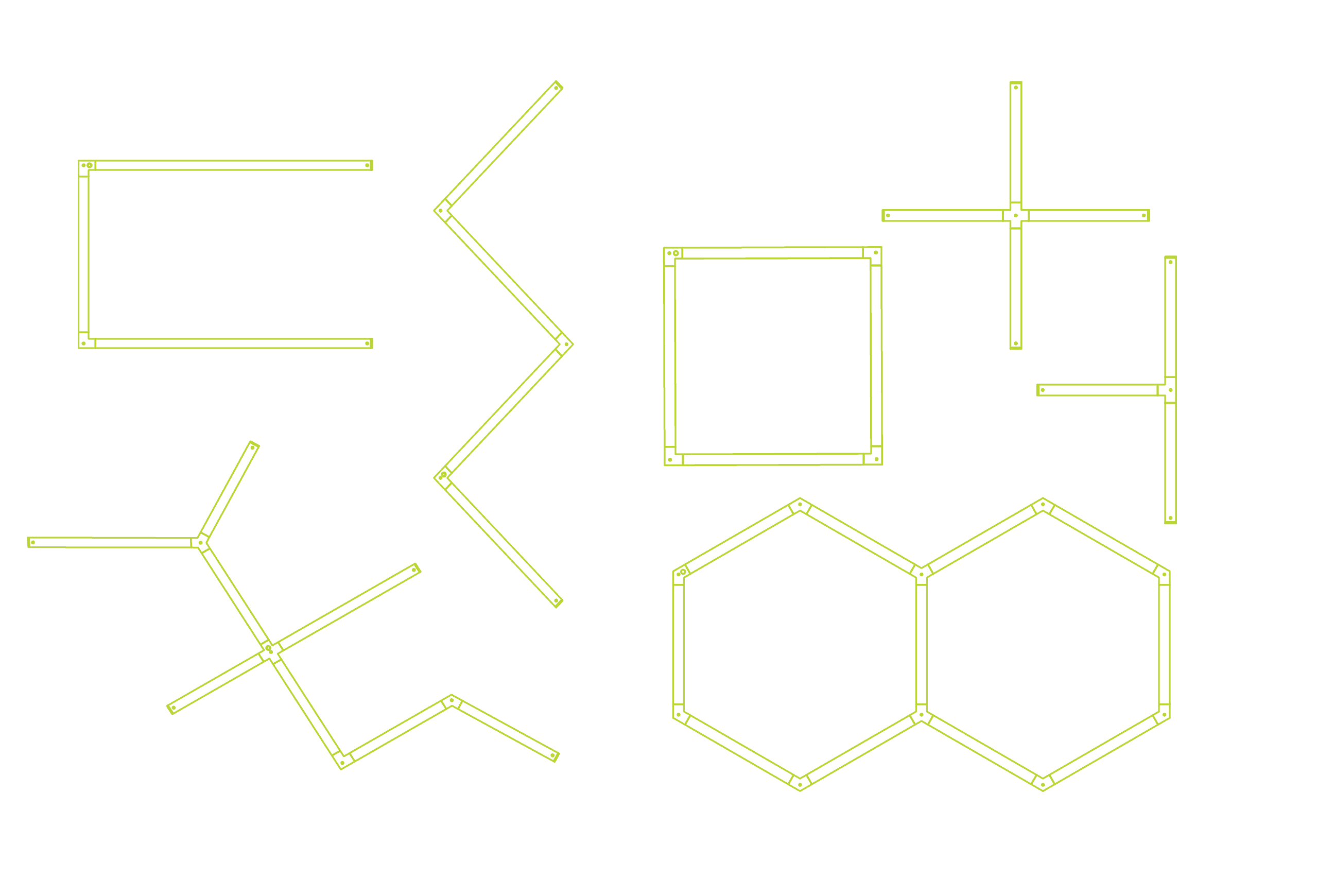

Pictured are a few examples of layouts that can be created with YoX Fixtures and Joining Modules. Use any combination of fixture lengths and module configurations to create unique shapes and designs. IMPORTANT: Provide finished layout to Bartco Lighting for verification.
