Aleeta BC8897
2” wide linear LED luminaire with 1/2” wide illuminated drop lens
CutsheetExplore AleetaDownloads
- Documentation
Features

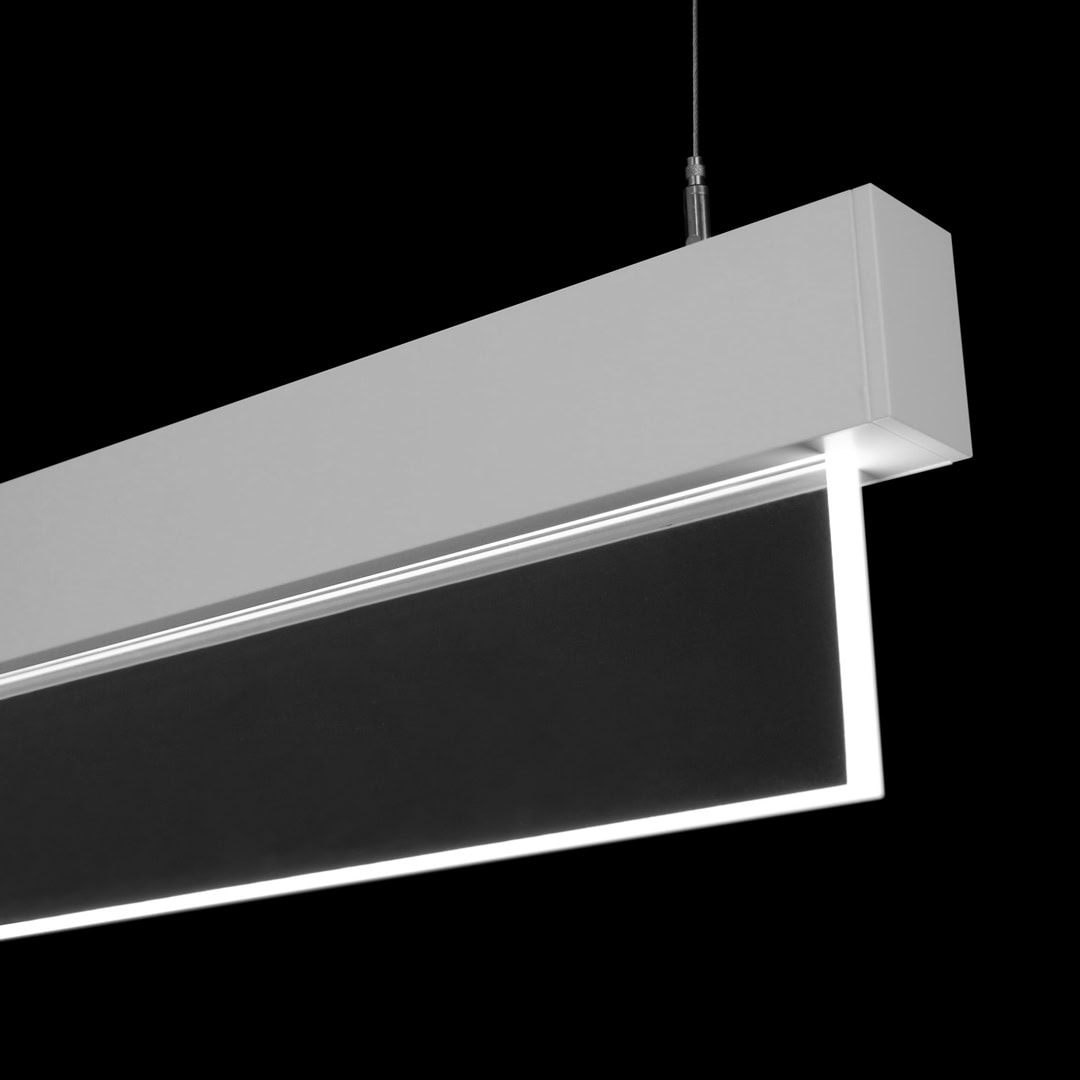

The Aleeta BC8897 is a 2” wide linear LED luminaire featuring a 1/2” wide illuminated drop lens. This decorative accent fixture can be manufactured with a clear acrylic lens with frosted edges, a completely frosted lens, or as a lens with a custom frosted pattern. It is available with lens heights of 4”, 6”, and 8” and as a suspended, recessed, or surface mount fixture.
Finishes
Performance
- Output: R: regular
- Lumens/ft.: 413
- Watts/ft.: 6
- Luminaire Lumens: 1651
- Efficacy (LPW): 69
Note: All data reflects fixtures with 3500K LEDs.
Specifications
Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and machined aluminum end caps.
Model variations offered for recessed, surface mount and cable suspended applications.
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes).
Satin anodize finish also available (may require additional lead time).
Available in nominal lengths of 2’–8’ single fixtures and continuous runs.
Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.).
Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).
Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).
Standard light output is 413 lumens per foot.
LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.
Life: 50,000 hours L70.
Limited five year warranty.
UL and C-UL listed for dry locations.
Made in U.S.A.
Product Data
Nominal Fixture Length
- 2: 24"
- 3: 36"
- 4: 48"
- 5: 60"
- 6: 72"
- 7: 84"
- 8: 96"
Correlated Color Temperature
- 27: 2700K-90+ CRI
- 30: 3000K-90+ CRI
- 35: 3500K-90+ CRI
- 40: 4000K-90+ CRI
Driver
- ND: non-dimming
- D: 0-10V, 1%
- DTR: triac, 1%, (120V ONLY)
- DLV: electronic low voltage, 1%, (120V ONLY)
- HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
- EL: eldoLED ECOdrive 0-10V, 1%
- ES: eldoLED SOLOdrive 0-10V, 0.1%
- ELD: eldoLED ECOdrive DALI, 1%
- ESD: eldoLED SOLOdrive DALI, 0.1%
Mounting
- SM: surface mount
- T1: recessed, T-grid 9/16”
- T2: recessed, T-grid 15/16”
- FT: recessed, flange trim
- TL: recessed, trimless
- C4: cable mount 4’ cable length
- C8: cable mount 8’ cable length
- CF: consult factory for custom mounting
Light Output
- R: regular – 413
Run Configuration
- SN: single
- ST: starter
- AD: adder
- TR: terminator
Lens Height
- 4: 4"
- 6: 6"
- 8: 8"
Sections
T1: T-grid 9/16”
T2: T-grid 15/16”
FT: Flange

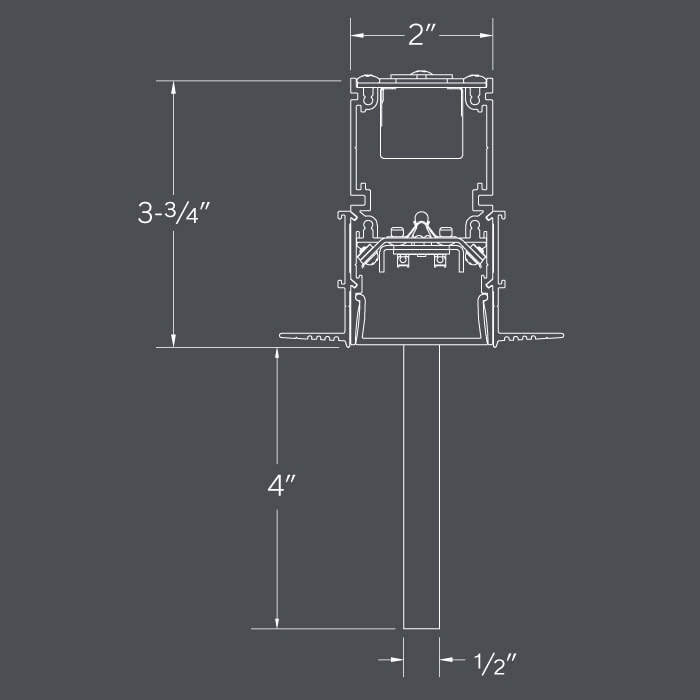

TL: Trimless
SM: Surface mount
Mounting Options
- Use appropriate fastener through Ø3/16” holes in housing
Ordering Code: SM
- 16 ga. brackets locate housing onto T-bar and allow 5/8” of vertical adjustment to accommodate various height T-bar.
- Housing secured with support wires (by others).
- Exposed flange trim in matte white finish.
Ordering Code: T1 and T2
- ¾” wide extruded aluminum trim flange in matte white finish.
- Housing secured with support wires or ¼-20 threaded rod (by others).
Ordering Code: FT
- Installs after 1/ 2” or 8” drywall.
- Housing secured with self-tapping drywall screws (by others) into blocking as required.
Ordering Code: TL
Mounting option includes:
- Ø 1/16” x 48” (C4) or 96” (C8) aircraft cables
- 60” (C4) or 108” (C8) power cable (in coordinating finish)
- Bracket bars
- Ø 5” white canopies
- Ceiling couplers
- Side exit cable grippers
Ordering Code: C4 and C8
