BODHI DIRECT/INDIRECT BSS260

3-1/4” wide direct/indirect LED luminaire

CutsheetExplore Bodhi

Downloads

BSS260

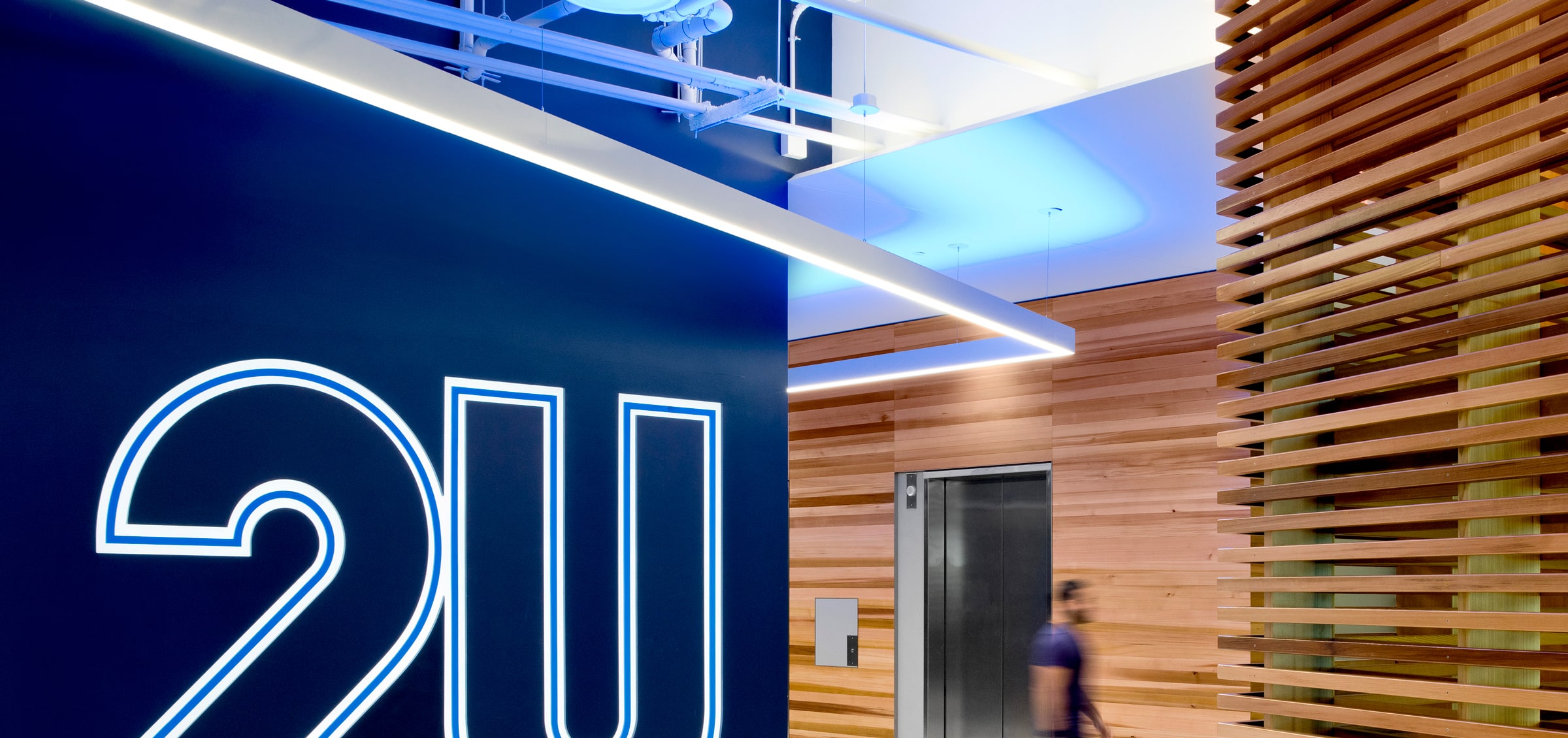

Inspiration

Features

The Bodhi series BSS260 is a rectilinear direct/indirect LED luminaire for general lighting applications. The 3-1/4” wide by 5-1/2” high extruded aluminum housing is offered for wall or cable suspended mounting. The two LED sources can be configured independently for both switching, color temperature and lumen output.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 45"
  • Watts/ft.: 16.6 (2 X 8.3)
  • Total Watts: 61.8
  • Luminaire Lumens: 6082
  • Efficacy (LPW): 98

Note: All data reflects fixtures with 3000K LEDs

Specifications

Fixture constructed of extruded aluminum housing, frosted extruded acrylic lenses and machined aluminum end caps

Model variations offered for wall mount and cable suspended applications

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8′ single fixtures and continuous runs

Continuous runs fitted with quick connects for simple, efficient wiring

Available with dual circuiting of up light and down light elements and independent Wattage/foot options

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard outputs are 5W and 8W nominal per foot, per lighting element

LEDs available in 3000K, 3500K, 4000K, 5000K, all with a typical 84-85 CRI and color consistency within a 3 step MacAdam ellipse

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-5/8”
  • 3: 33-5/8”
  • 4: 44-5/8”
  • 5: 55-5/8”
  • 6: 66-5/8”
  • 7: 77-5/8”
  • 8: 88-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 30: 3000K-84+ CRI
  • 35: 3500K-85+ CRI
  • 40: 4000K-85+ CRI
  • 50: 5000K-85+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%
  • DLV: electronic low voltage, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Watts/Foot

Direct and Indirect Light Output

  • Direct | 5: 5 W/ft.
  • Direct | 8: 8.3 W/ft.
  • Indirect | 5: 5 W/ft.
  • Indirect | 8: 8.3 W/ft.
  • CF: consult factory for custom output

Mounting

  • C4: cable mount 4' cable length
  • C8: cable mount 8' cable length
  • WM: wall mount
  • CF: consult factory for custom mounting

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Circuit

  • 1: single circuit
  • 2: dual circuit

Section

BSS260 section

Mounting Options

BSS260 cable mount
Cable Mount
  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 18 gauge x 60” (C4) or 108” (C8) SJT power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8

BSS260 wall mount
Wall Mount
  • Use appropriate fasteners through Ø3/16” holes in heay gauge mounting bracket
  • 4” H x 4” W aluminum trim collar projects the fixture housing 3/4” from the wall surface
  • Set screws

Ordering Code: WM
