GROM GRM10

1-1/8” square LED luminaire, remote driver

CutsheetExplore Grom

Downloads

GRM10

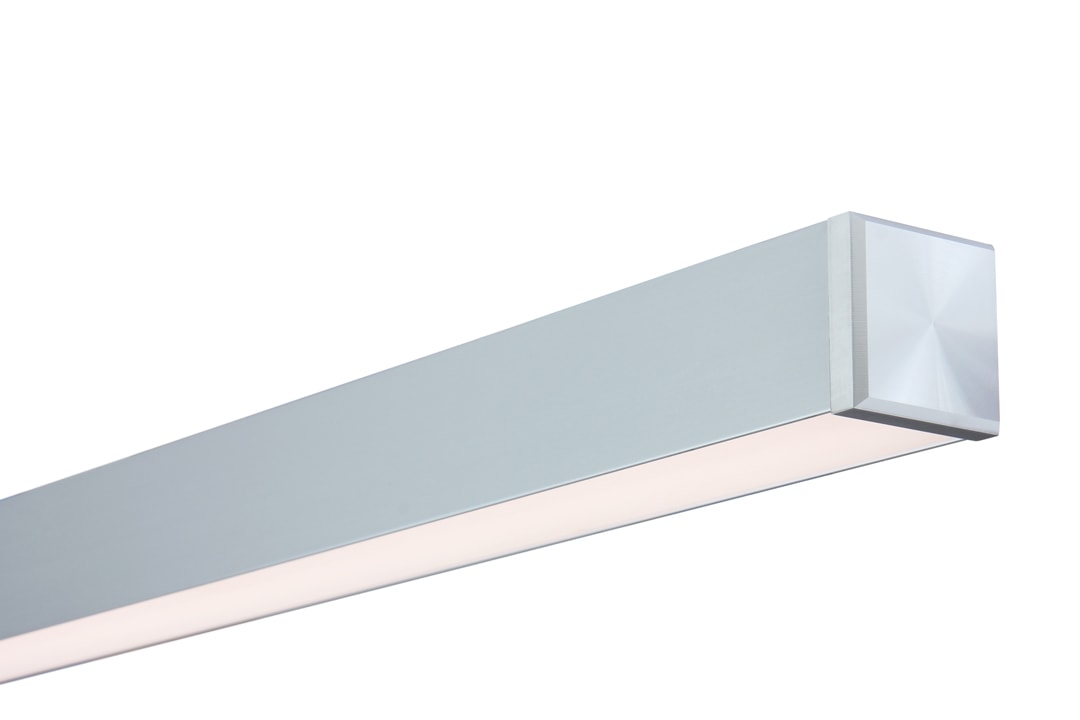

Lathe Finish
End Cap

Features

The Grom series GRM10 is a miniature, linear architectural luminaire for general lighting use. The 1-1/8” square extruded aluminum fixture is available for surface or cable mounting. Multiple remote driver options, 90+ CRI color temperatures, light outputs and finishes broaden application possibilities.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: R: regular | H: high
  • Lumens/ft.: R: 350 | H: 600
  • Watts/ft.: R: 4.3 | H: 7.9
  • Luminaire Lumens: R: 1296 | H: 2216
  • Efficacy (LPW): R: 81 | H: 76

Note: All data reflects fixture with 3500K LEDs

Specifications

Fixture constructed of an extruded aluminum housing, extruded acrylic lens and machined aluminum end caps

Model variations offered for surface and cable suspended applications

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Optional end cap with chamfered edges and lathe machined face available in mill aluminum finish

Surface mount models install with spring clips, are wired with 10’ low voltage leads and available with back or end feed options

Included standard remote 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Remote mounted emergency battery backup available (ordered separately, consult factory for details)

Standard outputs are 350 and 600 lumens per foot

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

Specify run length to the nearest 1”. Factory will configure using the least quantity of fixtures as close to the desired run length as possible. Run to be confirmed with a shop drawing.

  • 23: 22-5/8”
  • 28: 28-1/8”
  • 34: 33-5/8”
  • 39: 39-1/8”
  • 45: 44-5/8”
  • 50: 50-1/8”
  • 56: 55-5/8”
  • 61: 61-1/8”
  • 67: 66-5/8”
  • 72: 72-1/8”
  • 78: 77-5/8”
  • 83: 83-1/8”
  • 89: 88-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Note: Each fixture includes a remote driver matched for fixture length and light output

Mounting

  • S1: surface mount back feed (SN only)
  • S2: surface mount end feed (SN only)
  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • R: regular – 350
  • H: high – 600
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: flush lens

Options

  • LEC: lathe finish end cap

End cap finish is mill aluminum. Powder coating or satin anodizing will conceal the fine machined surface detail.

Section

GRM10 section illustration

Mounting Options

GRM10 surface mount - back feed illustration
SURFACE MOUNT – BACK FEED
  • Available for Single (SN) fixtures only
  • 10’ low voltage leads exiting from the fixture back at an end
  • One pair spring mounting clips for horizontal mounting (natural finish, requires #6 flat head screws by others)

Ordering Code: S1

GRM10 surface mount - end feed illustration
SURFACE MOUNT – END FEED
  • Available for Single (SN) fixtures only
  • 10’ low voltage leads exiting from the fixture end
  • One pair spring mounting clips for horizontal mounting (natural finish, requires #6 flat head screws by others)

Ordering Code: S2

GRM10 cable mount illustration
CABLE MOUNT
  • Ø 1/32”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) low voltage cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Canopy mount cable grippers

Ordering Code: C4 and C8
