BLT215

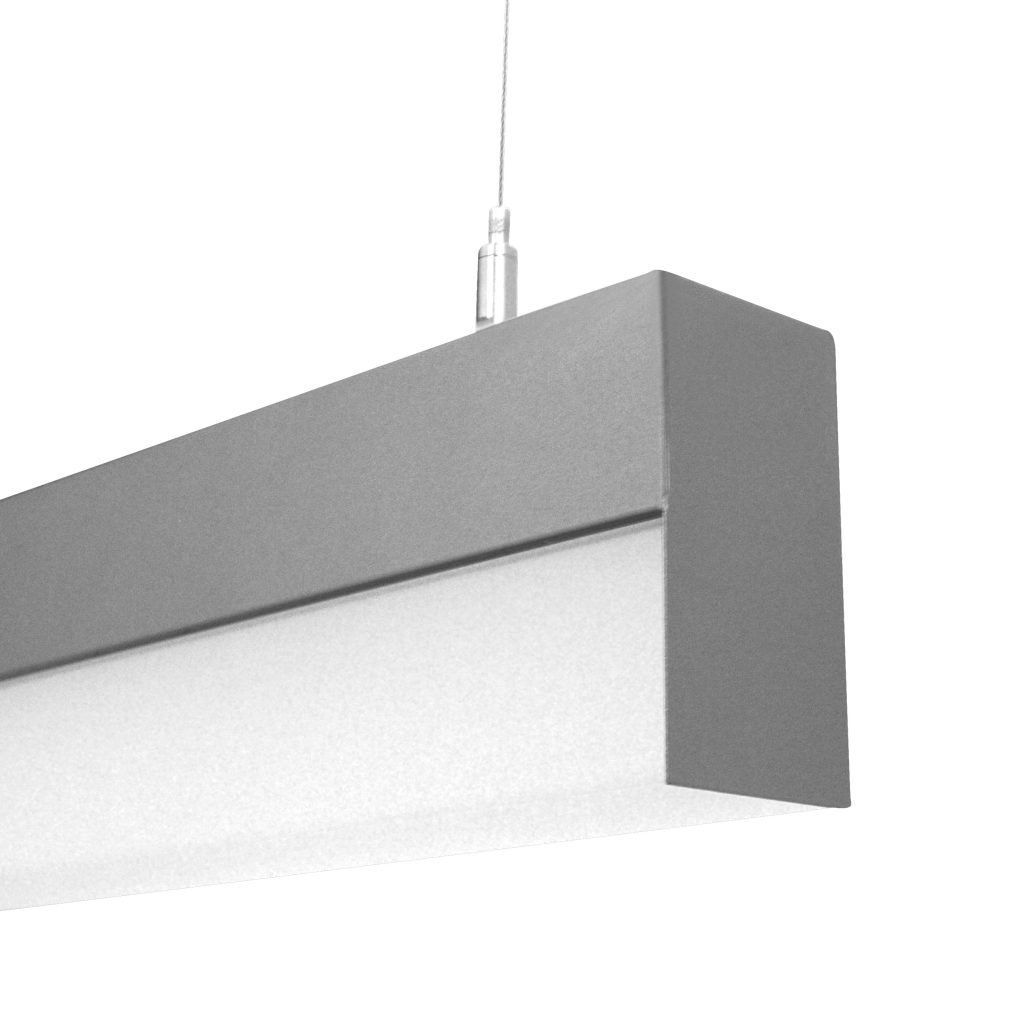

3-1/8” wide sheet steel LED luminaire with drop lens

CutsheetExplore BLT

Downloads

Features

The BLT215 luminaire provides high performance with high value. The heavy gauge, sheet formed steel housing is offered in a 3-1/8” x 4” rectangular profile with a three-sided frosted acrylic lens. Multiple driver, light output and mounting options enable this basic linear fixture to provide great versatility in applications.

Available for QuickShip.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 45"
  • Output: L: low | R: regular | H: high
  • Lumens/ft: L: 600 | R: 840 | H: 1135
  • Watts/ft: L: 5.0 | R: 7.8 | H: 11.1
  • Luminaire Lumens: L: 2177 | R: 3100 | H: 4189
  • Efficacy (LPW): L: 117 | R: 108 | H: 102

Note: All data reflects fixtures with 3500K LEDs

Specifications

Housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion

Model variations offered for surface and cable suspended applications

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available as single fixtures in nominal lengths of 2’–8’

Surface mount models include knock outs on the rear and surface or suspended models are available with optional end knock outs

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers)

Standard light outputs are 600, 840 or 1135 lumens per foot

LEDs available in 3000K, 3500K, 4000K, 5000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Passive infrared occupancy sensor available

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-5/16”
  • 3: 33-5/16”
  • 4: 44-5/16”
  • 5: 55-5/16”
  • 6: 66-5/16”
  • 7: 77-5/16”
  • 8: 88-5/16”

Correlated Color Temperature

  • 30: 3000K-80+ CRI
  • 35: 3500K-80+ CRI
  • 40: 4000K-80+ CRI
  • 50: 5000K-80+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive, 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • SM: surface mount
  • WD: wall mount direct light
  • WI: wall mount indirect light
  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 600
  • R: regular – 840
  • H: high – 1135
  • CF: consult factory

Lens

  • A: rectangular lens profile

Options

  • EK: add end knock-outs
  • ED: emergency driver (4’ nom. non-dim or 0-10V only)
  • S1A: occ sensor pos.1, 100% – 0% (see options section)
  • S1B: occ sensor pos.1, 100% – 50% (see options section)
  • S2A: occ sensor pos.2, 100% – 0% (see options section)
  • S2B: occ sensor pos.2, 100% – 50% (see options section)
  • S3A: occ sensor pos.3, 100% – 0% (see options section)
  • S3B: occ sensor pos.3, 100% – 50% (see options section)

Section

BLT215 section

Mounting Options

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

Cable Mount
  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 & C8
