HCB07

Swell hcb07

2-1/8” wide LED luminaire with drop lens, Illuminated by BIOS®

CutsheetExplore Swell

Downloads

Features

The Swell Series HCB07 is a linear LED luminaire tailored for health-centric lighting installations. The 2-1/8” wide extruded aluminum housing is fitted with a 2” tall, rectangular or rounded profile frosted acrylic lens and capped with machined aluminum end caps.

The HBC07 fixture is embedded with BIOS SkyBlue® circadian solutions to produce the healthy “blue sky” light signal needed to stimulate human circadian biology. This specific light wavelength communicates directly with human biology through a non-visual photoreceptor to regulate circadian rhythms, providing healthier sleep patterns and ultimately, better health.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Satin Anodize
SA
Satin Anodize
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: R: regular | H: high
  • Lumens/ft.: R: 830 | H: 1105
  • Watts/ft.: R: 9.6 | H: 13.2
  • Luminaire Lumens: R: 3088 | H: 4117
  • Efficacy (LPW): R: 87 | H: 84

Note: All data reflects fixture with BIOS Static Spectrum 3500K LEDs and rectangular profile and solid ends

Lens Options

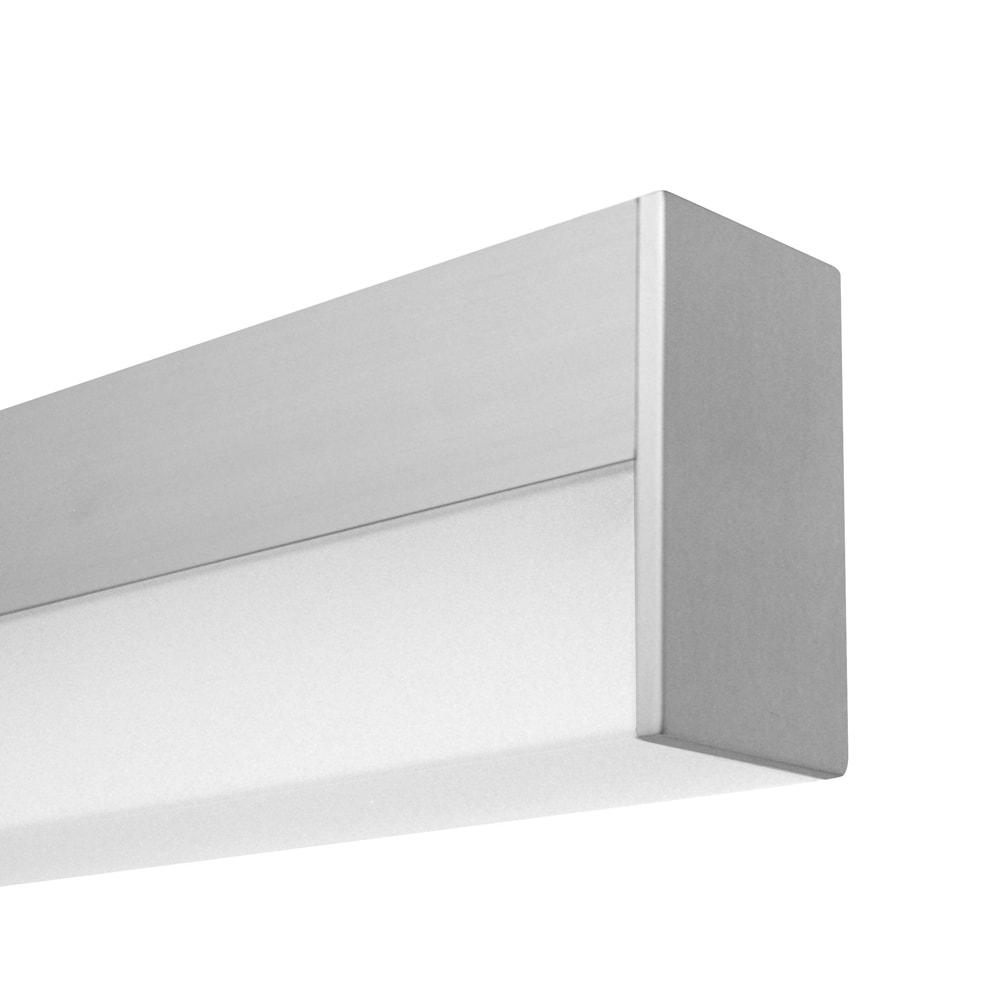

Rectangular Solid End

Rectangular profile with full height aluminum end cap

Ordering Code: A

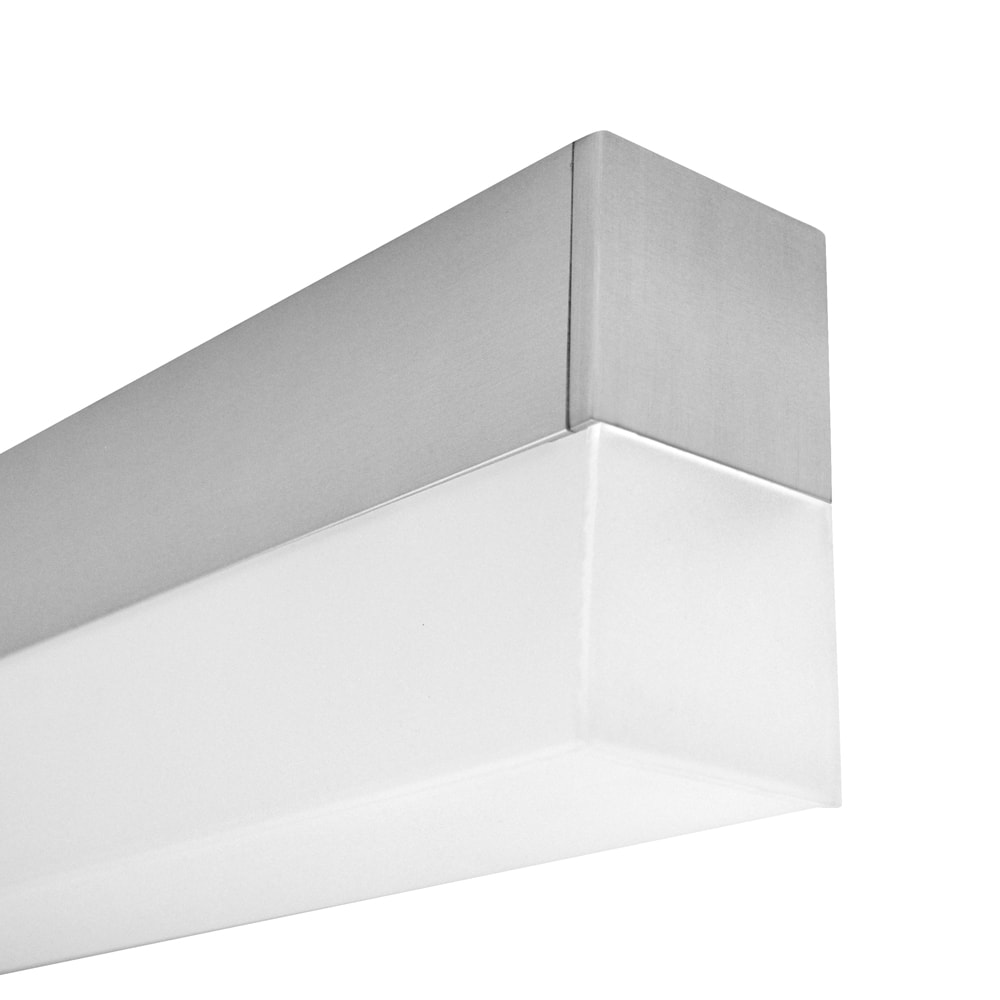

Rectangle Luminous End

Rectangular profile with aluminum end cap and frosted acrylic lens end

Ordering Code: B

BSS210

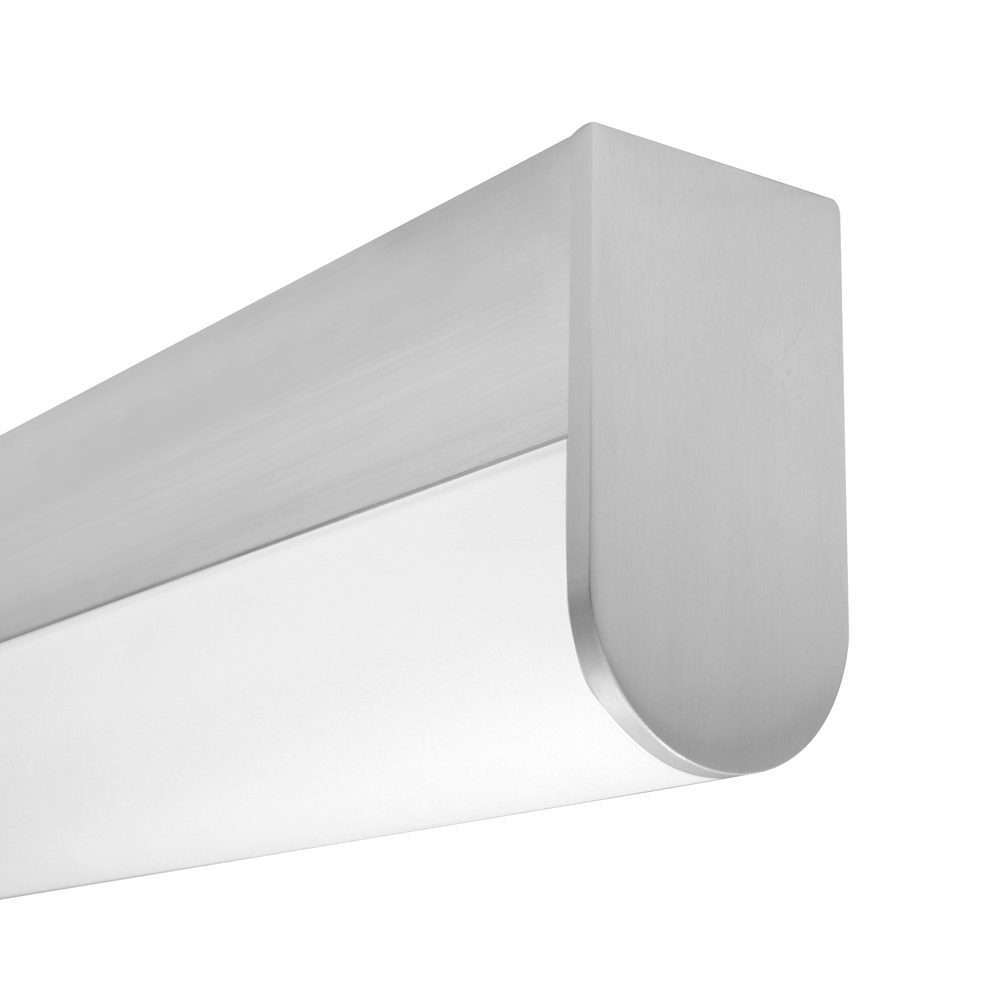

Rounded Solid End

Rounded profile with full height aluminum end cap

Ordering Code: C

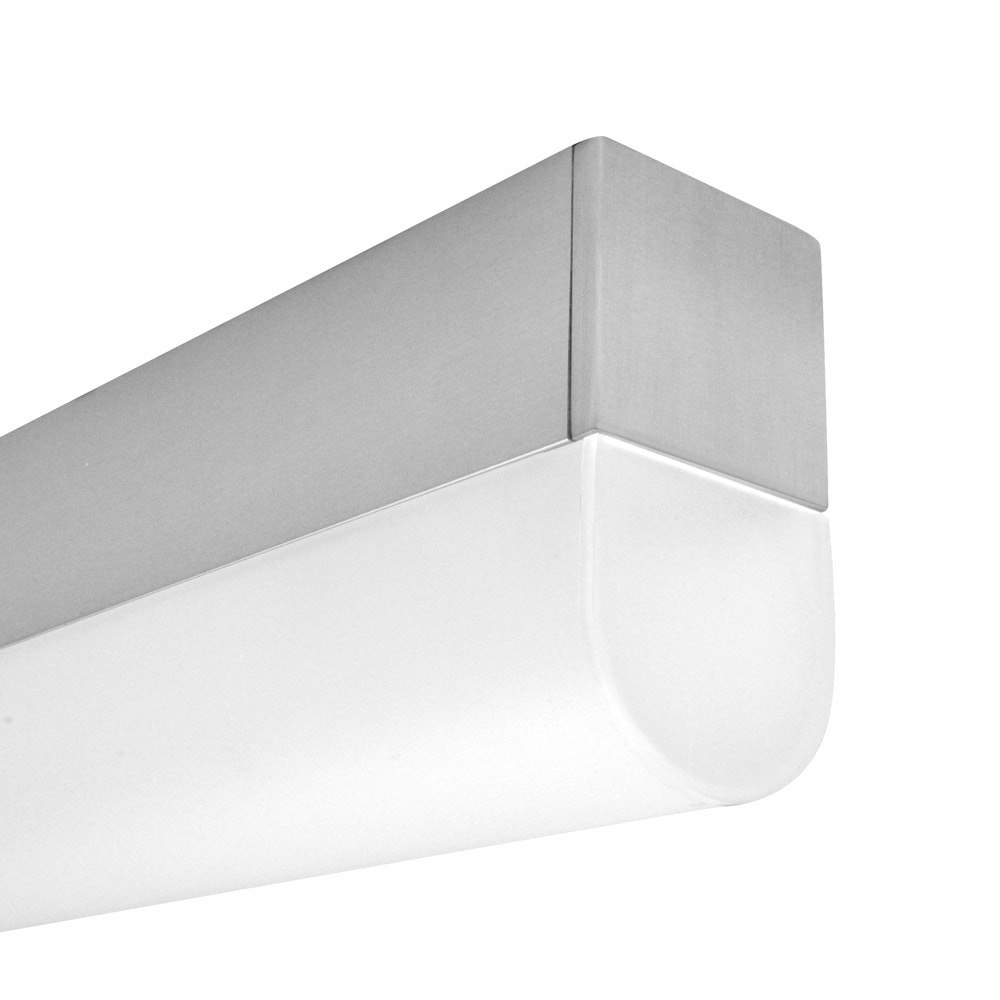

Rounded Luminous End

Rounded profile with aluminum end cap and frosted acrylic lens end

Ordering Code: D

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps

Model variations offered in rectangular or rounded profiles for surface and wall mount or cable suspended applications with solid or luminous end options

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Satin anodize finish also available (may require additional lead time)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring multiple circuits, sensor integration, etc.)

Standard integral 120-277V driver offered with 0-10V dimming or non-dim

Integral 120-277V emergency battery backup available for 4’ or 8’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers)

Standard light outputs are 830 and 1105 lumens per foot

BIOS LEDs have 80+ CRI, R9 90+ and are available in static 3000K, 3500K, 4000K and two dynamic options in 2700-3000K, 2700-3500K and 2700-4000K

Life: 50,000 hours L70

Passive infrared occupancy sensor available (FOR RECTANGULAR PROFILE ONLY)

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 22-3/4"
  • 3: 33-3/4"
  • 4: 44-3/4"
  • 5: 55-3/4"
  • 6: 66-3/4"
  • 7: 77-3/4"
  • 8: 88-3/4"

Actual dimension dependent on run configuration

Correlated Color Temperature

  • BIOS Static | BS30: 3000K
  • BIOS Static | BS35: 3500K
  • BIOS Static | BS40: 4000K
  • BIOS Dynamic | BD30: 2700K-3000K
  • BIOS Dynamic | BD35: 2700K-3500K
  • BIOS Dynamic | BD40: 2700K-4000K
  • BIOS Dynamic TW | BDTW30: 2700K-3000K
  • BIOS Dynamic TW | BDTW35: 2700K-3500K
  • BIOS Dynamic TW | BDTW40: 2700K-4000K

Driver

  • ND: non-dimming
  • D: 0-10V, 1%

Mounting

  • SM: surface mount
  • WD: wall mount – direct
  • C4: cable mount 4' cable length
  • C8: cable mount 8' cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • R: regular – 830
  • H: high – 1105
  • CF: consult factory for custom output

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: rectangular profile – solid end
  • B: rectangular profile – luminous end
  • C: rounded profile – solid end
  • D: rounded profile – luminous end

Options

‡ See options section for details

  • ED: emergency driver (4’ or 8’ non-dim or 0-10V only)
  • S1A: occ sensor pos.1, 100%–0% ‡
  • S1B: occ sensor pos.1, 100%–50% ‡
  • S2A: occ sensor pos.2, 100%–0% ‡
  • S2B: occ sensor pos.2, 100%–50% ‡
  • S3A: occ sensor pos.3, 100%–0% ‡
  • S3B: occ sensor pos.3, 100%–50% ‡

Sections

BSS210 section with rectangular profile
BSS210 section with rounded profile

Mounting Options

SURFACE MOUNT
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

WALL MOUNT – DIRECT ORIENTATION
  • 1-7/8” H x 2-1/2” W aluminum bracket projects the fixture housing 3/4” from the wall surface

Ordering Code: WD

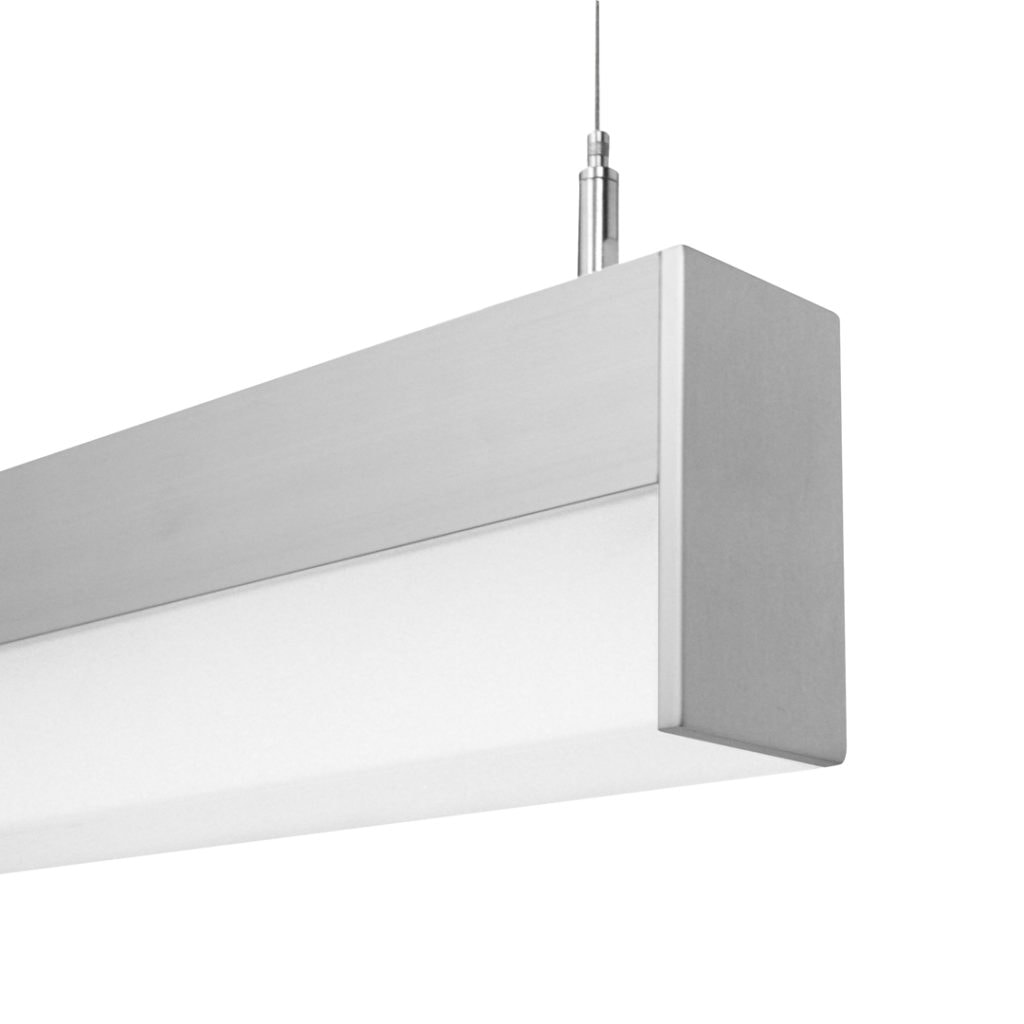

CABLE MOUNT
  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8
