FATHOM BSW210

2-1/8” wide LED luminaire with drop lens, outdoor locations

CutsheetExplore Fathom

Downloads

Features

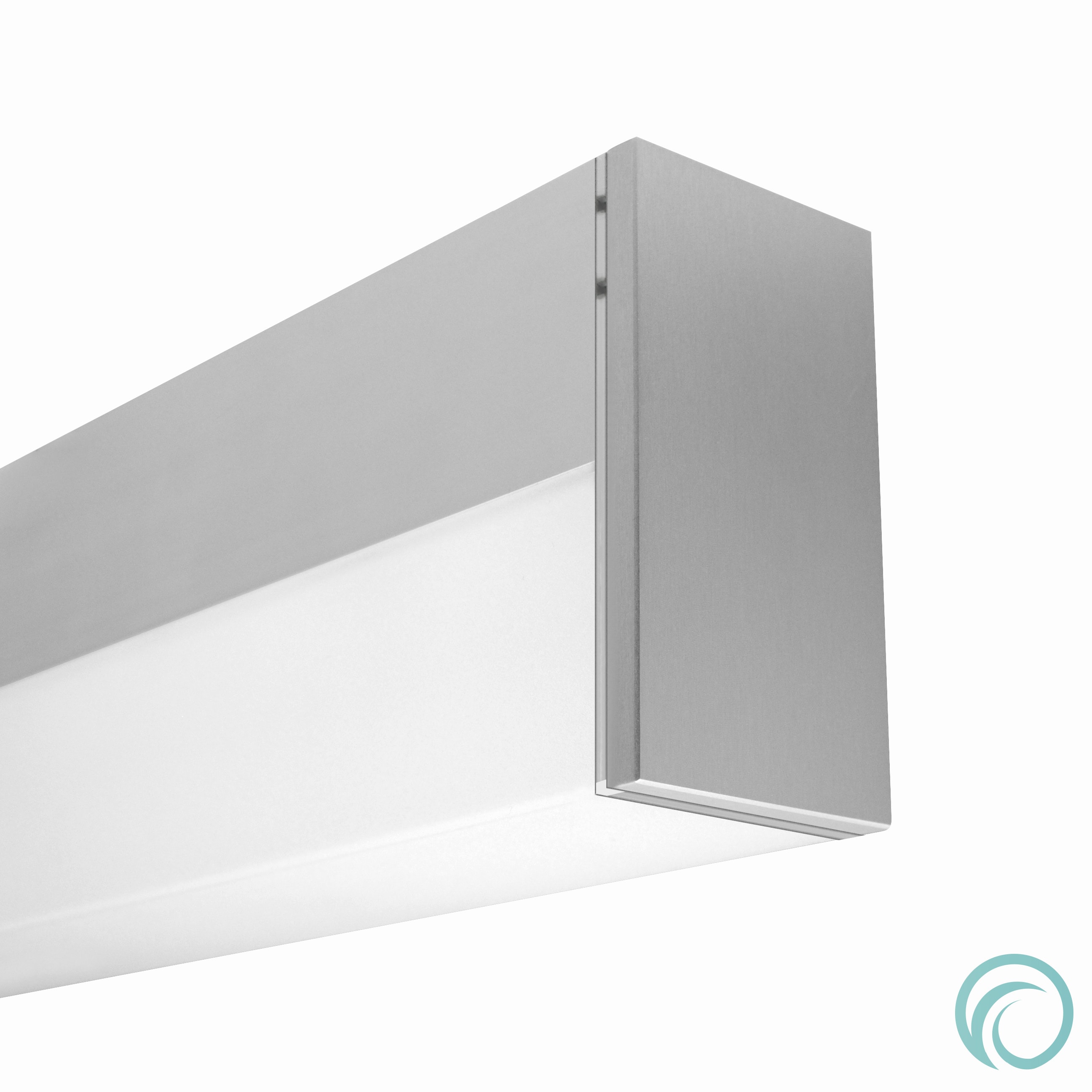

The BSW210 is a linear LED luminaire for outdoor lighting applications. The 2-1/8” wide extruded aluminum housing is capped by a 2” tall, rectangular or rounded profile frosted acrylic lens that produces a wide distribution of diffuse illumination. 1/4” thick machined aluminum end caps finish off the fixture ends.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular | H: high
  • Lumens/ft.: L: 430 | R: 860 | H: 1100
  • Watts/ft.: L: 4.0 | R: 8.0 | H: 10.2
  • Luminaire Lumens: L: 1719 | R: 3437 | H: 4384
  • Efficacy (LPW): L: 108 | R: 108 | H: 107

Note: All data reflects fixtures with 3500K LEDs and rectangular profile

Lens Options

Rectangular

Rectangular profile

Ordering Code: A

BSS210
Rounded

Rounded profile

Ordering Code: C

Specifications

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps

Model variations offered for surface mount applications with rectangular or rounded profiles

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available in nominal lengths of 2’–8’ single fixtures and continuous runs

Housing provided with a Ø7/8 hole for back feeding

Standard integral 120-277V wet location driver offered with 0-10V dimming or non-dim

Standard outputs are 430, 860 and 1100 lumens per foot

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for wet locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 2: 24-5/8”
  • 3: 36-5/8”
  • 4: 48-5/8”
  • 5: 60-5/8”
  • 6: 72-5/8”
  • 7: 84-5/8”
  • 8: 96-5/8”

Actual dimension dependent on run configuration

Correlated Color Temperature

  • 27: 2700K-80+ CRI
  • 30: 3000K-80+ CRI
  • 35: 3500K-80+ CRI
  • 40: 4000K-80+ CRI

Driver

  • IN: non-dimming
  • ID: 0-10V dimming, 5%

Mounting

  • SM: surface mount

Light Output

(lumens per foot)

  • L: low – 430
  • R: regular – 860
  • H: high – 1100

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Lens

  • A: rectangular profile
  • C: rounded profile

Sections

BSW210 section with rectangular profile
BSW210 section with rounded profile

Mounting Options

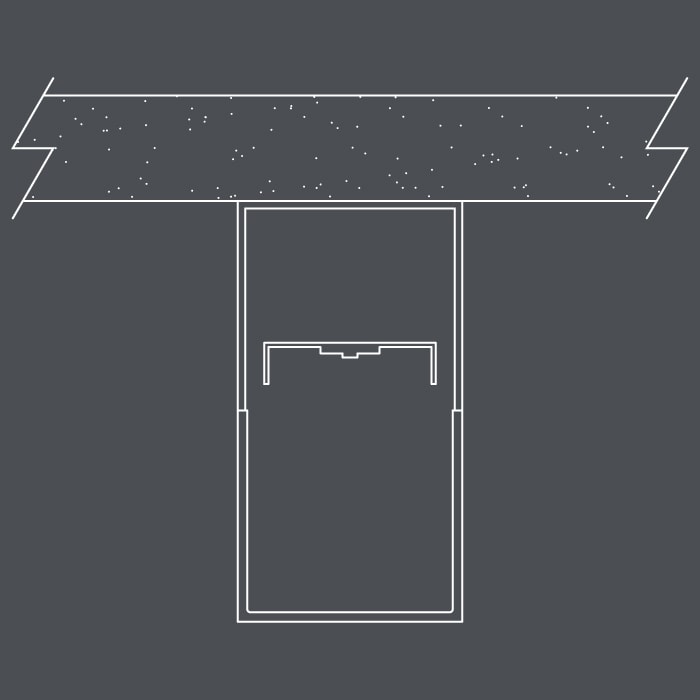

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing
  • Power entry through Ø7/8 hole on the back at an end

Ordering Code: SM
