Top mount T5




With a goal to present the bare fluorescent lamp in prominent manner, the Element series accomplishes this by elevating the lamps high above clean, small profile housings and concealing the sockets with simple, cylindrical cover. Whether surface mounted, suspended from a ceiling or recessed into a wall, the Element fixture provides a bold compliment to contemporary interiors.


Architectural White (semi-matte)
Architectural White (semi-matte)
White (semi-gloss)
White (semi-gloss)
Black (semi-matte)
Black (semi-matte)
Matte Black
Matte Black
Environmental Satin Silver
Environmental Satin Silver
Inquire about custom finishes

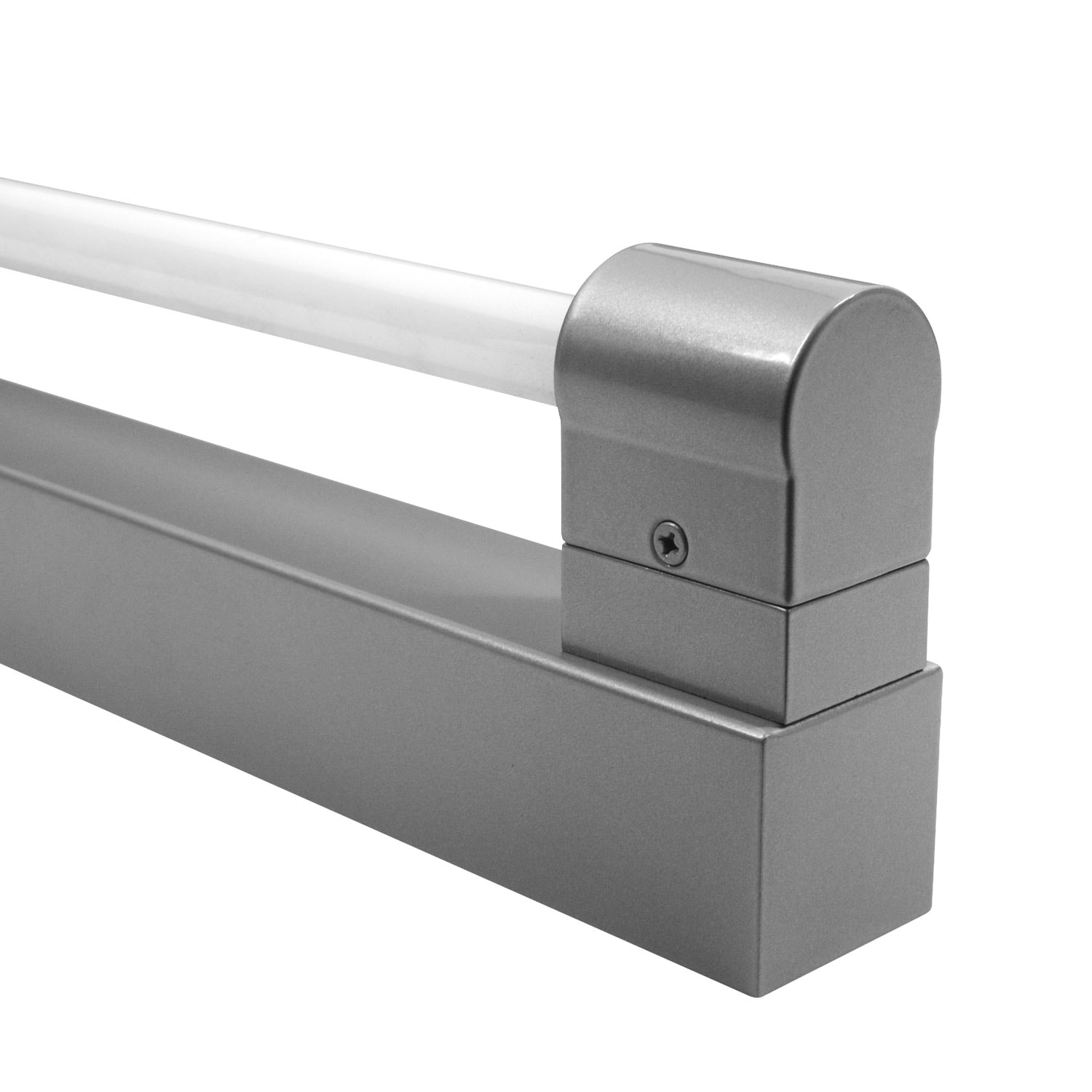

Fully assembled housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion, cast aluminum lamp standoffs and socket caps.

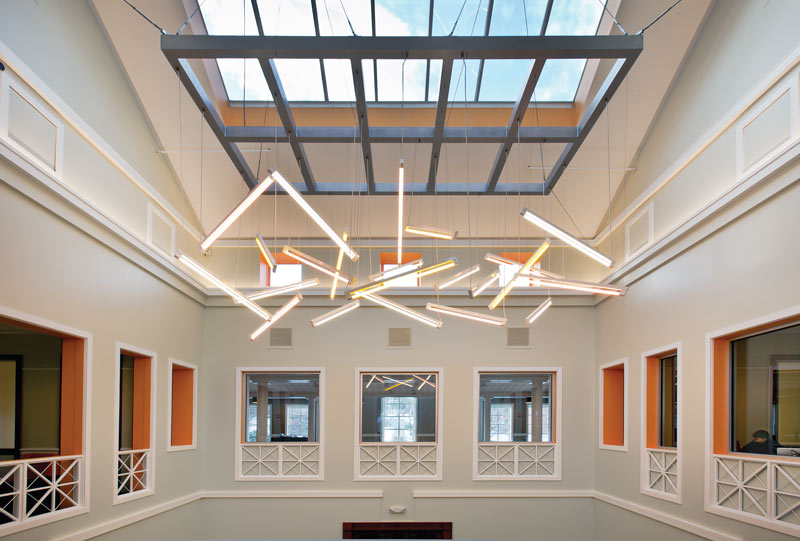

Model variations offered for surface, cable suspended and pendant mount applications

Options include perforated metal shields and extruded acrylic lenses (options must be produced with the fixture at time of manufacture)

Accessories include an aluminum louver, perforated metal lamp cover and frosted acrylic lamp tube

Available for T5 14W, 21W, 28W, 35W and high output 24W, 39W, 54W, 80W lamps in single length, some tandem lengths and continuous runs

Standard ballast is specification grade 120V-277V program start (consult factory for other voltage options)

Dimming, emergency battery backup and specialized ballast factor options available (refer to supplemental ballast details sheet for availability)

Knock outs on back of surface mount model accept standard electrical fittings by others (consult factory for other locations)

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data


  • SM: surface mount
  • CM48: cable mount 48” cable length
  • CM96: cable mount 96” cable length
  • PM18: pendant mount 18” stem length
  • PM24: pendant mount 24” stem length
  • PM30: pendant mount 30” stem length
  • CF: consult factory for custom mounting

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Mounting Options

Surface Mount
  • Use appropriate fastener through Ø3/16” holes in housing

Ordering Code: SM

Cable Mount

Mounting options include:

  • Ø 1/16”x 48” (CM48) or 96” (CM96) aircraft cables
  • 18 gauge x 60” (CM48) or 102” (CM96) SJT power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Low profile cable grippers

Ordering Code: CM48 and CM96

Pendant Mount
  • Ø 1/2” x 18” (PM18), 24” (PM24) or 30” (PM30) white steel stems
  • Bracket bars
  • Ø 5” white canopies with integrated slip ring
  • Hex nuts

Ordering Code: PM18, PM24, PM30
