Features

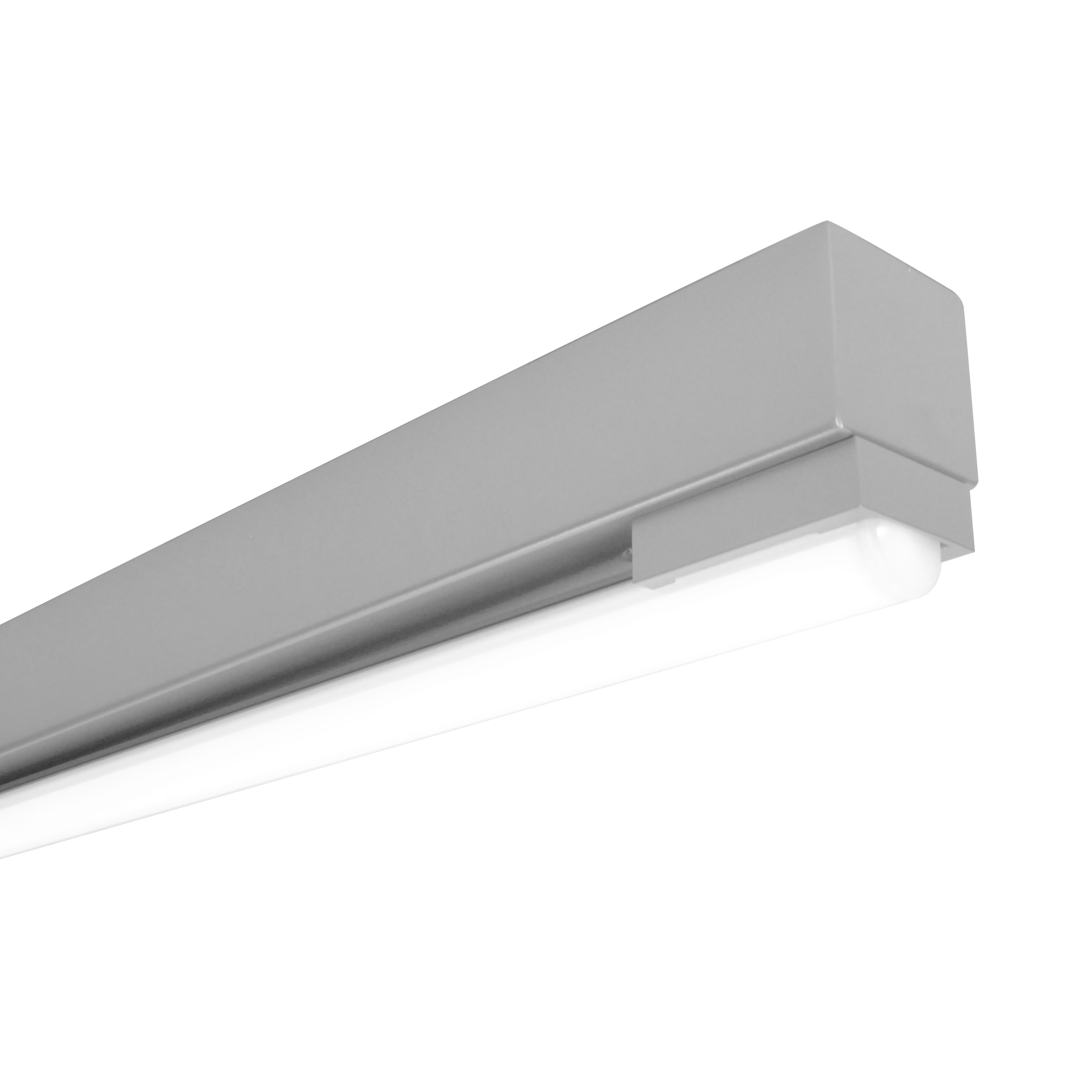

The BL6400 is a clean, sheet formed, surface mount luminaire designed to enhance the qualities of the Seamlessline LED lamp. The fixture is offered in a broad range of standard powder coat and stainless steel finishes and manufactured in 3’-8’ nominal lengths for all available sizes of the proprietary tubular LED source. The integral driver is available with non-dim or 0-10V dimming control.
Finishes









Performance
- Nominal Length: 50"
- Lumens/ft.: 412
- Watts/ft.: 5.4
- Luminaire Lumens: 1692
- Efficacy: 76
Note: All data reflects fixture with 3500K Seamlessline LED lamp
Specifications
Fixture constructed of formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion and machined aluminum lamp socket covers
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
Available for 34”, 40”, 50” and 60” nominal length Nippo Seamlessline LED lamp in single fixture, continuous run and some tandem configurations
Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum
Standard integral 120-277V driver offered with 0-10V dimming or non-dim
Integral 120-277V emergency battery backup available for non-dimming 50” and longer length fixtures
Seamlessline LED lamps ordered separately – see supplementary lamp info. sheet for details
UL and C-UL listed for dry and damp locations
Limited five year warranty
IBEW manufactured and assembled
Made in U.S.A.
Product Data

Nominal Fixture Length
- 34: 34-15/32”
- 40: 39-13/32”
- 50: 49-9/32”
- 60: 59-3/32”
- 4040: 78-13/16”
- 5050: 98-19-32”
Driver
- ND: non-dimming
- D: dimming 0-10V, 6%
Mounting
- SM: surface mount
- CF: consult factory for custom mounting
Run Configuration
- SN: single
- ST: starter
- AD: adder
- TR: terminator
Options
- ED: emergency driver (non-dimming 50” and longer fixtures)

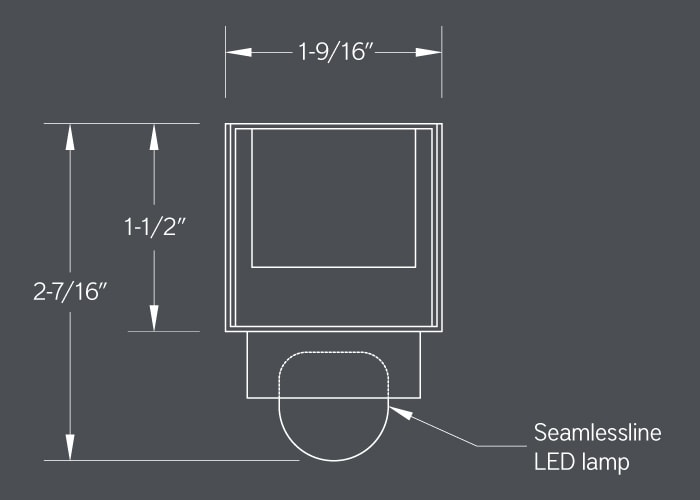

Section

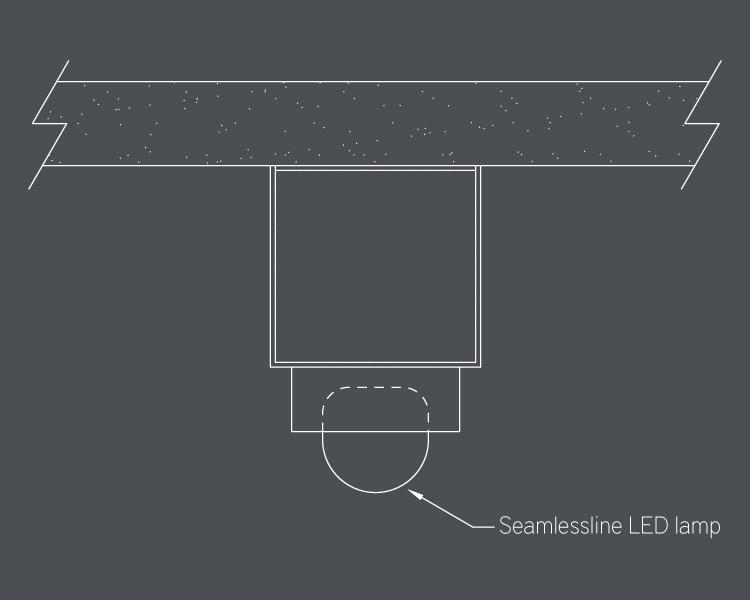

Mounting Options

- Use appropriate fastener through Ø3/16” holes in housing
- 50” and 60” lamps provided with center located stainless steel lamp clip
Ordering Code: SM
