BL6300

Cable mount luminaire for use with Seamlessline LED lamp

CutsheetExplore BL6

Downloads

Features

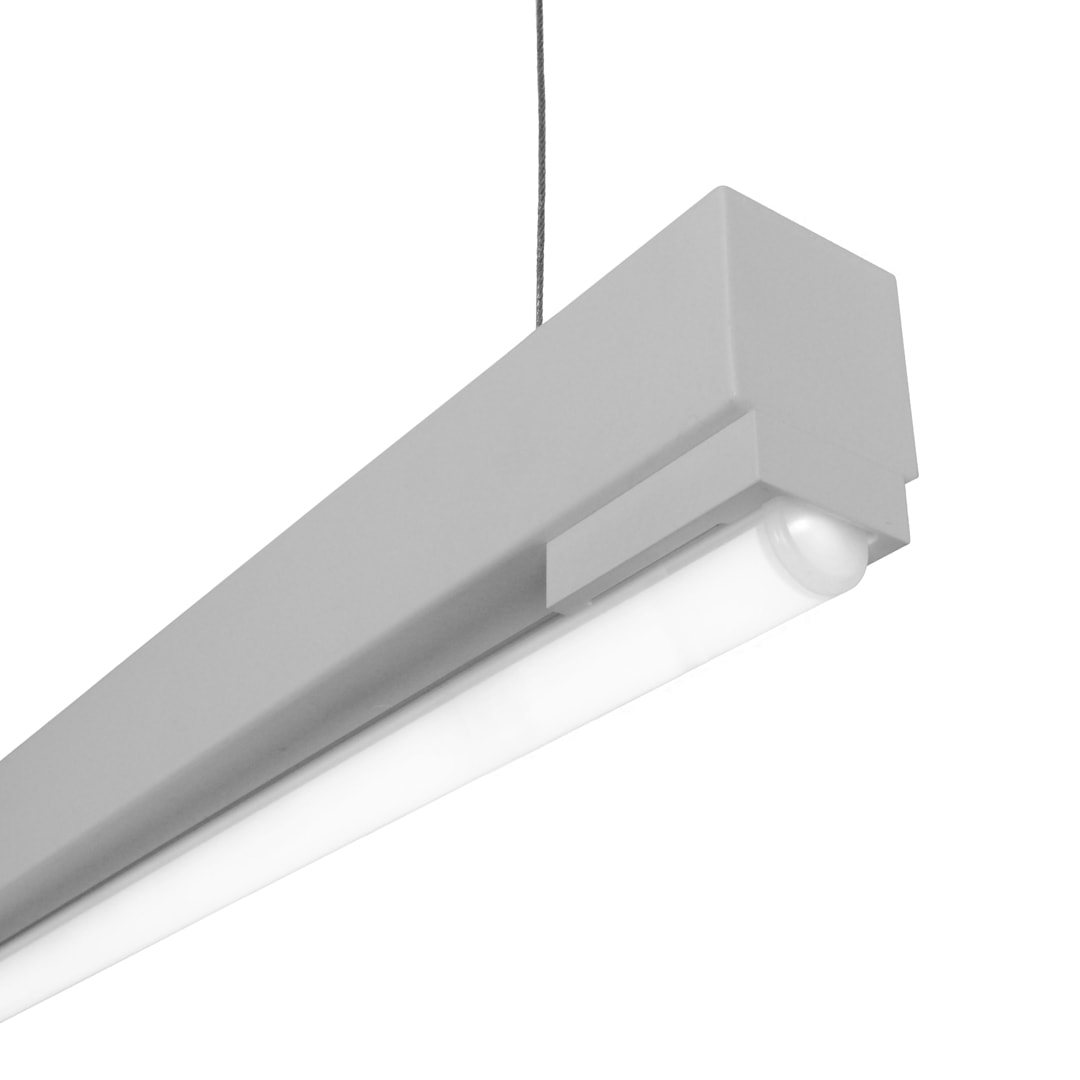

The BL6300 is a clean, sheet formed, cable mount luminaire designed to enhance the qualities of the Seamlessline LED lamp. The fixture is offered in a broad range of standard powder coat and stainless steel finishes and manufactured in 3’-8’ nominal lengths for all available sizes of the proprietary tubular LED source. The integral driver is available with non-dimming or 0-10V dimming control.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
S4
#4 Brushed Stainless Steel
S8
#8 Polished Stainless Steel
Inquire about custom finishes

Performance

  • Nominal Length: 50"
  • Lumens/ft.: 412
  • Watts/ft.: 5.4
  • Luminaire Lumens: 1692
  • Efficacy: 76

Note: All data reflects fixture with 3500K Seamlessline LED lamp

Specifications

Fixture constructed of formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion and machined aluminum lamp socket covers

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

Available for 34”, 40”, 50” and 60” nominal length Nippo Seamlessline LED lamp in single fixture, continuous run and some tandem configurations

Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum

Standard integral 120-277V driver offered with 0-10V dimming or non-dim

Integral 120-277V emergency battery backup available for non-dimming 50” and longer length fixtures

Seamlessline LED lamps ordered separately – see supplementary lamp info. sheet for details

UL and C-UL listed for insulated ceiling, dry and damp locations

Limited five year warranty

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 34: 34-15/32”
  • 40: 39-13/32”
  • 50: 49-9/32”
  • 60: 59-3/32”
  • 4040: 78-13/16”
  • 5050: 98-19/32”

Driver

  • ND: non-dimming
  • D: dimming 0-10V, 6%

Mounting

  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length
  • CF: consult factory for custom mounting

Run Configuration

  • SN: single
  • ST: starter
  • AD: adder
  • TR: terminator

Options

  • ED: emergency driver (non-dimming 50” and longer fixtures)

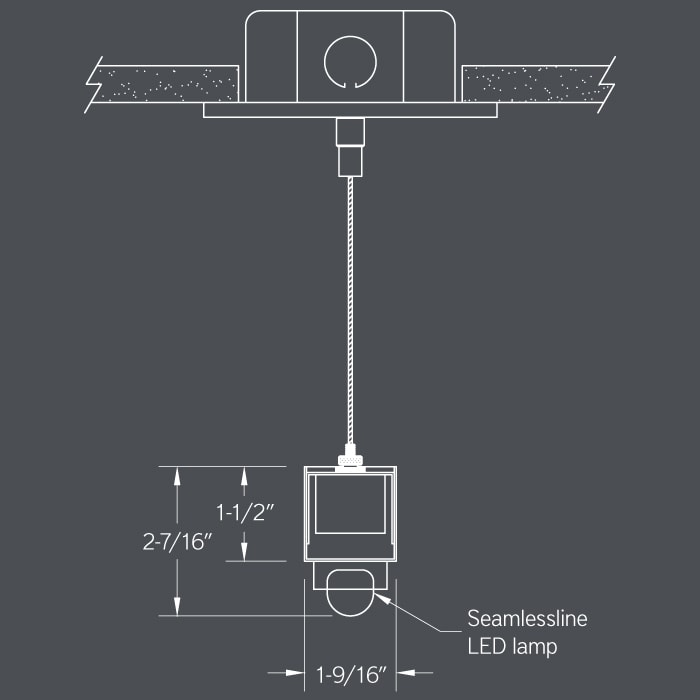

Section

BL6300 section illustration

Mounting Options

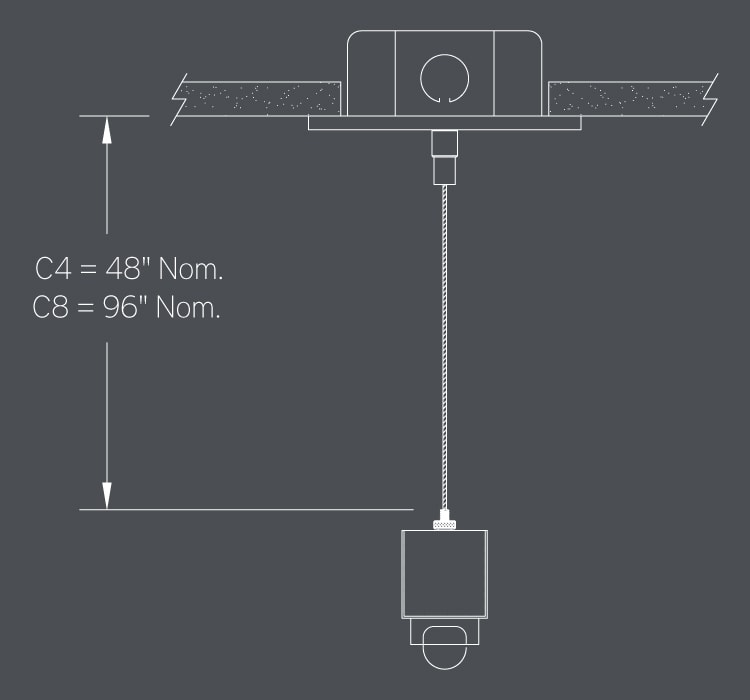

Cable Mount

Mounting options include:

  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Cable grippers

Ordering Code: C4 & C8
