Secret Menu BC8605

1-5/8” wide sheet steel LED luminaire with tubular lens

CutsheetExplore Secret Menu

Downloads

Features

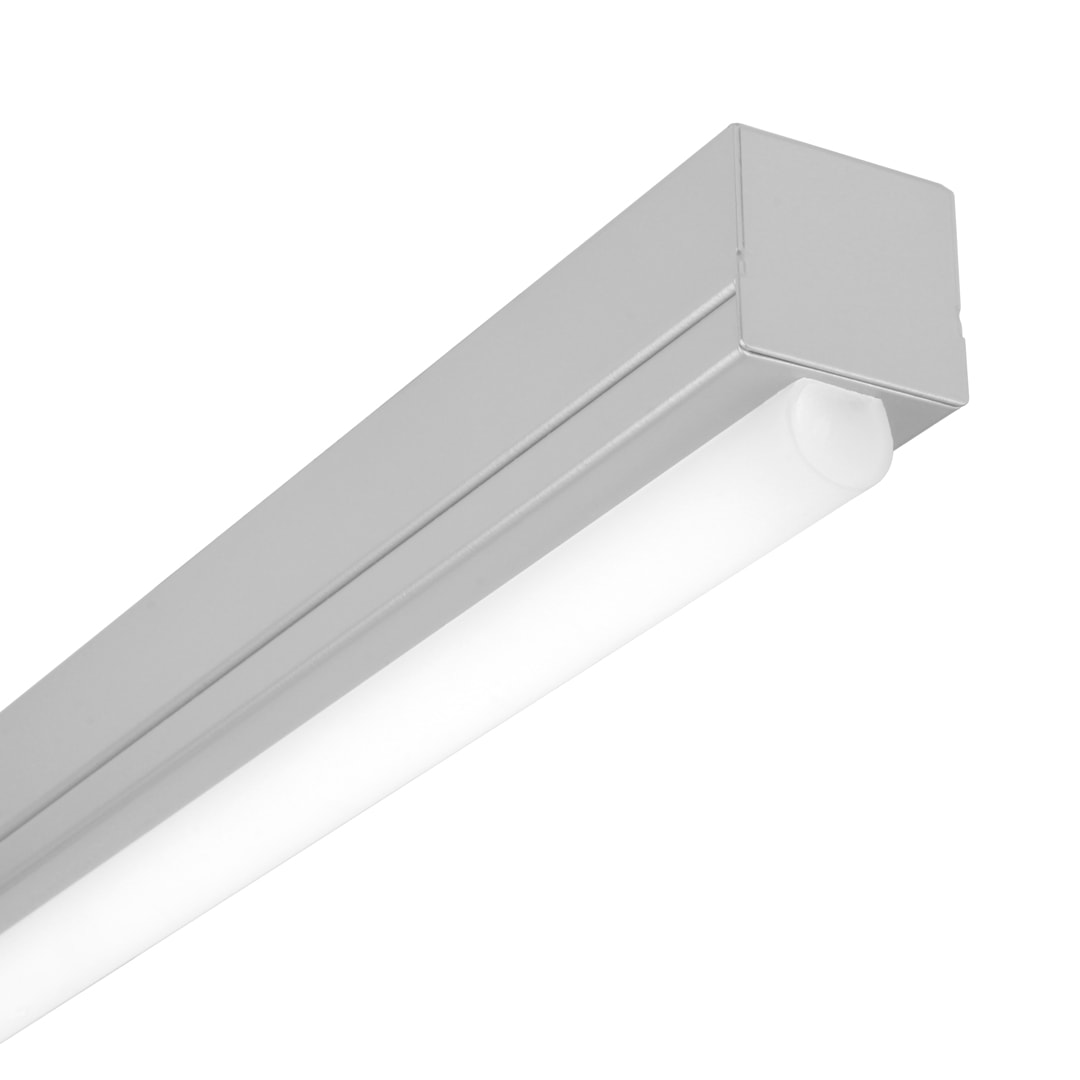

The BC8605 fixture has a familiar appearance, mimicking our iconic, clean bodied linear strips. The heavy gauge, 1-5/8” wide by 1-9/16” tall sheet formed housing is topped with a diffuse acrylic tubular lens, that recalls the form of a linear fluorescent lamp. Multiple driver and LED color/output options broaden application versatility.

Finishes

Architectural White (semi-matte)
AW
Architectural White (semi-matte)
White (semi-gloss)
WH
White (semi-gloss)
Black (semi-matte)
BL
Black (semi-matte)
Matte Black
MB
Matte Black
Environmental Satin Silver
ESS
Environmental Satin Silver
Bronze
BZ
Bronze
Primer
PR
Primer
Inquire about custom finishes

Performance

  • Nominal Length: 4'
  • Output: L: low | R: regular
  • Lumens/ft.: L: 550 | R: 750
  • Watts/ft.: L: 5.3 | R: 7.5
  • Luminaire Lumens: L: 2069 | R: 2816
  • Efficacy (LPW): L: 104 | R: 101

Note: All data reflects fixtures with 3000K LEDs

Specifications

Housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion

Tubular lens is Ø 3/4” extruded frosted acrylic with matching end caps

Model variations offered for surface mount and cable suspended applications

Standard finishes as shown below

Available as single fixtures in nominal lengths of 2’–8’

Surface mount models include knock outs on the rear and surface or suspended models are available with optional end knock outs

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)

Integral 120-277V emergency battery backup available for 45” and 89” non-dim or 0-10V (consult factory for all other lengths/drivers)

Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)

LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical

Life: 50,000 hours L70

Limited five year warranty

UL and C-UL listed for dry and damp locations

IBEW manufactured and assembled

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 23: 23"
  • 34: 34"
  • 45: 45"
  • 56: 56"
  • 67: 67"
  • 78: 78"
  • 89: 89"

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%, (120V ONLY)
  • DLV: electronic low voltage, 1%, (120V ONLY)
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • SM: surface mount
  • C4: cable mount 4' cable length
  • C8: cable mount 8' cable length
  • CF: consult factory for custom mounting

Light Output

(lumens per foot)

  • L: low – 550
  • R: regular – 750
  • CF: consult factory for custom output

Options

  • EK: add end knock-outs
  • ED: emergency driver (45" or 89" non-dim or 0-10V only)

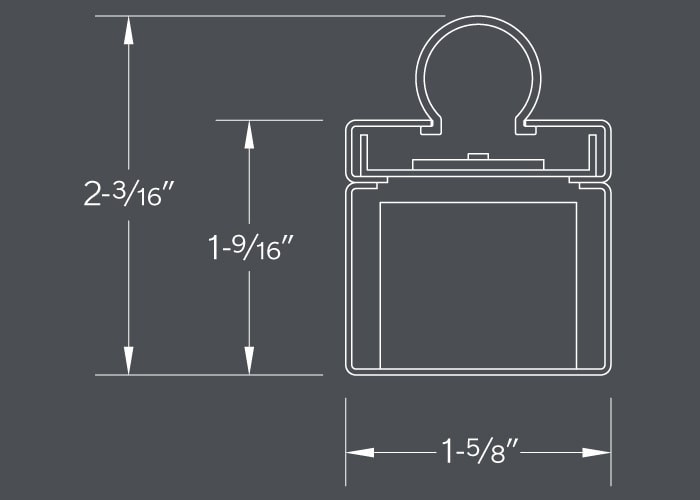

Section

Mounting Options

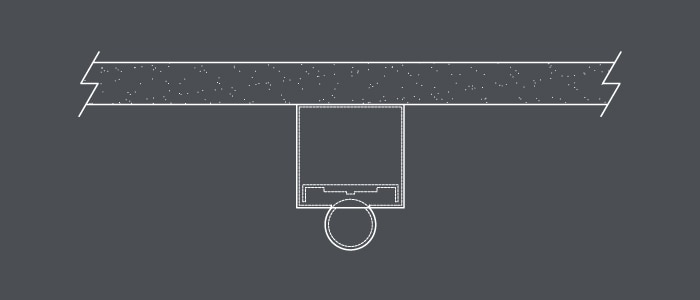

Surface Mount
  • Use appropriate fastener through Ø 3/16” holes in housing

Ordering Code: SM

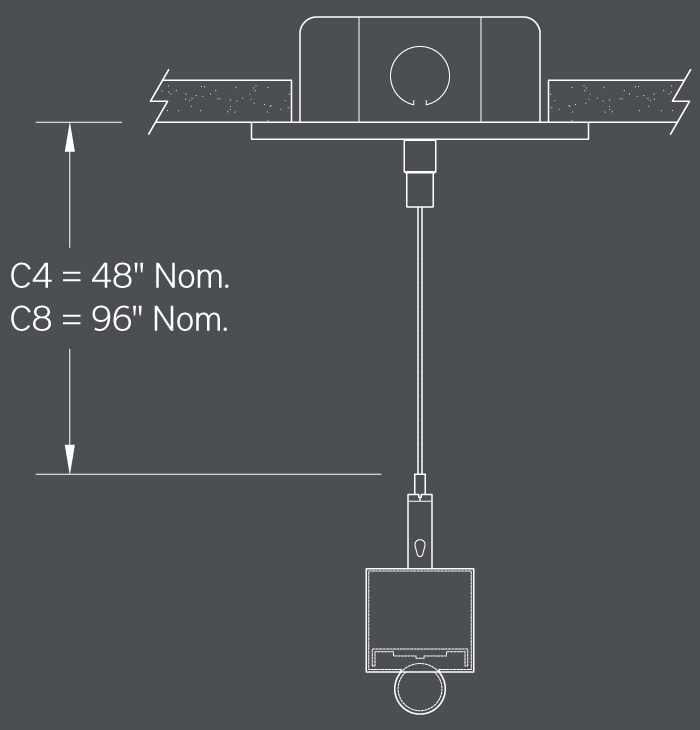

Cable Mount
  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable (in coordinating finish)
  • Bracket bars
  • Ø 5” white canopies
  • Ceiling couplers
  • Side exit cable grippers

Ordering Code: C4 and C8
